Complete security solution for your doorstep protection.

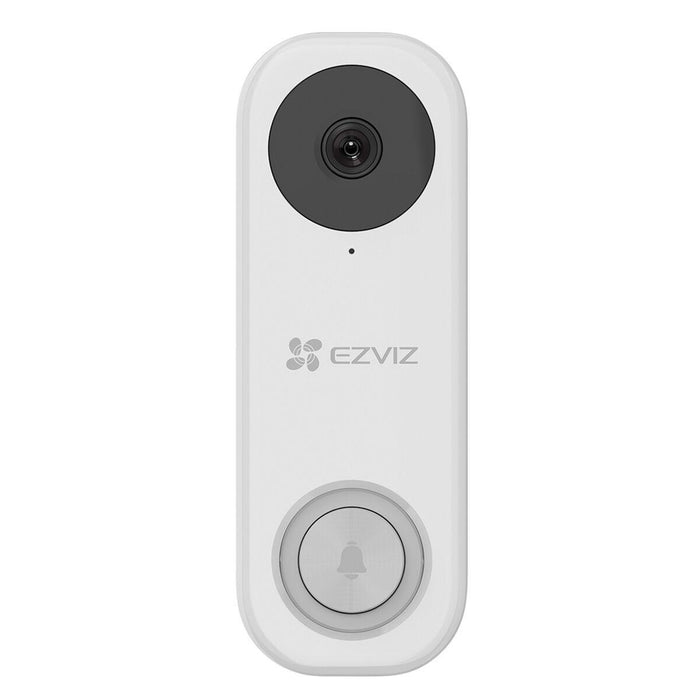

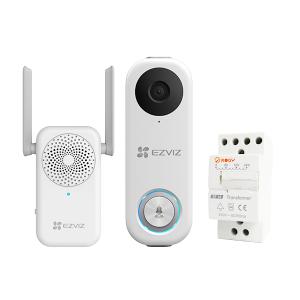

The DB1C kit comes with a Wi-Fi video doorbell, a chime, and a standard transformer in the package. Together they provide you with a full set of solution to improve your home security.


  • 1080p
  • 170° Vertical Field of View
  • AI-Powered Person Detection
  • Supports 2.4 GHz & 5 GHz Dual Band Wi-Fi
  • Đàm thoại hai chiều
  • Night Vision up to 5 m (16 ft.)
  • H.265 Video Compression
  • IP65 Dust and Water Protection
  • Supports MicroSD Card up to 256 GB


  • Multiple Notification Ringtones
  • Built-in Siren
  • EU/UK Standard Plug
  • Dual Antennas, Supports 2.4 GHz Wi-Fi


  • Rated input voltage: 230V AC
  • Rated output voltage: 8,12,24V

See every detail you need to see.

The DB1C delivers 1080p video, bringing the rich precision and extraordinary images you would expect from EZVIZ.

AI-powered person detection.

With its AI algorithm onboard, the DB1C intelligently detects a person’s movement, ensuring that you only receive notifications when people move by. You can turn off this function if you need other motion alerts such as those triggered by animals or cars.

Covers every inch, from head to toe.

Featuring a 170-degree vertical view, the DB1C reliably records everything you need to see. Even a package on the ground will be clearly captured.

Two-way talk.

When the EZVIZ App notifies you of a visitor at the front door, you can see and talk to the person right away, and from wherever you are.

Dual-band Wi-Fi connectivity.

Not all video doorbells support dual-band connectivity. The DB1C does, and it gives you the flexibility to choose between 2.4 or 5 GHz connections for optimal performance on your network.

H.265 video technology.

The DB1C doorbell features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the previous video compression standard (H.264).

Fearless in any weather.

Rated with IP65 protection, the DB1C doorbell works reliably in rain, sleet or snow, bringing you peace of mind throughout the year.

Included chime keeps you in-the-know.

This chime rings at up to 72 decibels within a three-meter radius and it comes equipped with 20 pleasant ringtones to choose from. You never miss a visit at home even without your phone. Or, mute the chime when you don’t want to be disturbed.

Standard transformer included.

Converting the 230 VAC input voltage to a smooth 8, 12, or 24 VAC regulated output voltage, this Standard Transformer provides a constant power supply to ensure your DB1C doorbell works correctly and safely.

*Warning: For your safety, it is recommended that you ask a licensed electrician to install the transformer.

We protect your data and privacy.

Protecting your data and privacy is our highest priority. Data transmission between the device and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.

  • AES 128-bit encryption
  • TLS encryption protocol
  • Multiple authentication steps

Two storage solutions.

With two storage options, you can choose where to save your recordings. With the DB1C kit, you can save videos to two locations at the same time for added backup in case the doorbell is damaged, or your network crashes.

Supports MicroSD Cards*

Encrypted Cloud Storage

*The microSD Card is not included. Cloud storage service is only available in certain markets. Please check before purchasing.

Security at your fingertips.

With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.

  • Live View
  • Audio Reception
  • Instant Alerts
  • Video History
  • Up to 8x Zoom
  • Smart Home Enabled
Model CS-DB1C-A1-1E2W2FR
Image Sensor 1/2.4" Progressive Scan CMOS
Lens 2.1 mm @ F2.4, view angle: 170° (Vertical)
Day & Night IR-cut filter with auto-switching
Night Vision Max. 5 m (16.4 ft.)
Max. Resolution 1536 x 1536
WDR Digital WDR
Video Compression H.265 / H.264
Frame Rate Max: 15 fps; Self-adaptive during network transmission
Storage H.264 / H.265
Audio Input Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Output Built-in high-power speaker
Reset button Yes
Intelligent Alarm Motion detection (with person-shape detection)
Video Intercom Long-distance video two-way talk
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Wireless IEEE802. 11a/b/g/n, 2.4 and 5 GHz dual bands
Channel Bandwidth Supports 20 MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Working Temperature -10 °C to 45 °C (14 °F to 113 °F )
Working Humidity 95% or less (non-condensing)
Power Supply AC 12 V to 24 V (220 mAh backup battery)
IP Grade IP65
Weight 102 g (3.60 oz)
Dimensions 128.3 x 46.3 x 19.3 mm (5.05 x 1.82 x 0.76 inch)
Packaging Dimensions 172.5 x 102 x 97 mm (6.79 x 4.02 x 3.82 inch)
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Storage No
Wired Network Does not support
Power Supply Interface EU/UK Standard Plug
Wi-Fi Standard IEEE802.11b / g / n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps
Antennas Dual External Antennas
Operating Conditions Temperature: -10 °C to 40 °C (14 °F to 104 °F ), Humidity: 95 % or less (non-condensing)
Power Supply 100V - 220V AC
Power Consumption Max 0.6 W
Dimension 100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch)
Weight 120 g (4.23 oz)
Model CS-CMT-A0-Transformer
Technical Data
Rated Input Voltage 230V AC
Rated Output Voltage 8V, 12V, 24V AC
Rated Frequency 50Hz
Rated Power Output 8V: 10VA; 12V: 20VA; 24V: 30VA
Power Consumption 1.15W
Service Period Continuous operating
Connection Terminals Pillar terminal with clamp
Connection Capacity Rigid conductor 10mm²
Installation On symmetrical DIN rail 35mm panel mounting
Terminal Connection Height H=15.5mm
Operating Conditions -5°C to 40°C (23°F to 104°F), Humidity 95% or less
Dimensions 35.3 x 86 x 68 mm (1.40 x 3.39 x 2.68 inch)
Net Weight 323 g (11.4 oz)
In the box
In the box: - Doorbell
- Chime
- Standard Transformer
- Mounting Plate × 2
- Plate Foam
- Power Kit
- Drill Bit
- Screwdriver
- Mounting Screw × 3
- Anchor × 3
- Wire connecter × 4
- Security Screw
- Fixing Screw × 2
- Wire Harness
- Fuse Wire
- U-shaped Wire × 2
- Quick Start Guide
Certifications: UL / FCC / CE / WEEE / REACH / RoHS
