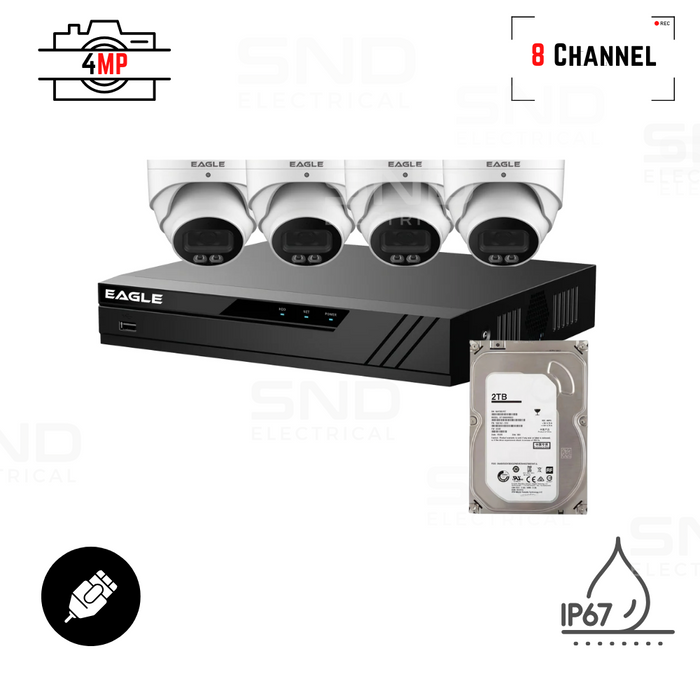

Eagle 4MP IP Full-Colour CCTV Kit White

Eagle 4MP IP Full-Colour CCTV

8 Channel Penta-brid 5M-N/1080p Compact 1U 1HDD WizSense Digital Video Recorder
4MP Full-Colour Fixed Network Turrets

4MP Full-Colour Fixed Network Turrets

With upgraded H.265 encoding technology, this network camera features efficient video encoding capabilities, saving bandwidth and storage space. This camera utilizes the latest full-color technology and displays high-quality color images in low illumination. It supports SD card storage, dust-proof function, waterproof function, and vandal-proof function, complying with the standards of IP67.

· 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP
(2688 × 1520) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in warm lights, max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene changing, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection.
· Built-in Mic
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power supply
· IP67 protection
Smart Codec Full-colour WDR IVS DH-XVR5108HS-I3

WDR: With advanced Wide Dynamic Range (WDR) technology, this network camera provides clear details in the environment of strong brightness contrast. The bright and dark areas can get clear video even in a high-brightness environment or with backlight shadow.

IVS: With an advanced video algorithm, IVS technology supports intelligent functions, such as tripwire and intrusion.

8 Channel Penta-brid 5M-N/1080p Compact 1U 1HDD WizSense Digital Video Recorder

This AI network video recorder is a highly cost-effective economical product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, and remote management and control. This product is suitable for face detection and recognition at entrances/exits, and perimeter protection of people and vehicles.

· H.265+/H.265 dual-stream video compression
· Supports Full-channel AI-Coding
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 12 channels IP camera inputs, each channel up to 6MP; Max
64 Mbps incoming bandwidth
· Up to 1 channel video stream ( analog channel ) Perimeter Protection
· Up to 8 channels video stream ( analog channel ) SMD Plus
· Up to 1 channel video stream (analog channel ) human face recognition
· IoT & POS functionality

New User Interface: Local and web interfaces adopt the new UI 4.0 style which caters to users habits. Functional modules are divided more clearly and easier to understand.

Decoding (Smart H.265+/Smart H.264+) Smart encoding (H.265+/ H.264+): is the optimized implementation of (H.265/H.264) codec that uses a scene-adaptive code rate control algorithm, providing more efficiency in the encoding process and higher video quality, and reducing the cost of storage and transmission significantly. This NVR supports the corresponding decoding.

SMD Plus: SMD Plus, referred to as Smart Motion Detection Plus, is an upgraded version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm. It analyzes person and vehicle shapes based on motion detection and sends alarms only when person or vehicle intrudes.

Face Detection: Face detection detects if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.

Face Recognition: Face recognition is to analyse out the captured face with target features, and compare them with the face database

Perimeter Protection: Based on deep learning algorithms, perimeter protection provides accurate human and vehicle classification detection. It greatly reduces false alarms by smartly detecting behaviors such as tripwire and intrusion according to the detected object in restricted areas (e.g., for people or vehicles).
