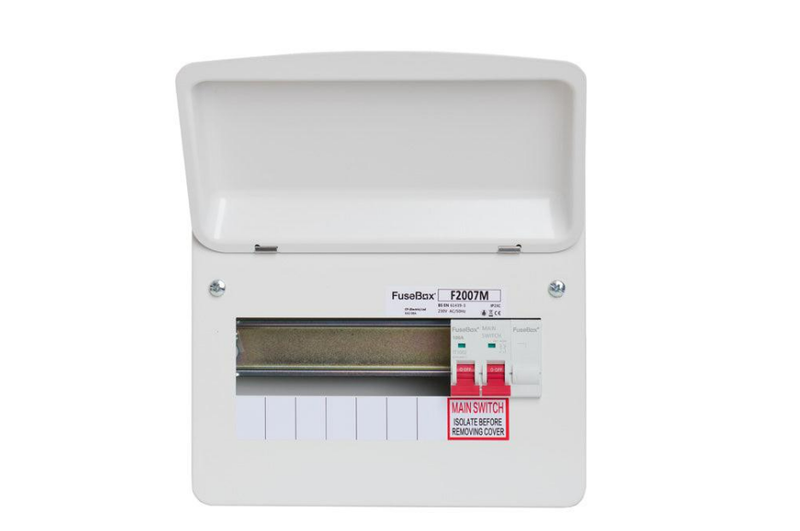

FuseBox 100A Main SWITCH 7 WAY

by FuseBox
SKU F2007M
Original price £32.95 - Original price £32.95
Original price
£32.95 - £32.95
Current price £32.95

The F2007M 7 way Fusebox Consumer Unit is an AMD3 compliant robust metal fuse box which is finished in a smooth white with conduit knockouts on all planes and large knockouts to the rear. A removeable key slot din rail together with earth and neutral terminal bars positioned at the top ensure a quick and easy installation. Blanks and circuit identification labels are supplied with every Fusebox board.

The fusebox F2007M main switch consumer unit features 7 usable ways and comes with 100A Main Switch Incomer and a 32mm tails clamp. You also have space to fit a surge protection device too.

As with all of the FuseBox boards, the F2007M has more than enough space  for installation of both the mini and standard height RCBO.

Additional features include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

  • Supplied with a 100A Main Switch, busbar & din rail
  • Space for SPD device available
  • Captive Screws now standard on the front cover
  • Grommet Strip included
  • Amendment 3 non-combustible, metal enclosure
  • Self closing lid
