Eaton I-ON10-K Wired 10 Zone Alarm Panel with LCD Keypad

Eaton I-ON10-K Wired 10 Zone Alarm Panel with Wired LCD Keypad

The i-on10 is a 10 zone, bells-only (audible alarm) wired intruder alarm panel. It is suitable for simple, entry-level burglar alarm systems to protect homes and small commercial installations.

Successor to the popular Scantronic 9651 series panel, it has the benefit of two additional zones and simplified keypad options over its predecessor. It is simple to operate and contains basic features such as enabling the system to be set and unset with codes or proximity tags.

The panel is simple to program sharing the same features as all i-on panels, plus it comes with 5 preconfigured zones, just connect the devices and you are ready to test.

5 reasons to rely on an i-on10 security system (Features)

There are more than ¼ million domestic burglaries in the UK every year. 63% of the affected properties do not have even a basic security system.

Simple, proven technology - The i-on10 is a Grade 2 hard-wired system that doesn’t need apps or the internet to function. The system is EN50131 compliant and the result of decades of Eaton experience in electrical design.

Multiple applications - With 10 zones, up to 10 users and four keypads, the i-on10 is easily configured for domestic settings or smaller commercial premises, including shops, bars and restaurants. One simple security system, many business opportunities

Easy installation - No degree in computer programming required! Just follow the step-by-step instructions using the keypad, and you are all set.

Flexible configuration - The Eaton i-on10 has four setting modes that offer flexibility in configuring the alarm and isolating specific areas when required. It is also compatible with a wide range of peripherals and devices, including loudspeakers.

Foolproof operation - No repeat callouts from confused owners thanks to the simple ‘set/unset code’ function and proximity tags. Just fit and forget.

Meet homeowners demands with up to four keypads

Making a house a home means everyone has different ways of securing their property.

With the i-on10, the performance bus enables installers to fit up to 4 keypads ensuring that the customer can have the arrangement best for their home.

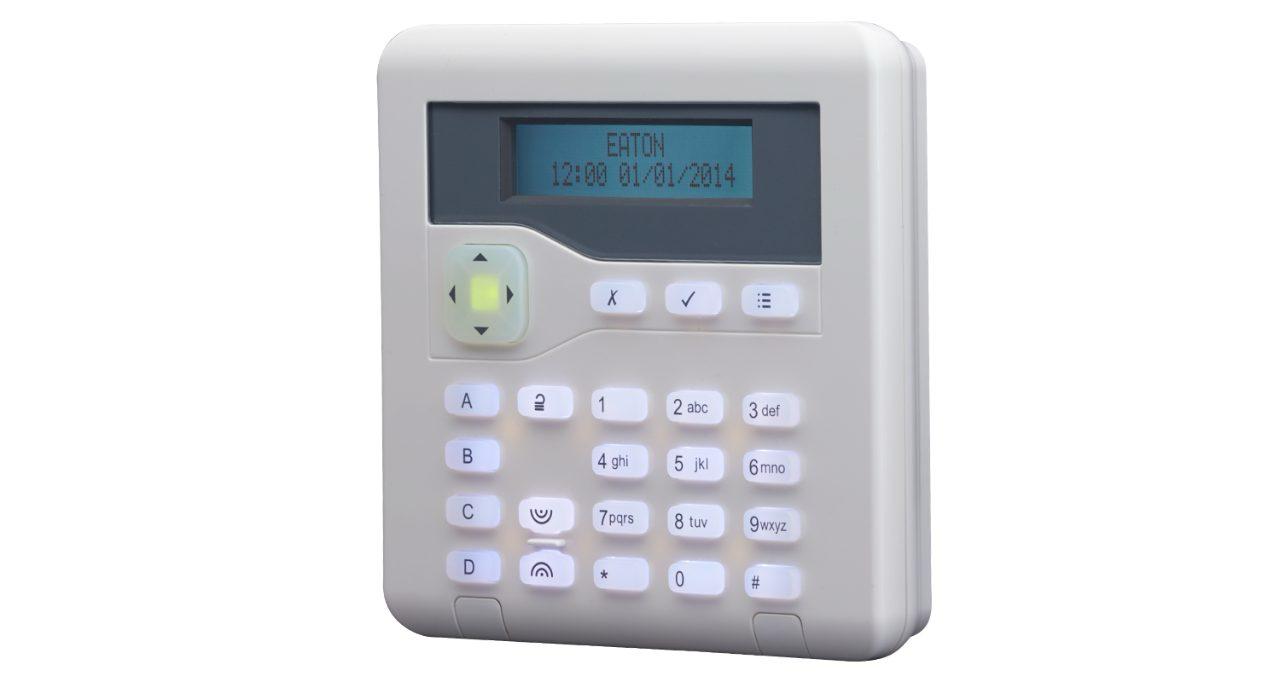

For the i-on10 there is the choice of two keypads: KEY-K01; a standard LCD Keypad and KEY-KP01; a LCD Proximity Keypad.

Specifications

Compliance - EN50131 PD6662:2017 Grade 2

EN50131 Grade - 2

Zones on board - 10

Total zone capacity - 10

Total number of buses - 1

Number of users - 10

Number of outputs - 1 system plus 12 communicators

Total number of buses - 1

Power supply - 1A

Battery - 1*7Ah

Size - 239mm (h) x 250mm (w) x 90mm (d)

Weight - 2.8kg - panel without battery

Temperature range - Environmental class 2 -10°C to 55°C 93% RH
