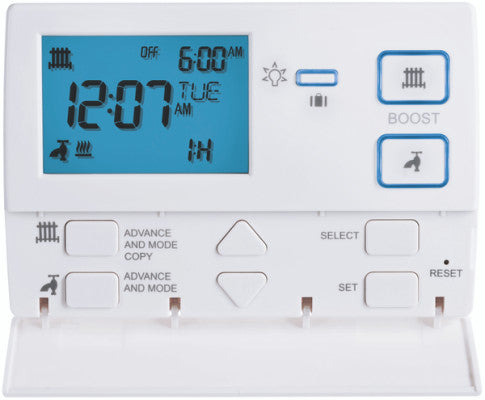

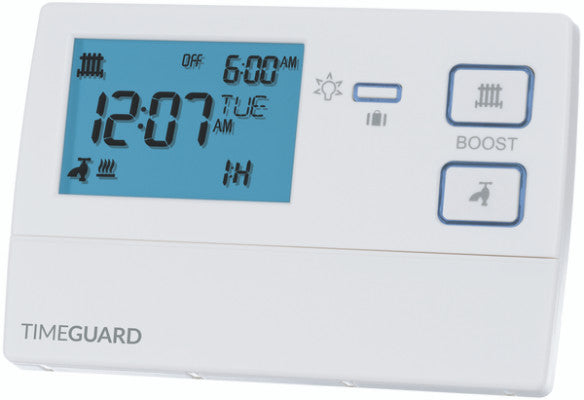

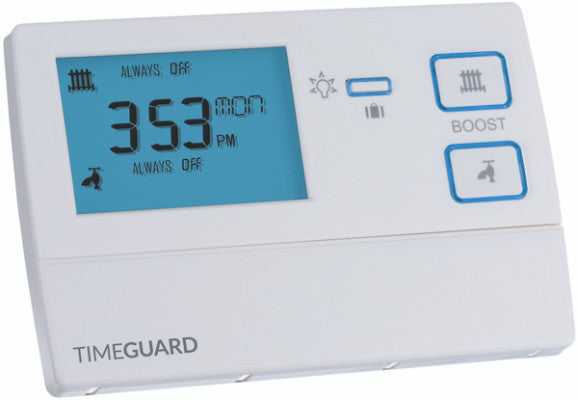

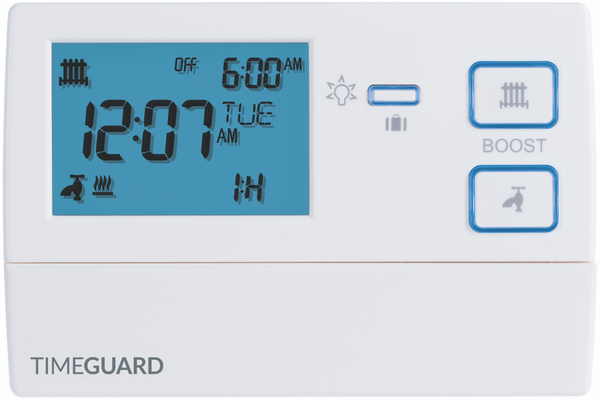

2 Channel digital heating programmer allowing independent control of central heating and hot water. The TRT036N is suitable for pumped and gravity fed systems, with an easy view blue luminescent screen. Simple push button setting and select modes with full screen information provide digital accuracy to help improve system efficiency and reduce running costs.

  • 2 independently programmed channels
  • 7 day programming for use with room thermostat
  • 3 timed control periods per day (5 day and 2 or 7 day programming)
  • Programme copy function, holiday mode & manual ON/OFF override function
  • 1 and 2 and 3 hour boost function for central heating and hot water
  • 7 day factory fitted rechargeable battery backup
  • Automatic summer/winter changeover
  • Blue LED screen illuminates upon setting
  • Change over contacts
  • Optional pumped or gravity operation set by DIP switches


    Operating Voltage 230V AC
    Frequency 50Hz
    Installation Type Surface
    Earth Class Rating Class II
    Operating Temperature 0°C to 40°C
    Connection 3 Wire
    Mounting Hole Centres (mm) 60
    Standby Consumption <10W
    Switch rating 3A Resistive, 1A Inductive

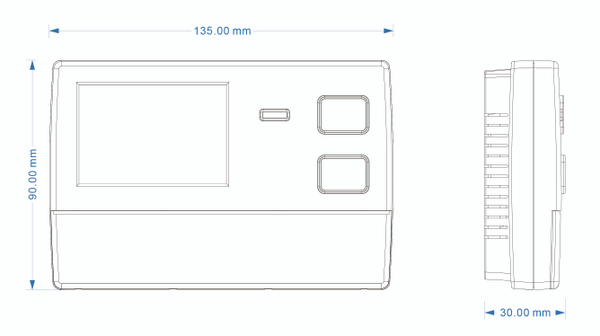

    Dimensions Height 90mm, Width 135mm, Depth 30mm
