Wylex Metal 5 Way Consumer Unit 100A C/W/ SPD

Wylex Metal 5 Way Consumer Unit 100A C/W/ SPD

Wylex Metal 5 Way Consumer Unit 100A C/W/ SPD

by Wylex
SKU NM506LSPD
£64.95

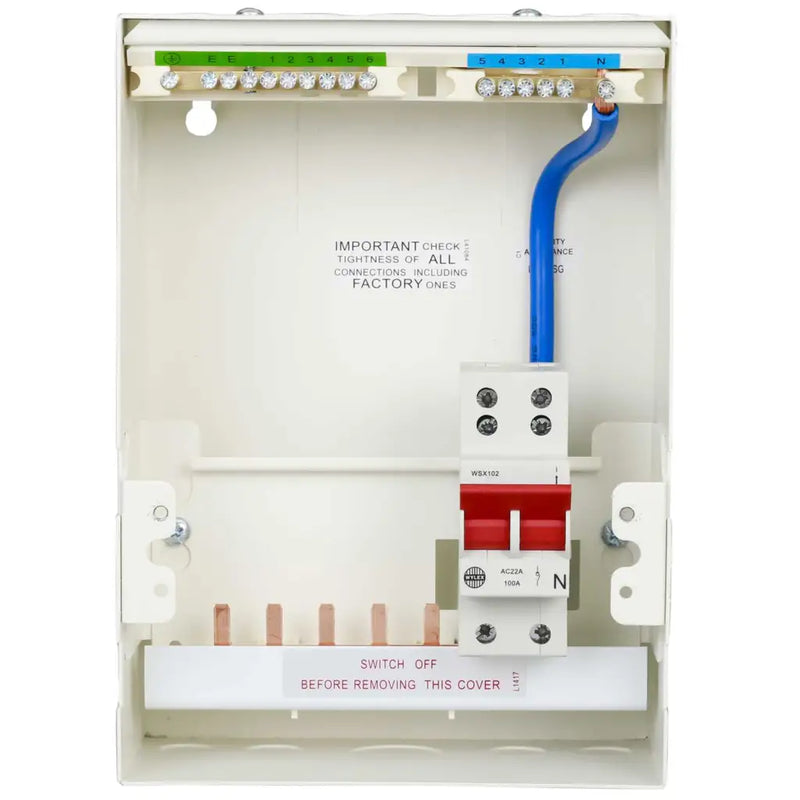

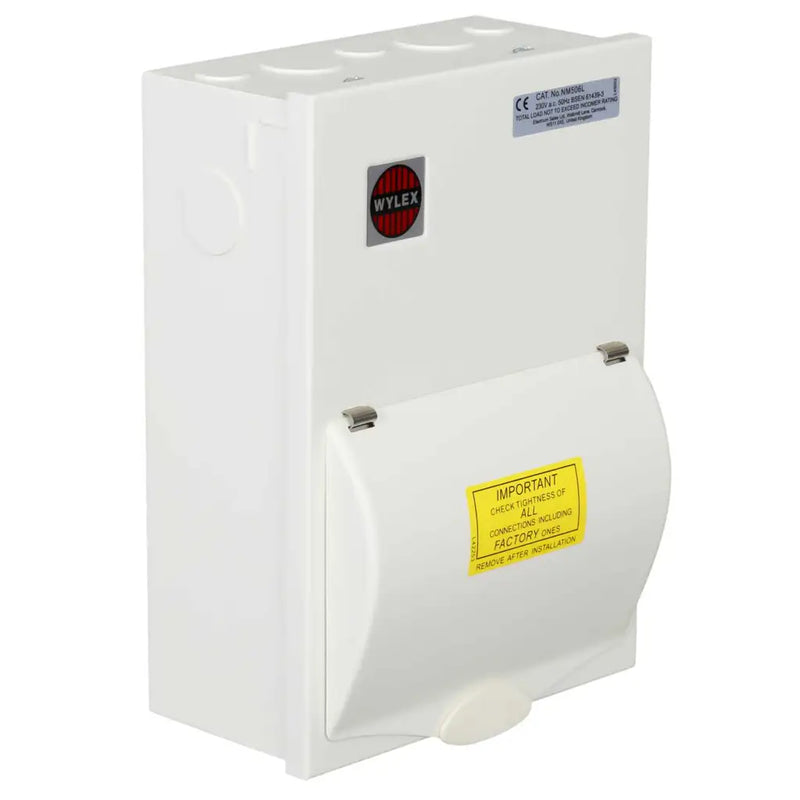

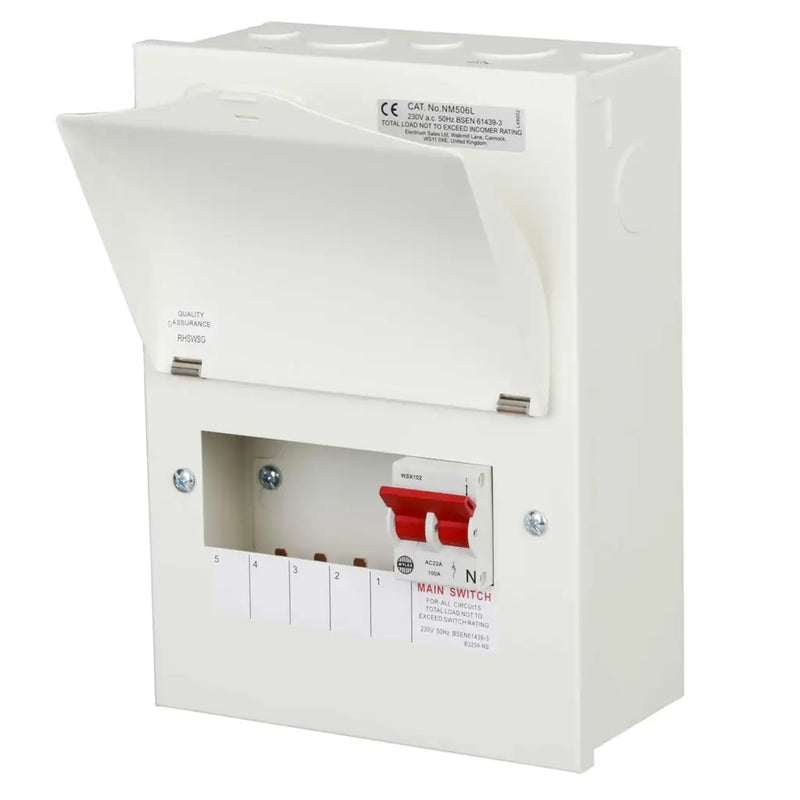

The Wylex 5 Way consumer unit is main switch only. It Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly. It accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs & accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1. Constructed from a full metal enclosure with curved visor and temporary locking facility.

-100A incoming isolator fitted
-Amendment 3 compliant
-Non-combustible enclosure

Specifications:

Brand Wylex
Compliance BSEN61439-3
Current Rating 100A
Depth 121mm
Dimensions (H)261mm (W)188mm (D)121mm
Guarantee 1 Year
Height 261mm
Incoming Device 100A Isolator
Material Metal
Mounting Surface
Number of Modules 7
Number of Outgoing Ways 5
Packaging Types Each
Product Range NM Metal
Surge Protection Fitted No
Surge Protection Ready No
Unspsc V18 39121110
Voltage Rating 230V
Weight 2.6kg
Width 188mm
