Crabtree Starbreaker Miniature RCBO | Type A, Curve B (6A–40A)

Crabtree Starbreaker Miniature RCBO | Type A, Curve B (6A–40A)

Crabtree Starbreaker Miniature RCBO | Type A, Curve B (6A–40A)

by Crabtree
SKU 61/BM0630
£16.50

Description

Compact and highly effective, the Crabtree Starbreaker Miniature RCBO is intended for use in light commercial and residential settings. This single-module RCBO improves safety and efficiency in contemporary consumer units by providing combined protection against residual current (earth leakage) and overcurrent (overload and short circuit). It is perfect for safeguarding circuits with electronic equipment and guaranteeing prompt fault response due to its Type A sensitivity and Curve B tripping characteristics.

With amperage variations ranging from 6A to 40A, this range is appropriate for a variety of circuit protection applications, including small appliances, showers, ring mains, and lighting. The Starbreaker plug-in busbar system maximises board space and guarantees a fast and error-free installation.

Please select a variant

Key Features

  • Single module RCBO combining MCB and RCD protection

  • Type A: Detects both AC and pulsating DC residual currents

  • Tripping Curve B: Ideal for protecting domestic and general-purpose circuits

  • Rated current options:

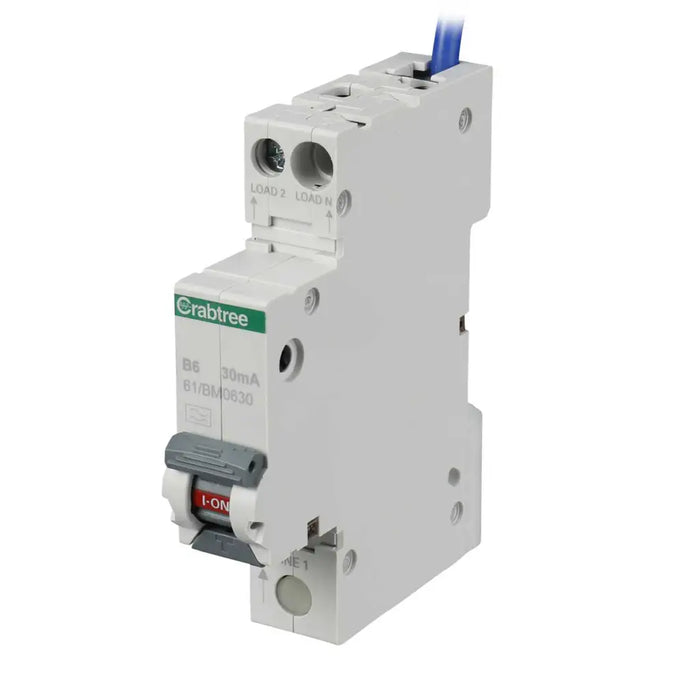

    • 61/BM0630 – 6A

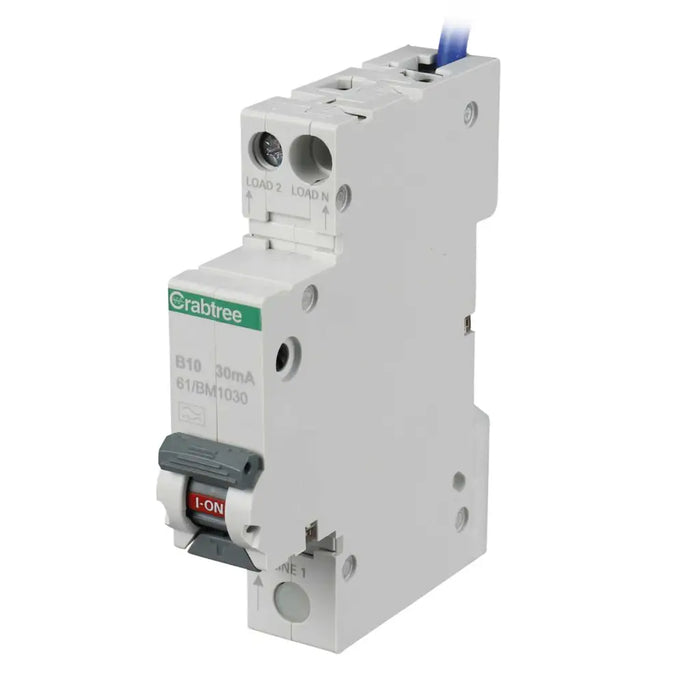

    • 61/BM1030 – 10A

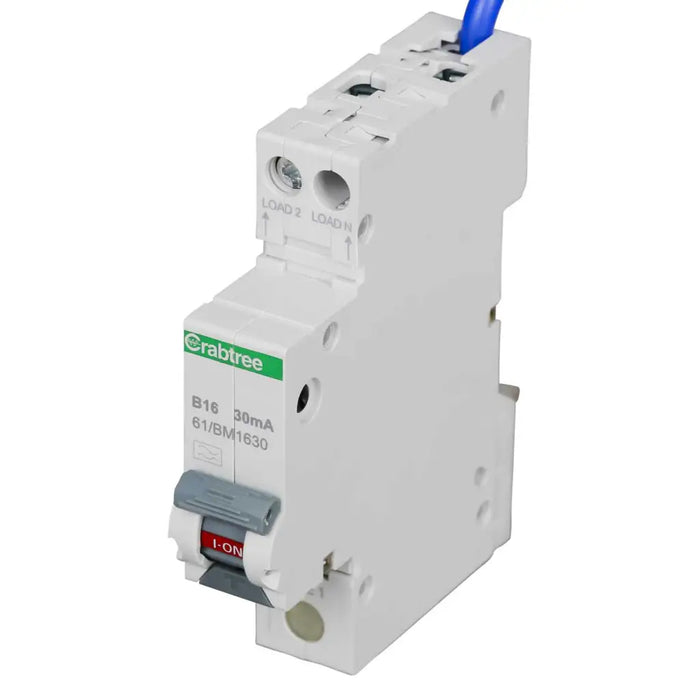

    • 61/BM1630 – 16A

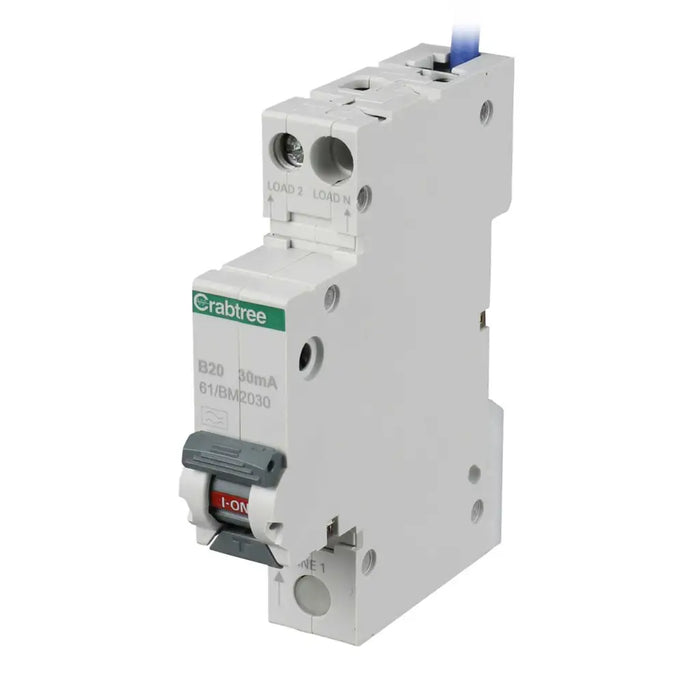

    • 61/BM2030 – 20A

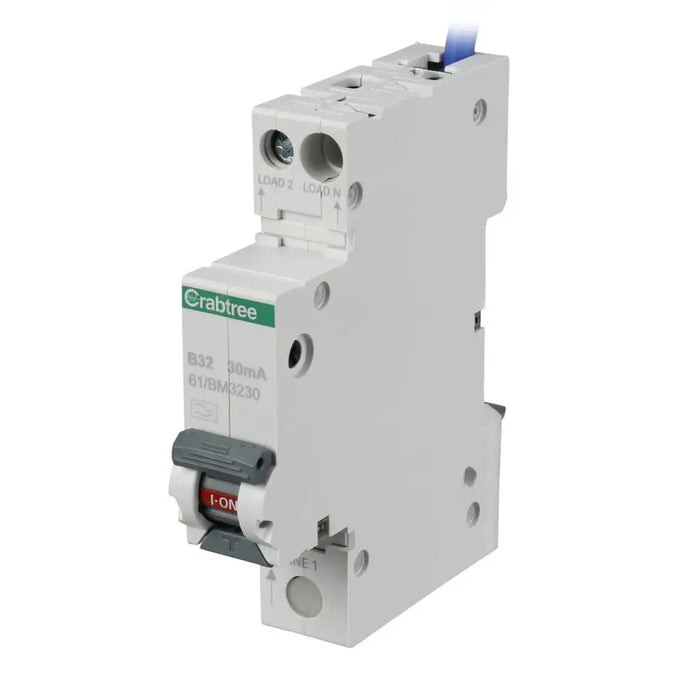

    • 61/BM3230 – 32A

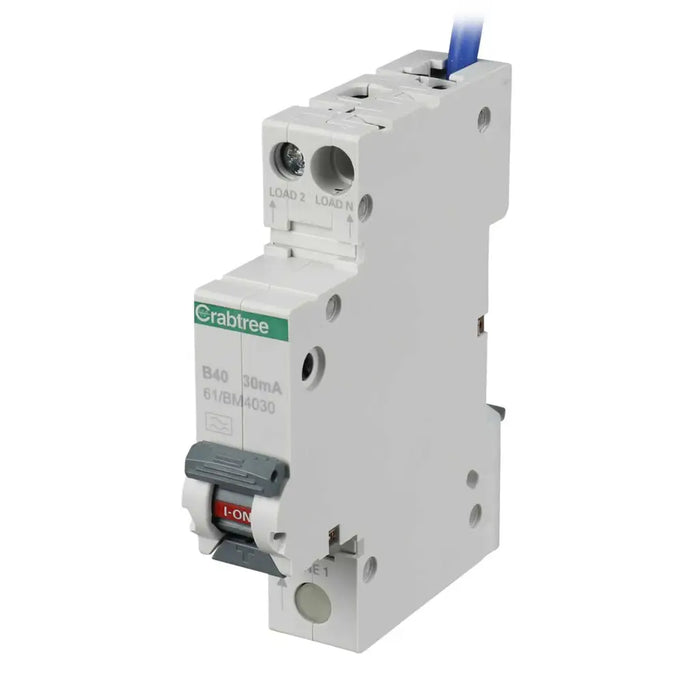

    • 61/BM4030 – 40A

  • Rated residual operating current: 30mA

  • Breaking capacity: 6kA

  • Compact plug-in design for Crabtree Starbreaker consumer units

  • Positive contact indication for safer maintenance

  • Test button for functional checking

  • Fully compliant with BS EN 61009-1 standards

  • Suitable for retrofitting into existing Starbreaker boards
