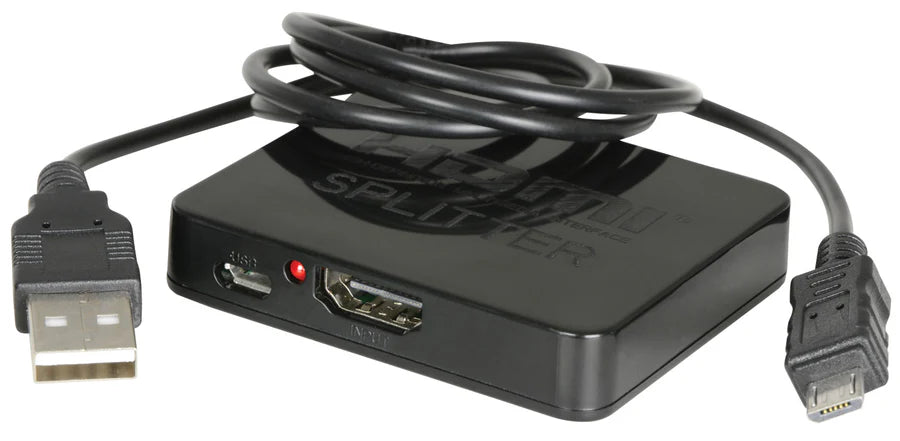

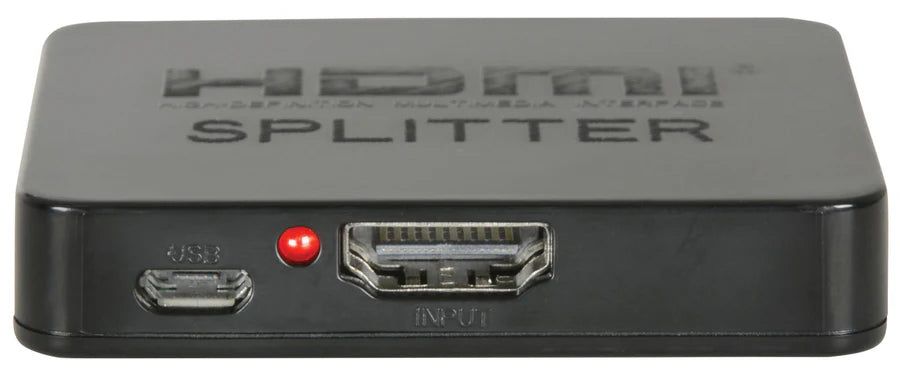

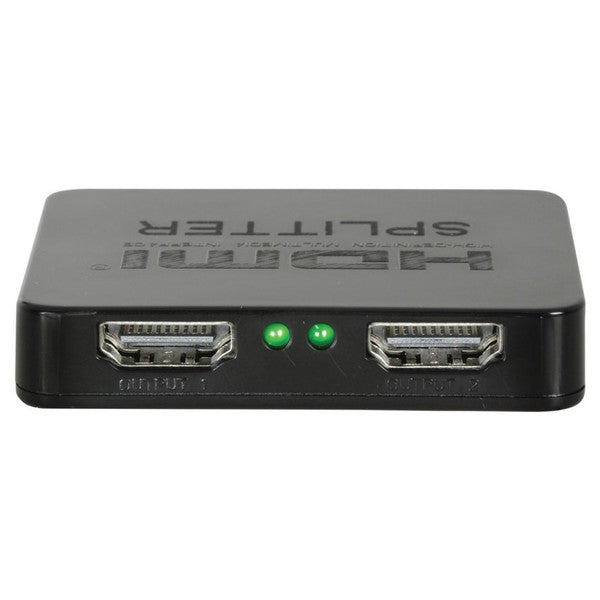

AV:Link 4K Mini HDMI Splitter 1x2, USB Powered, Supports 4K & 1080p

AV:Link 4K Mini HDMI Splitter 1x2, USB Powered, Supports 4K & 1080p

AV:Link 4K Mini HDMI Splitter 1x2, USB Powered, Supports 4K & 1080p

by CCTV
SKU 128.825UK
£10.49

Description

A straightforward mini HDMI splitter with several uses.  One HDMI source can be simultaneously distributed to multiple displays using a 1x2 Mini HDMI splitter.  HDMI cables with a combined length of 25 meters per output for HD or 16 meters per output for 4K can be used with it.

The Mini splitter can distribute the majority of the signals you require, as it supports 4K, up to 1080p, 3D, and up to 36-bit color image formats.  Additionally, the 4K's circuitry allows it to distribute your signals with little degradation in quality.  The device comes with a USB power cable in case more power is needed.

    Features

    • Small form factor chassis
    • No power needed, unit works using the power carried by your HDMI cables
    • Live output LEDs
    • Supports 4K, up to 1080p, 3D and up to 36bit colour image formats
    • Supports DTS-HD, Dolby-trueHD, DTS/Dolby-AC3, DSD HD (HBR) formats
    • HDCP2.2 Compliant
    • Supplied with additional USB power cable to use if required

    Specifications

    HDMI Version 1.4a
    Video Format 4K, Up to 1080p @ 60Hz, 3D, 36bit Deep Colour
    Audio Format DTS-HD, Dolby TrueHD, DTS/Dolby-AC3, DSD HD (HBR)
    Operating Temperature Range -15°C to +55°C
    Max. Bandwidth 340MHz
    Max. Baud Rate 3.4Gbps
    Max. Working Current 350mA
    Dimensions 62 × 51 × 11mm
    Weight 31g
