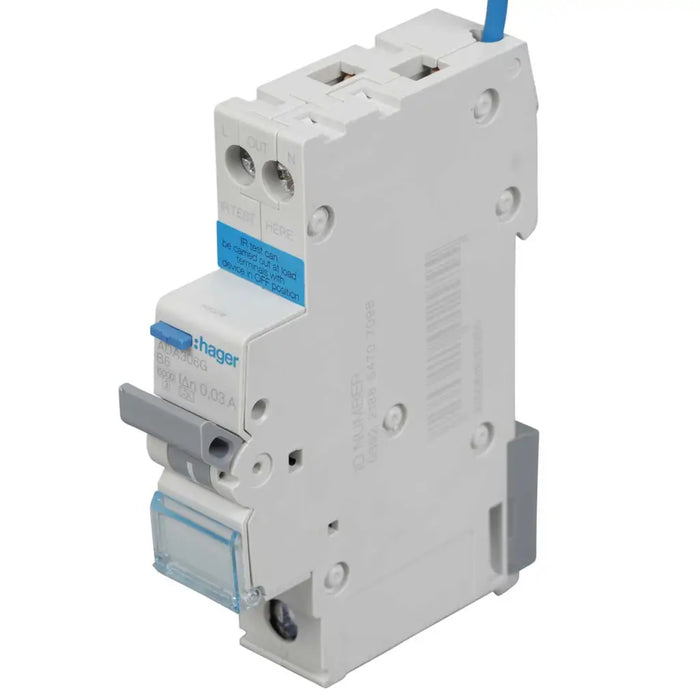

Hager ADA306G RCBO B Type 06 Amp 30mA 6kA

Description

The ADA310G is a 10A, 30mA RCBO from Hager’s range of reduced height, Type A protection devices: combining the overcurrent functions of an MCB with the earth fault functions of an RCCB. Designed to avoid danger and inconvenience in the event of a circuit fault, this 6kA, B-curve RCBO can be installed in a consumer unit to protect wiring concealed in walls or partitions for residential applications.

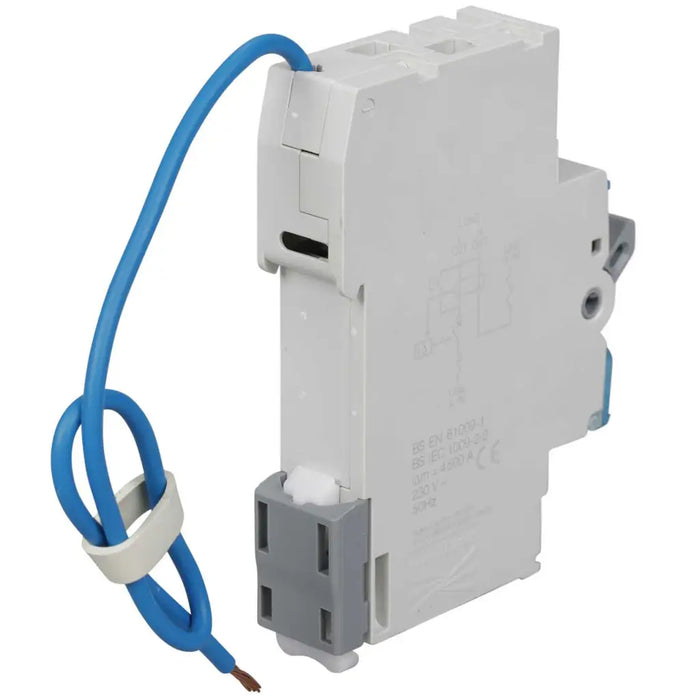

The RCBO has a 200mm flying neutral lead and its reduced height provides increased wiring space during installation. A bottom din rail clip also allows the product to be removed from a consumer unit without the need to remove the busbar.

Connection capacity: Rigid = 16mm², Flexible = 10mm²

Hager ADA310G 10A RCBO, compatible with Hager consumer units. Hager circuit breakers detect ground earth leakage via overloads and fault currents and interrupts the supply to prevent damage to fuseboxes. Hager has designed these RCBO's to retrofit your current domestic consumer units, making them ideal for existing and new build installations.

Features of Hager ADA310G

• Dimension	6kA 25A 30mA 92x17.7x73.6mm
  Circuit Breakers|Description|Product	Circuit Breaker
  Circuit Breakers|Description|Type (Cable Baskets)	RCBO
  Circuit Breakers|Features|Pole Configuration	Single Pole (1P)
  Circuit Breakers|Features|Mounting	DIN Rail
  Circuit Breakers|Features|Ingress Protection	IP20
  Circuit Breakers|Features|Trip Type	Type B
  Circuit Breakers|Features|Short Circuit Rating	6 kA
  Circuit Breakers|Features|Sensitivity	30 mA
  Circuit Breakers|Dimensions|Height	92 mm
  Circuit Breakers|Dimensions|Width	17.5 mm
  Circuit Breakers|Dimensions|Depth	70 mm
  Circuit Breakers|Technical Data|Current Rating	10 A
  Circuit Breakers|Technical Data|Voltage	230 V
  Circuit Breakers|General|Standards	BSEN61009
  Circuit Breakers|Description|Type	RCBO
  Circuit Breakers|Dimensions|Cable Capacity	16 mm2
  Circuit Breakers|Features|Ingress Protection	IP20
  Circuit Breakers|Dimensions|Height	92 mm
  Circuit Breakers|Dimensions|Width	17.5 mm
  Circuit Breakers|Dimensions|Depth	70 mm
  Circuit Breakers|Technical Data|Current Rating	25 A
  Circuit Breakers|Features|Mounting	DIN Rail
  Circuit Breakers|Dimensions|Height	92 mm
  Circuit Breakers|Dimensions|Width	17.5 mm
  Circuit Breakers|Dimensions|Depth	70 mm
  Manufacturer	Hager Ltd - Energy Distribution
