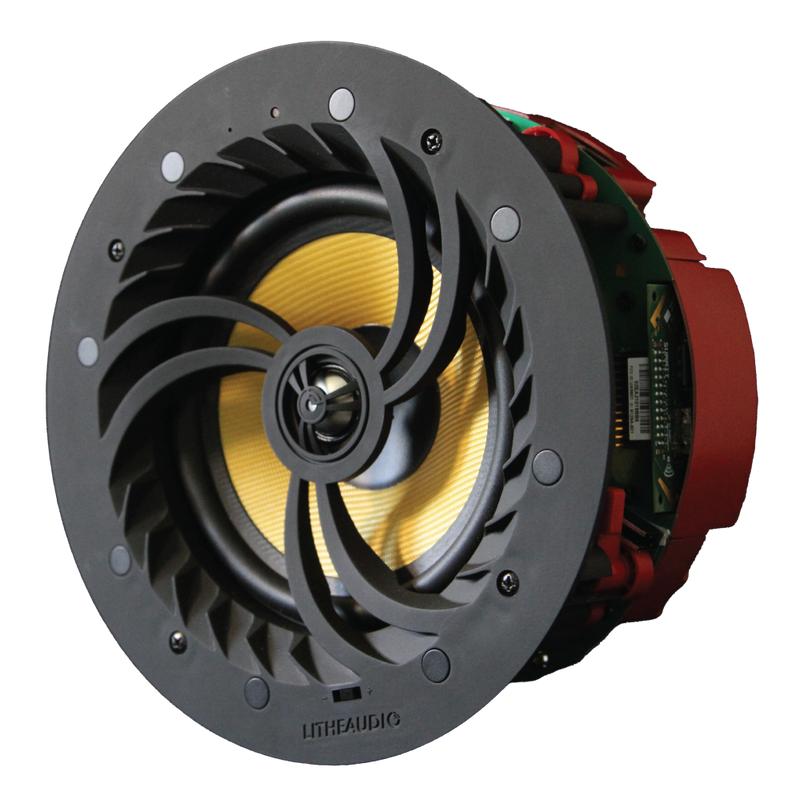

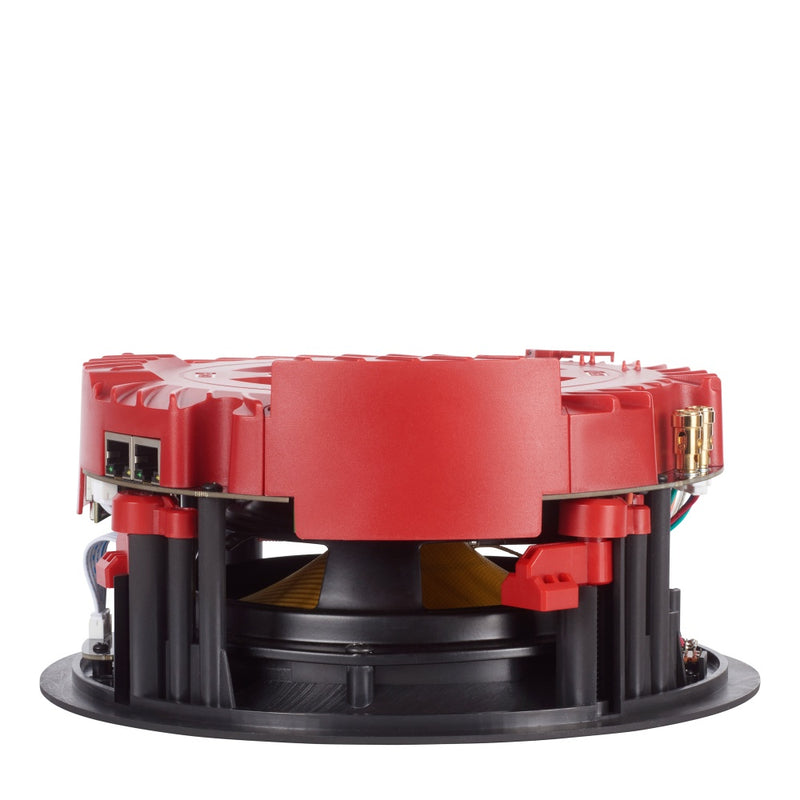

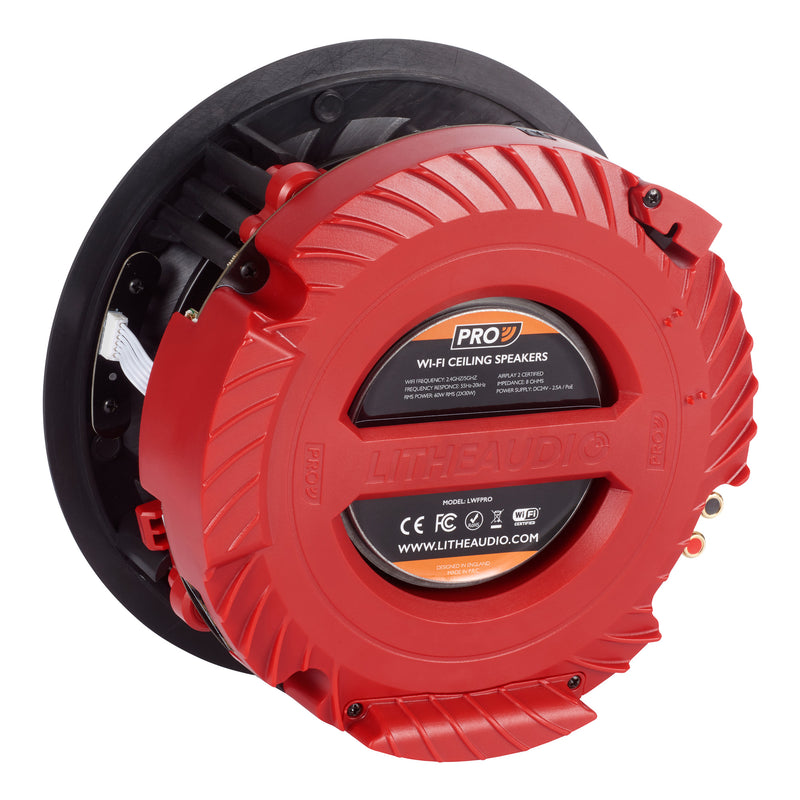

Lithe Audio Pro Series Wi-Fi Ceiling Speaker (Single)

The Lithe Audio Pro Series Wi-Fi Ceiling Speaker is an all-in-one in-ceiling audio system combining a 60W RMS Class D amplifier, Wi-Fi connectivity, and a speaker in a single unit. It is designed to provide high-resolution audio without the need for a separate amplifier or receiver.

The Pro Series supports both 2.4GHz and 5GHz Wi-Fi, plus a wired Ethernet connection. It features built-in Apple AirPlay 2, Google Chromecast, Bluetooth, and Spotify Connect, giving users multiple ways to stream music and audio from compatible devices.

With 192kHz/24-bit audio, a 6.5-inch woofer and 0.75-inch titanium tweeter, the speaker is designed for detailed, high-quality sound. The system also integrates into multi-room setups, supporting up to 30 Wi-Fi speakers for multi-room or party mode.

The speaker can be powered via a lighting circuit, plug, or compatible PoE setup, while optional hardware modules allow the system to be expanded for applications such as WiSA home cinema.

Key Features

• All-in-one Wi-Fi ceiling speaker system
• Built-in 60W RMS Class D amplifier
• Dual-band 2.4GHz and 5GHz Wi-Fi
• Ethernet hardwired connection
• Apple AirPlay 2 certified
• Google Chromecast certified
• Bluetooth connectivity
• Spotify Connect certified
• Works with Alexa
• 192kHz / 24-bit high-resolution audio
• Optical audio input
• Ethernet input and output
• DLNA/uPnP support
• NAS music storage access
• Control4 SDDP support
• Multi-room and party mode
• Supports up to 30 Wi-Fi speakers
• 6.5-inch woven glass fibre/polypropylene woofer
• 0.75-inch titanium tweeter
• Integrated amplifier and connectivity reduce the need for additional equipment
• Expandable hardware platform
• Optional WiSA module for compatible home cinema applications
• Suitable for installation into a ceiling
• Power via lighting circuit, plug, or compatible PoE configuration

Specifications

• Product: Pro Series Wi-Fi Ceiling Speaker
• Configuration: Single
• SKU: 06500
• Amplifier: Class D Digital
• Power Output: 60W RMS (2 × 30W)
• Impedance: 8 Ohms nominal
• Frequency Response: 55Hz–20kHz ±3dB
• THD+N: <0.009%
• Sensitivity: 90dB (1W/1m)
• Audio Resolution: 192kHz / 24-bit
• Woofer: 6.5-inch woven glass fibre/polypropylene cone
• Tweeter: 0.75-inch titanium cone
• Wi-Fi: 2.4GHz / 5GHz
• Wi-Fi Standard: 802.11a/b/g/n/ac
• Apple AirPlay 2: Yes
• Google Chromecast: Yes
• Bluetooth: Yes
• Spotify Connect: Yes
• Optical Input: Yes
• Ethernet: Input / Output
• DLNA/uPnP: Yes
• NAS Support: Yes
• Control4: SDDP
• Power Input: 100–240V AC, 50/60Hz, 2A
• Transformer Output: DC24V / 2.5A
• Grille Diameter: 230mm
• Ceiling Depth Required: 110mm
• Ceiling Cut-Out: 210mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Standby Power: 1.3W / 0.02A
• Connected Power: 1.5W / 0.03A
• Playing Music: 2.8W–10.5W / 0.03A–0.09A
• IP Rating: IP44 on bathroom models only
• Power Options: Lighting circuit, plug, or compatible PoE
