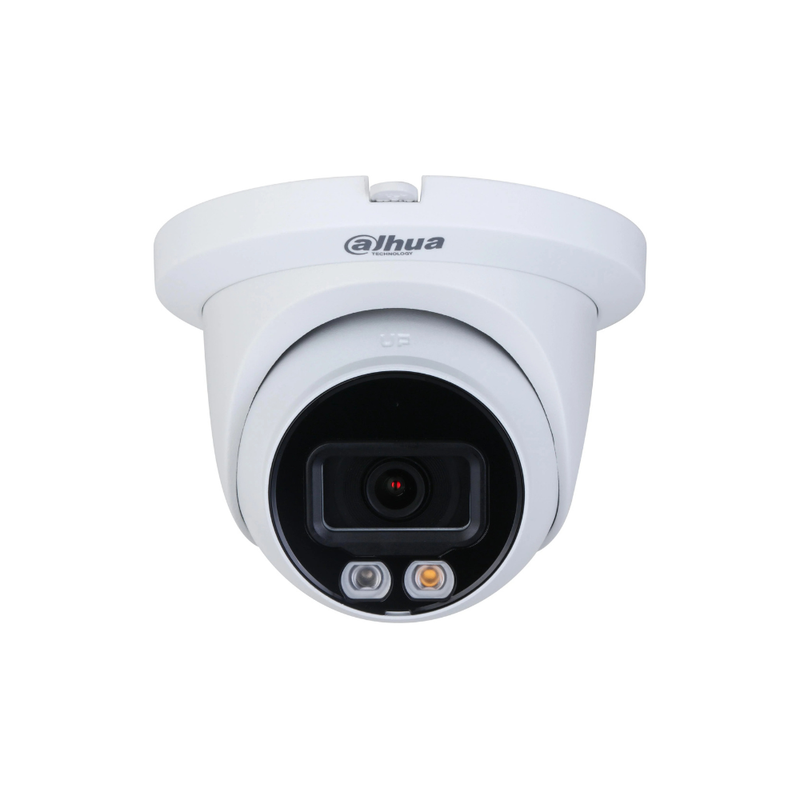

Dahua DH-IPC-HDW2849TM-S-T-PV 8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

The Dahua DH-IPC-HDW2849TM-S-T-PV is a high-performance 8MP WizSense network camera designed to deliver ultra-clear 4K surveillance video with advanced smart detection features. Equipped with a 1/2.7" CMOS image sensor, this fixed-focal eyeball camera captures highly detailed images at a maximum resolution of 3840 × 2160.

Featuring Smart Dual Light technology, the camera combines infrared night vision and warm light illumination, ensuring excellent visibility in complete darkness up to 30 meters. Its intelligent lighting automatically switches modes based on scene activity for improved image clarity and deterrence.

Powered by WizSense AI technology, the camera supports perimeter protection, including tripwire and intrusion detection, with accurate classification of human and vehicle targets to reduce false alarms. The SMD Plus feature further enhances smart motion detection for more reliable event monitoring.

With flexible lens options of 2.8 mm and 3.6 mm, wide viewing angles, and adjustable pan, tilt, and rotation, this camera is ideal for residential, commercial, and industrial surveillance applications.

Key Features

• 8MP Ultra HD Resolution – Captures crystal-clear 4K video (3840 × 2160) for highly detailed surveillance footage
• 1/2.7" CMOS Sensor – Delivers sharp imaging with strong low-light performance
• Smart Dual Light Technology – Combines IR night vision and warm white light for adaptive night monitoring
• Up to 30m Night Vision – Ensures clear visibility in complete darkness
• AI WizSense Analytics – Intelligent detection focused on human and vehicle targets
• Perimeter Protection – Supports smart rules like tripwire and intrusion detection
• SMD Plus (Smart Motion Detection) – Reduces false alarms by filtering irrelevant motion triggers
• Accurate Target Classification – Differentiates between people and vehicles for better event accuracy
• Fixed Focal Lens Options – Available in 2.8mm / 3.6mm for flexible viewing coverage
• Wide Field of View – Suitable for covering large areas like entrances, yards, and corridors
• Flexible Installation (Eyeball Design) – Adjustable angle for easy positioning
• Suitable for Multiple Environments – Ideal for residential, commercial, and industrial security setups

Specifications

Camera

• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 3840 (H) × 2160 (V) (8MP / 4K)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto / Manual, 1/3 s to 1/100,000 s
• S/N Ratio: > 56 dB

Minimum Illumination

• Color: 0.008 lux @ F1.6 (30 IRE)
• B/W: 0.0008 lux @ F1.6 (30 IRE)
• 0 lux with illuminator on

Illumination

• IR Distance: Up to 30 m (98.43 ft)
• Warm Light Distance: Up to 30 m (98.43 ft)
• Illuminator Control: Auto / Manual
• Illuminators: 1 × IR LED, 1 × Warm Light

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length Options: 2.8 mm / 3.6 mm
• Max. Aperture: F1.6
• Iris Control: Fixed

Field of View

2.8 mm Lens

• Horizontal: 111°
• Vertical: 58°
• Diagonal: 132°

3.6 mm Lens

• Horizontal: 87°
• Vertical: 49°
• Diagonal: 100°

Close Focus Distance

• 2.8 mm: 1.5 m (4.92 ft)
• 3.6 mm: 1.9 m (6.23 ft)

Angle Adjustment

• Pan: 0° to 360°
• Tilt: 0° to 78°
• Rotation: 0° to 360°

DORI Distance

2.8 mm Lens

• Detect: 84.8 m
• Observe: 33.9 m
• Recognize: 17.0 m
• Identify: 8.5 m

3.6 mm Lens

• Detect: 98.7 m
• Observe: 39.5 m
• Recognize: 19.7 m
• Identify: 9.9 m

Smart Features

• IVS (Perimeter Protection):
  • Intrusion Detection
  • Tripwire Detection
  • Human / Vehicle Classification
