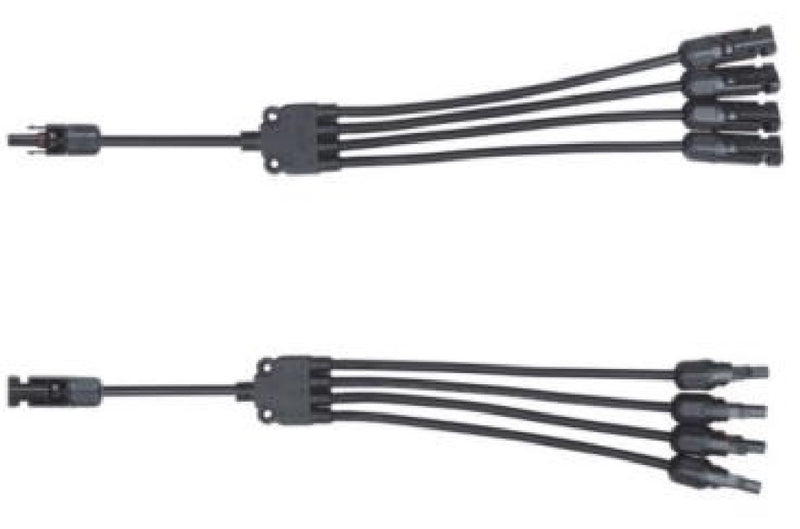

A set of 2 Y4 Solar Branch Connectors
| Connector System | 4mm |
|---|---|
| Rated Voltage | 1000V DC (IEC) |
| Rated Current | 30A |
| Test Voltage | 6kV(50HZ, 1min) |
| Ambient Temperature Range | -40°C – +90°C (IEC) -40°C – +75°C (UL) |
| Upper Limiting Temperature Range | +105°C (IEC) |
| Degree of protection when Connected | IP67 |
| Degree of protection when Unconnected | IP2X |
| Contact Resistance of Plug Connectors | 0.5m |
| Safetyclass | II |
| Contact Material | Copper Alloy, Tin Plated |
| Insulation Material | PC/PA |
| Locking System | Snap-in |
| Flame Class | UL-94-V0 |
| Salt Mist Spray Test, degree of severity 5 | IEC 6068-2-52 |
