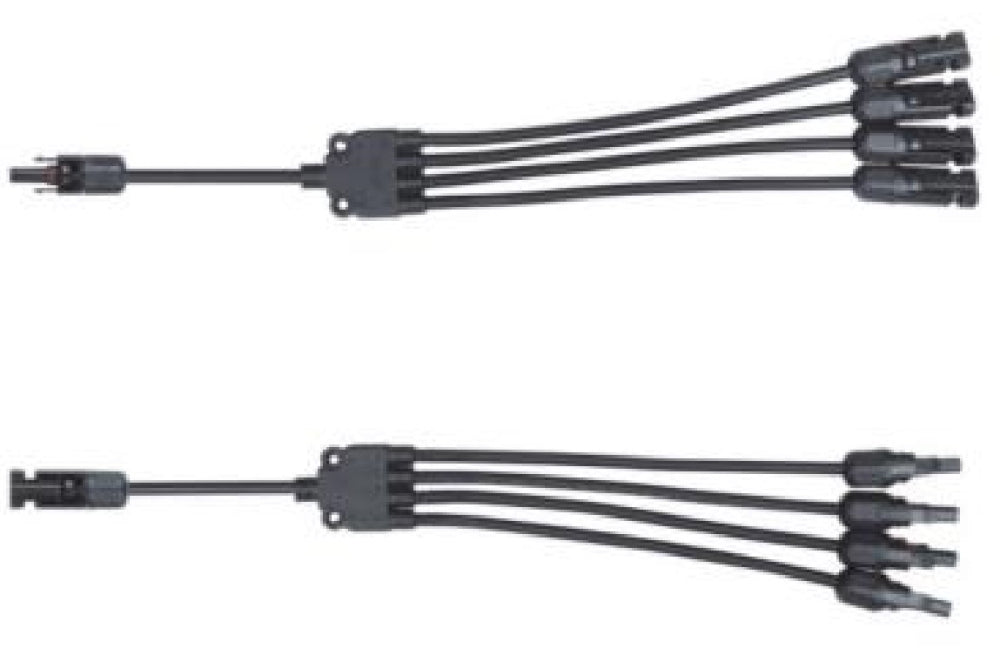

Deligo DSY4 Solar Branch Connector

Deligo DSY4 Solar Branch Connector

Deligo DSY4 Solar Branch Connector

by Deligo
SKU DSY4
£9.50

A set of 2 Y4 Solar Branch Connectors

Connector System 4mm
Rated Voltage 1000V DC (IEC)
Rated Current 30A
Test Voltage 6kV(50HZ, 1min)
Ambient Temperature Range -40°C – +90°C (IEC)
-40°C – +75°C (UL)
Upper Limiting Temperature Range +105°C (IEC)
Degree of protection when Connected IP67
Degree of protection when Unconnected IP2X
Contact Resistance of Plug Connectors 0.5m
Safetyclass II
Contact Material Copper Alloy, Tin Plated
Insulation Material PC/PA
Locking System Snap-in
Flame Class UL-94-V0
Salt Mist Spray Test, degree of severity 5 IEC 6068-2-52
