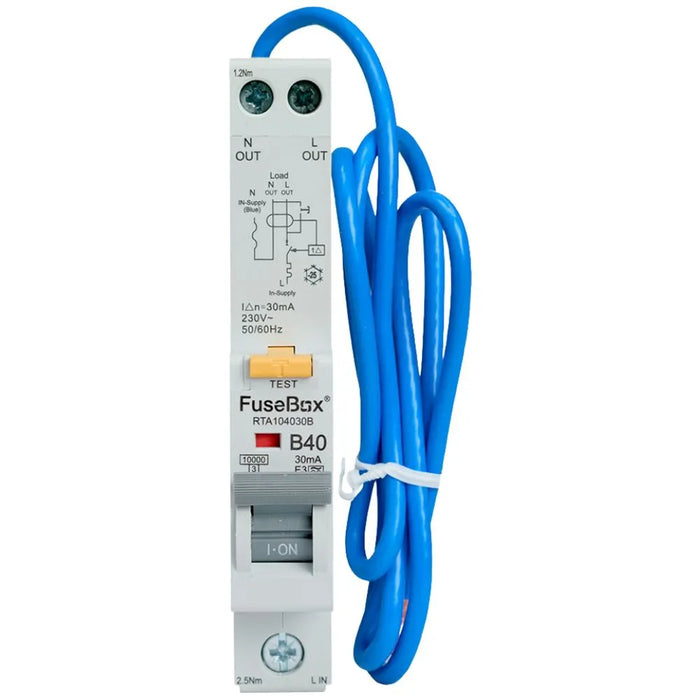

Fusebox RCBO's Type A, Curve B | RTA Series (06A-50A)

Fusebox RCBO's Type A, Curve B | RTA Series (06A-50A)

Fusebox RCBO's Type A, Curve B | RTA Series (06A-50A)

by FuseBox
SKU RTA100630B
Β£19.85

Description

The Fusebox RTA Series RCBOs are high-performance, single-module devices that combine short-circuit, overcurrent, and earth leakage protection into a single, small package.

They are perfect for contemporary installations with electronics and LED lighting because they are built to Type A sensitivity, which allows them to detect both AC and pulsating DC residual currents. For general-purpose circuits in homes and light commercial settings, the Curve B trip profile is appropriate because it guarantees a safe and prompt disconnect when a fault arises.

Key Features:

  • Compact single-module design (18mm) – saves space in the consumer unit

  • Type A sensitivity – protects against AC and pulsating DC residual currents

  • Curve B tripping characteristics – ideal for most domestic and light commercial circuits

  • Integrated Test Button – simple routine testing for ongoing safety

  • DIN rail mountable – quick and easy installation

  • 18th Edition compliant – meets BS EN 61009-1 and BS 7671 requirements

  • Operating Voltage: 230-240V AC, 50/60Hz

  • Short-circuit capacity: 10kA

  • Earth leakage sensitivity: 30mA

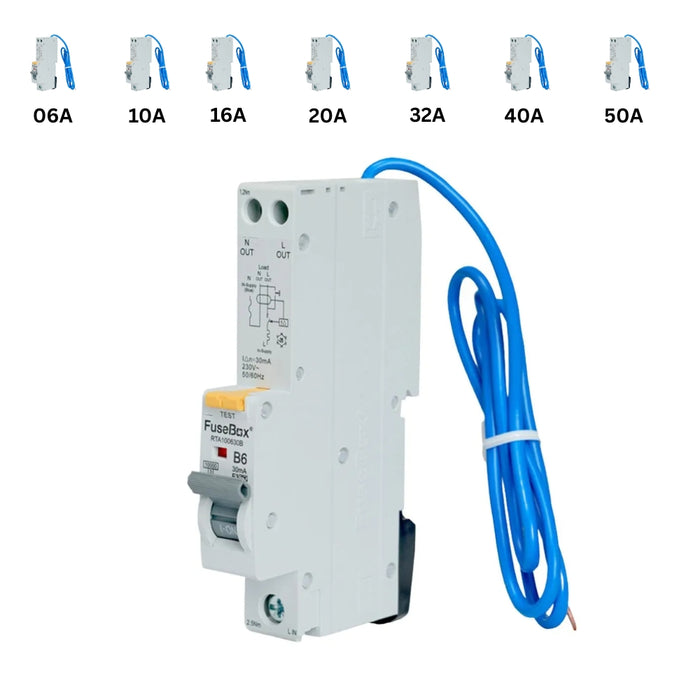

Part Number Current Rating Residual Sensitivity Curve Type Width

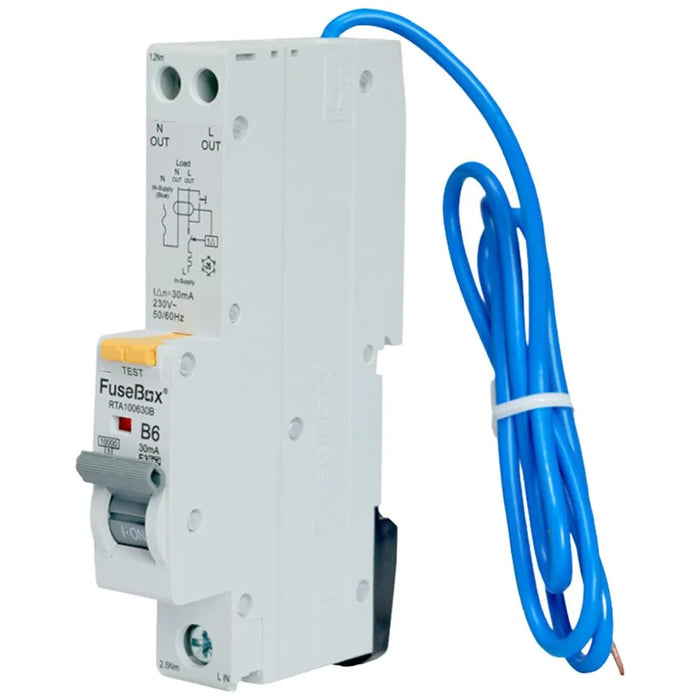

RTA100630B 6A 30mA B 1 Module

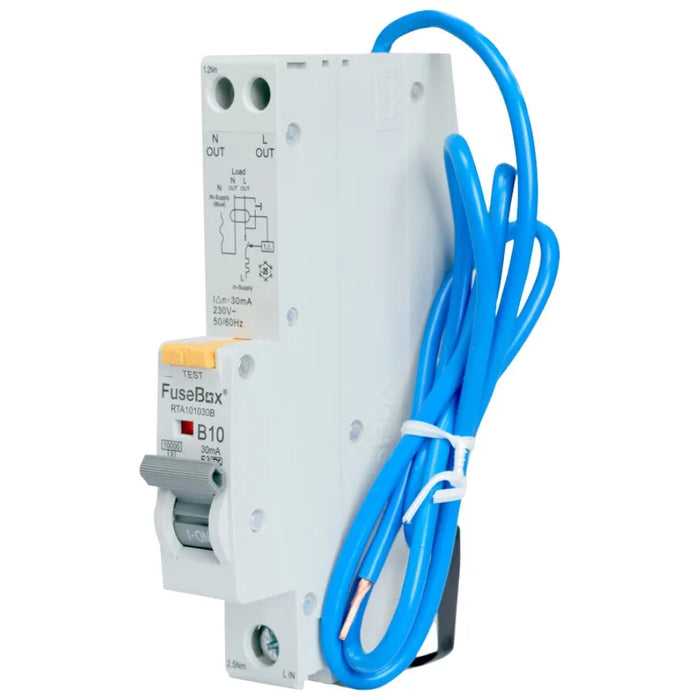

RTA101030B 10A 30mA B 1 Module

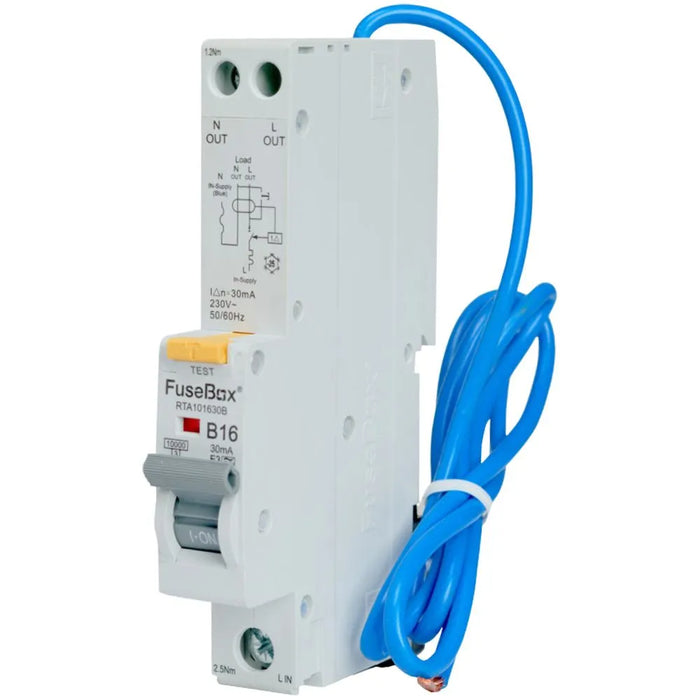

RTA101630B 16A 30mA B 1 Module

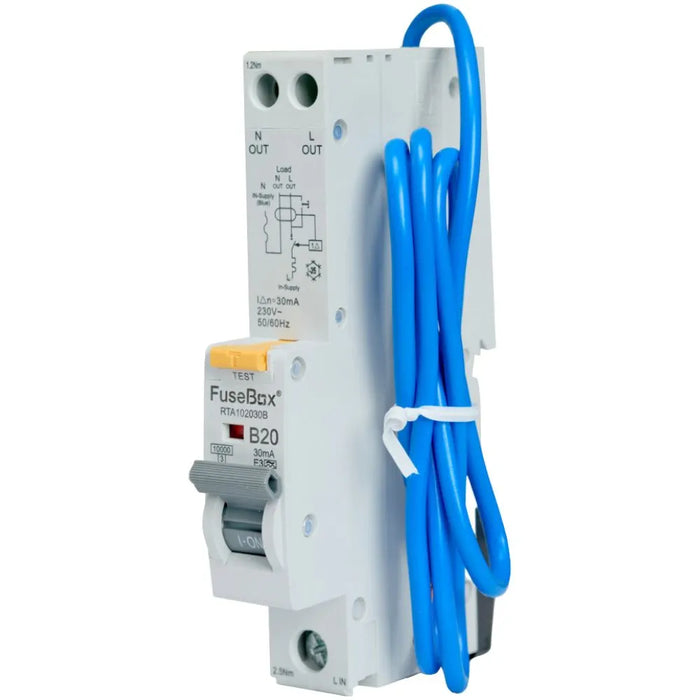

RTA102030B 20A 30mA B 1 Module
RTA102030B 20A 30mA B 1 Module

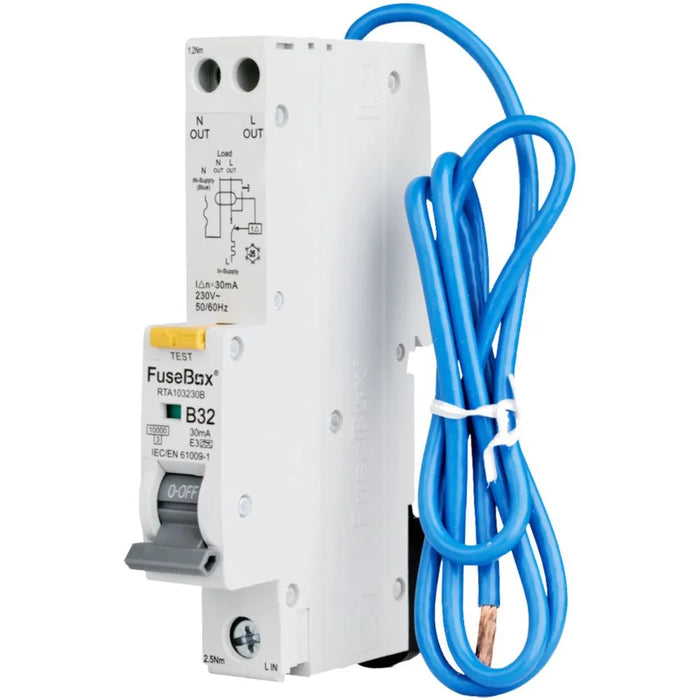

RTA103230B 32A 30mA B 1 Module
RTA104030B 40A 30mA B 1 Module

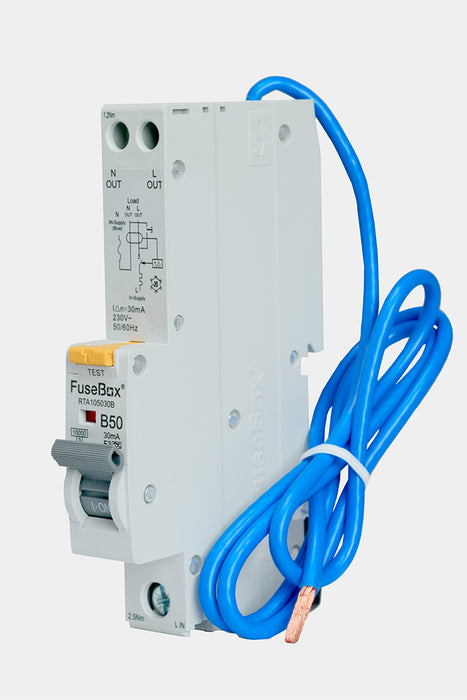

RTA105030B 50A 30mA B 1 Module
