Fusebox 21 Way Consumer Unit with 100A Main Switch F3021MZ
Fusebox 21 Way Consumer Unit with 100A Main Switch F3021MZ
Fusebox 21 Way Consumer Unit with 100A Main Switch F3021MZ
Fusebox 21 Way Consumer Unit with 100A Main Switch F3021MZ

Fusebox 21 Way Consumer Unit with 100A Main Switch F3021MZ

by FuseBox
SKU F3021MZ
£82.85
  • checkmark
    Family-run, Birmingham-based business
  • checkmark
    Quick dispatch across the UK
  • checkmark
    Trade and retail welcome

Guaranteed Safe & Secure Checkout
  • Apple Pay
  • Google Pay
  • PayPal
  • Shop Pay

Description

The Fusebox F3021MZ (Replaces Fusebox F2020MX) is a 21-way RCBO consumer unit equipped with a 100A main switch and a Type 2 Surge Protection Device (SPD). Designed to guard against transient over-voltages and lightning strikes, it features Fusebox’s advanced SPD1MT2 device, which connects directly to the busbar—eliminating the need for a miniature circuit breaker and enhancing both safety and ease of installation.

Designed for Streamlined Installation

Like with the rest of the Fusebox line, the Fusebox F3021MZ is installer-friendly with a variety of 20–40mm knockouts for flexible cabling options.

Built to Last

Fully compliant with BS EN 61439-3 standard, rated IP2XC for electrical safety and constructed from rust-resistant galvanised steel, this unit combines durability with trusted performance.

Key Features

  • 21 Way 100A Main Switch RCBO Consumer Unit with Surge Protection
  • Galvanised Metal Construction  - Durable, corrosion-resistant housing.
  • 35mm DIN Rail Device Mounting - Industry-standard fitting for easy RCBO mounting and reconfiguration.
  • 20-40mm Cable Knockouts - Multiple entry points allow versatile cable routing options.
  • IP rating of IP2XC -  Safeguards against solid objects for added safety
  • Tail Clamp Included (ACCF) - Provides secure cable retention for more reliable connections
  • Secure grommet strip - Protects cables at entry points and ensures tidy installations
  • Maximum Terminal Bar Capacity of 16mm - Supports a wide range of cable sizes
  • RAL 9001 Powder Coated - Clean, neutral finish
  • Easy to Install
  • Captive Screws are included on the front cover
  • BS EN 61439-3 compliant
  • Voltage - 230V
  • Frequency - 50/60Hz
  • Terminal Bar Tightening Torque - 2NM
  • Tail Clamp Compatible - Yes
  • Double Bank - No
  • Height - 259mm
  • Width - 486mm
  • Depth - 113mm
  • Weight - 4kg
  • Warranty - 1 Year

YOU MAY ALSO LIKE

Popular products from our range.

*FuseBox 25A 4 Pole N/O INSTALLATION CONTACTOR 230V INC254

*FuseBox 25A 4 Pole N/O INSTALLATION CONTACTOR 230V INC254

£12.55
*FuseBox 40A 2P N/O INSTALLATION CONTACTOR 230V INC402

*FuseBox 40A 2P N/O INSTALLATION CONTACTOR 230V INC402

£12.19
*FuseBox 63A 2P N/O INST CON 230V (36mm) INC632

*FuseBox 63A 2P N/O INST CON 230V (36mm) INC632

£14.96
*FuseBox 63A 4P N/O INSTALLATION CONTACTOR 230V INC634

*FuseBox 63A 4P N/O INSTALLATION CONTACTOR 230V INC634

£17.75
*FuseBox ABTR Bell Transformer 1A 8V 12V AND 24V OUTPUTS 230V INPUT ABTR

*FuseBox ABTR Bell Transformer 1A 8V 12V AND 24V OUTPUTS 230V INPUT ABTR

£7.81
*FuseBox Digital 7 Day Time Clock 1 Channel, 150 Hour Reserve TD1

*FuseBox Digital 7 Day Time Clock 1 Channel, 150 Hour Reserve TD1

£24.25
*FuseBox RTA800302 30mA 2 Pole RCD Type A 80A

*FuseBox RTA800302 30mA 2 Pole RCD Type A 80A

£24.13
EV32ABDZ 32A Type A Bi Directional RCBO, Main Switch and T2 SPD EV Charger Distribution Board
(4 Reviews)

EV32ABDZ 32A Type A Bi Directional RCBO, Main Switch and T2 SPD EV Charger Distribution Board

£65.49
FuseBox 100A 2 POLE MAIN SWITCH IT1002

FuseBox 100A 2 POLE MAIN SWITCH IT1002

£4.50
FuseBox 100A 2P CONNECTOR IT1002U

FuseBox 100A 2P CONNECTOR IT1002U

£12.50
FuseBox 100A MAIN SWITCH 11 WAY F2011M

FuseBox 100A MAIN SWITCH 11 WAY F2011M

£39.85
FuseBox 100A MAIN SWITCH 15 WAY F2015M

FuseBox 100A MAIN SWITCH 15 WAY F2015M

£43.00
FuseBox 100A MAIN SWITCH 29WAY (14/15) T2 SPD DB F2029MX

FuseBox 100A MAIN SWITCH 29WAY (14/15) T2 SPD DB F2029MX

£177.98
FuseBox 100A MAIN SWITCH 4WAY (2X BLANKS) F2004M

FuseBox 100A MAIN SWITCH 4WAY (2X BLANKS) F2004M

£27.95
FuseBox 100A Main SWITCH 7 WAY F2007M

FuseBox 100A Main SWITCH 7 WAY F2007M

£32.95
FuseBox 100A MS 44 WAY T2 Consumer Unit with Surge Protection (3 BANK) F2044MX

FuseBox 100A MS 44 WAY T2 Consumer Unit with Surge Protection (3 BANK) F2044MX

£228.66
FuseBox 100A Single Pole Fused Isolator Switch (63,80,100A Fuses) SF0100

FuseBox 100A Single Pole Fused Isolator Switch (63,80,100A Fuses) SF0100

£28.00
FuseBox 11 Way Consumer Unit with 100A Main Switch F3011MZ

FuseBox 11 Way Consumer Unit with 100A Main Switch F3011MZ

£69.35
Fusebox 12 Way Consumer Unit with 100A Main Switch F3012M

Fusebox 12 Way Consumer Unit with 100A Main Switch F3012M

£44.49
FuseBox 14P FLUSH MOUNTING FRAME AFMF14

FuseBox 14P FLUSH MOUNTING FRAME AFMF14

£15.94
FuseBox 14P SURFACE SPACER (METAL) 30mm AFSS14

FuseBox 14P SURFACE SPACER (METAL) 30mm AFSS14

£15.55
Fusebox 15 Way Consumer Unit with 100A Main Switch F3015MZ

Fusebox 15 Way Consumer Unit with 100A Main Switch F3015MZ

£75.00
Fusebox 16 Way Consumer Unit with 100A Main Switch F3016M

Fusebox 16 Way Consumer Unit with 100A Main Switch F3016M

£49.99
FuseBox 18P FLUSH MOUNTING FRAME AFMF18

FuseBox 18P FLUSH MOUNTING FRAME AFMF18

£18.85
FuseBox 20A 2P N/O INSTALLATION CONTACTOR 230V INC202

FuseBox 20A 2P N/O INSTALLATION CONTACTOR 230V INC202

£7.64
Fusebox 21 Way Consumer Unit with 100A Main Switch F3021MZ

Fusebox 21 Way Consumer Unit with 100A Main Switch F3021MZ

£82.85
FuseBox 24P FLUSH MOUNTING FRAME AFMF24

FuseBox 24P FLUSH MOUNTING FRAME AFMF24

£22.49
FuseBox 24P SURFACE SPACER (METAL) 30mm AFSS24

FuseBox 24P SURFACE SPACER (METAL) 30mm AFSS24

£21.15
FuseBox 30MA 2 Pole AFDD RCBO 10A

FuseBox 30MA 2 Pole AFDD RCBO 10A

£74.50
FuseBox 30MA 2 Pole AFDD RCBO 20A

FuseBox 30MA 2 Pole AFDD RCBO 20A

£87.95
FuseBox 30MA 2 Pole AFDD RCBO 32A
(1 Review)

FuseBox 30MA 2 Pole AFDD RCBO 32A

£91.92
FuseBox 30MA 2 Pole AFDD RCBO 40A

FuseBox 30MA 2 Pole AFDD RCBO 40A

£87.95
FuseBox 30MA 2 Pole AFDD RCBO 6A

FuseBox 30MA 2 Pole AFDD RCBO 6A

£74.50
Fusebox 31 Way Consumer Unit with 100A Main Switch F3031MZ

Fusebox 31 Way Consumer Unit with 100A Main Switch F3031MZ

£179.85

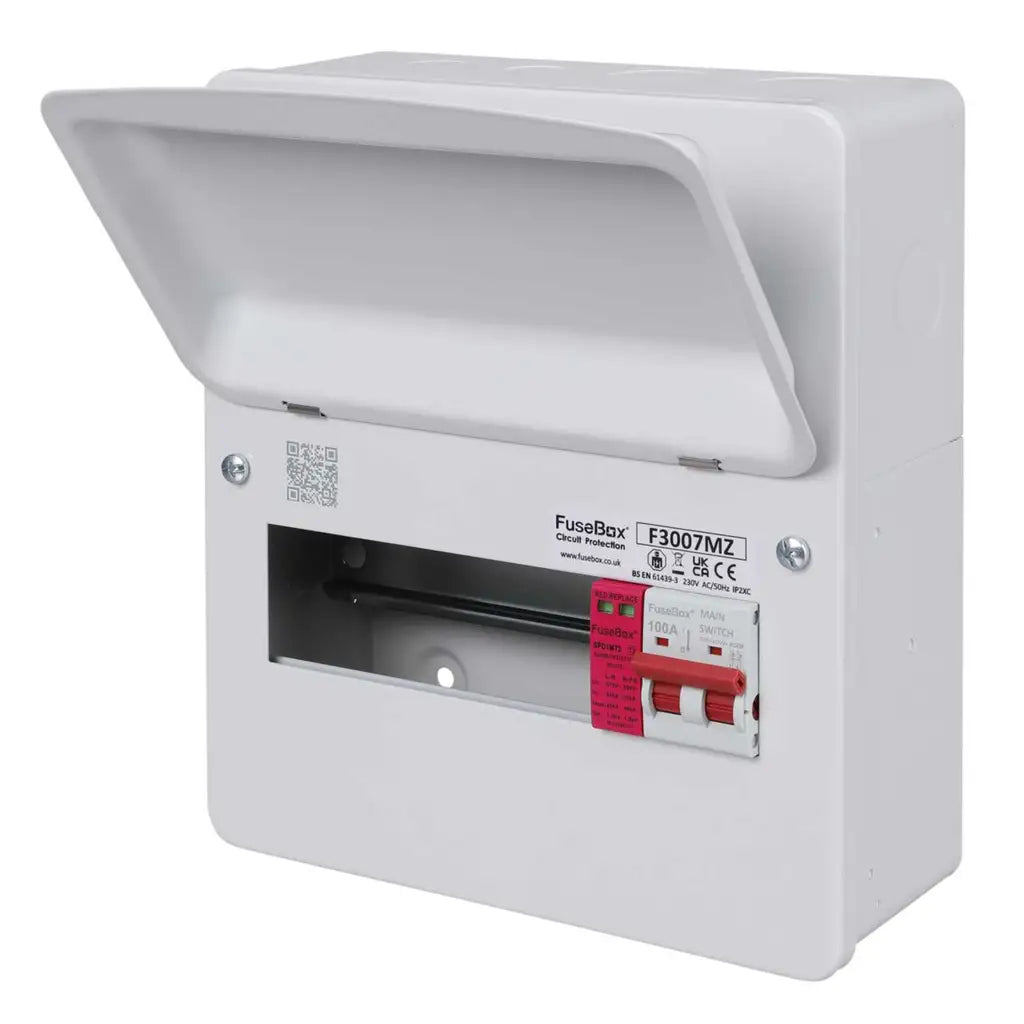

Fusebox 7 Way Consumer Unit with 100A Main Switch F3007MZ
