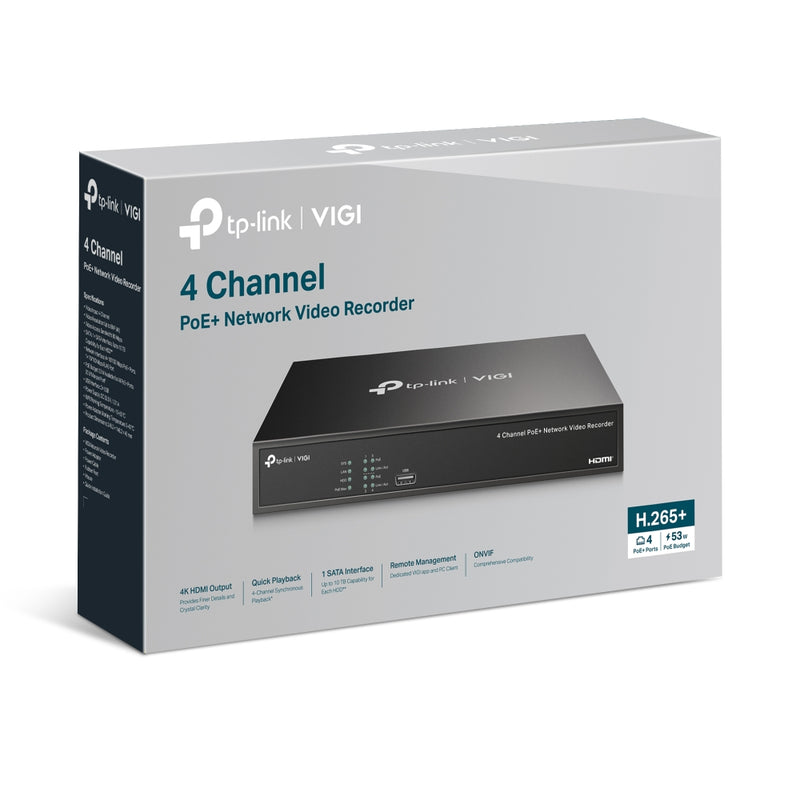

TP-Link VIGI 4-Channel PoE+ Network Video Recorder – 4K HDMI Output, 80Mbps Bandwidth

About this product

VIGI NVR1004H-4P – 4-Channel PoE+ Network Video Recorder by TP-Link
SKU: VIGI NVR1004H-4P

Secure your business around the clock with the VIGI NVR1004H-4P, a powerful and compact 4-channel PoE+ Network Video Recorder designed by TP-Link. Tailored for small to medium-sized businesses, retail shops, offices, and remote locations, this NVR combines high-resolution surveillance with simplified installation and intuitive monitoring.

Description

The VIGI NVR1004H-4P is a cutting-edge 4-channel PoE+ Network Video Recorder, delivering 4K HDMI video output and 16MP decoding capacity for unparalleled image clarity and detail capture. With simplified deployment, plug & play functionality, and remote monitoring capabilities, it ensures seamless installation and efficient surveillance management.

Features

• 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†.
• Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
• 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
• Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
• 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.

What's in the box

• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide

Specifications

• Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• Dimensions: 246.2 × 148.2 × 45 mm
• PoE: Standard: 802.3af/at, Ports 1-4, Budget: 53 W
• External Power Supply: 53.5V DC/1.31A
• Power Consumption: 4.25 W (without disk)
• Interfaces: Network: RJ-45 10/100 Mbps, USB: 2× USB 2.0
• Storage: SATA Interface, Capacity: Up to 10 TB
• Video Input: 4-Channel IP, up to 8MP Resolution
• Outputs: HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz, VGA: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
