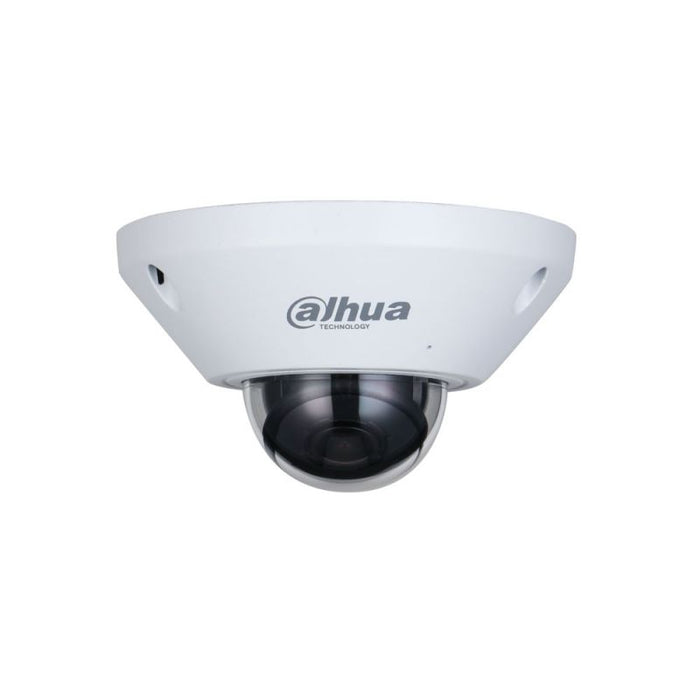

Dahua IPC-EB5541P-AS Dahua anti-vandal day / night IP fisheye

Dahua IPC-EB5541P-AS Dahua anti-vandal day / night IP fisheye

Dahua IPC-EB5541P-AS Dahua anti-vandal day / night IP fisheye

by CCTV
SKU DH- IPC-EB5541P-AS
£229.85

Description

Dahua IP fisheye dome for outdoor use that is anti-vandal day and night.  1 / 2.7 "CMOS of 5MP.  Triple Stream.  Smart H.265 + / H.265 / Smart H.264 + / H.264 / MJPEG format.  5MP resolution at 25 ips.  ICR filter.  1.4mm (180°) fisheye optics, 0.006 lux F2.0.  WDR 120dB, OSD, AWB, AGC, BLC, HLC, 3D-DNR, four ROI zones, video sensor, and privacy masks.  IVS stands for intelligent detection.  heat map.  two-way sound.  It has a microphone built in.  One output and one alarm input.  MicroSD card slot.  CGI, Onvif.  IP67 and IK10.  12V DC.  PoE.  Dahua anti-vandal ip fisheye dome for outdoor use, day or night.



Key Features

  • 5MP 1/2.7" CMOS image sensor for crisp, high-definition video
  • 180° panoramic fisheye lens for full area coverage
  • Smart H.265+/H.264+ compression for efficient bandwidth and storage use
  • Day/night functionality with color and B/W modes
  • Advanced video analytics including perimeter protection, heat map, and people counting
  • IP67 weatherproof and IK10 vandal-resistant metal housing
  • PoE support for simplified installation

Specification

Camera
Image Sensor1/2.7" 5MP CMOS
Min. Illumination0.006 lux @ F2.0
Day/Night ModeColor / B&W / Auto
Lens1.4 mm fisheye lens
Viewing Angle180° (H) / 180° (V) / 180° (D)
Video
Resolution Options 5MP (2592 × 1944)
3MP (2048 × 1536)
UXGA (1600 × 1200)
1.3MP (1280 × 960)
720P (1280 × 720)
Main Stream5MP (1–25 fps)
Sub Stream 1D1 (1–25 fps)
Sub Stream 2720P (1–25 fps)
CompressionSmart H.265+, Smart H.264+, H.265, H.264, MJPEG
Image EnhancementsBLC, HLC, WDR 120 dB, 3D-NR
White Balance6 selectable modes
Gain ControlAutomatic / Manual
Smart Functions
Heat MapMotion and activity tracking
Perimeter ProtectionLine crossing and intrusion detection
People Counting Counts people entering/exiting defined zones
Generates daily, monthly, and yearly reports
Supports up to 4 counting areas
Smart SearchWorks with Smart NVRs for event-based video retrieval
Audio
MicrophoneBuilt-in
Audio I/O1 RCA input / 1 RCA output
Alarm
Inputs/Outputs1 alarm input / 1 alarm output
Storage
MicroSD SlotSupports up to 256 GB (card not included)
Network
InterfaceRJ45 (10/100 Base-T)
ProtocolsIPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
Remote AccessWeb browsers (IE 8/9/11, Chrome, Firefox), iOS & Android apps
Management SoftwareSmart PSS, DSS, DMSS
InteroperabilityONVIF S/G/T, CGI, Milestone, P2P
Power
Power Supply12 V DC or PoE (802.3 af)
Power Consumption5.1 W (DC), 6 W (PoE)
Power Supply UnitNot included
Environmental
Operating Temperature–30 °C ~ +55 °C (≤ 95% RH)
Storage Temperature–40 °C ~ +60 °C
Ingress ProtectionIP67 (weatherproof)
Vandal ResistanceIK10
Physical
Housing MaterialMetal
DimensionsØ 110 × 62 mm (H)
Weight387 g
Adjustment (3-Axis)Pan: 0° ~ 355°
Tilt: 0° ~ 55°
Rotation: 0° ~ 360°
