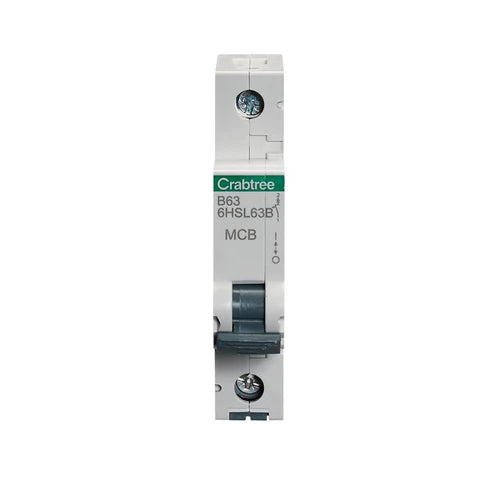

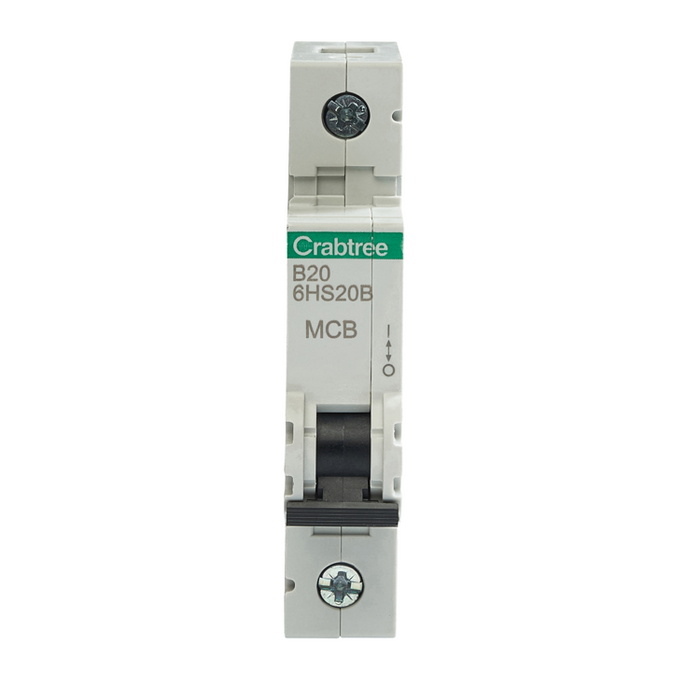

Crabtree Loadstar 3-Phase SP MCB's Type B 10kA (6HS-RANGE)

Crabtree Loadstar 3-Phase SP MCB's Type B 10kA (6HS-RANGE)

Crabtree Loadstar 3-Phase SP MCB's Type B 10kA (6HS-RANGE)

by Crabtree
SKU
£7.05

Description

The Crabtree Loadstar Type B 3-Phase Miniature Circuit Breakers (MCBs) are intended to provide effective short-circuit and overloading protection for light industrial and commercial applications. With a breaking capability of 6kA, these MCBs are suitable for application in distribution boards and panel boards. Type B trip characteristics make them appropriately suitable for protecting general-purpose circuits, e.g., socket outlets and lighting, where surge currents are relatively low.

Each model offers varying current ratings, providing flexibility in the design and protection of multiple electrical installations.

Key Features:

  • Trip Curve Type B: Trips between 3 and 5 times the full load current—ideal for residential and light commercial loads.

  • Breaking Capacity: 10kA at 230/400V AC in compliance with IEC 60898-1.

  • Pole Configuration: Single Pole (TP) for three-phase systems.

  • Terminal Capacity: Accommodates standard busbars and cable connections for easy installation.

  • Mounting: DIN rail mountable, suitable for modular distribution boards.

  • Toggle Position Indicator: Clear ON/OFF indication for easy operational awareness.

  • Reliable Arc Quenching: Enhanced arc chamber design for faster interruption and increased safety.

  • Durability: High-quality materials ensure long operational life and mechanical endurance.

Model Current Rating Application Example
6HS06B 6A Small lighting circuits or control panels
6HS10B 10A Lighting, small equipment loads
6HS16B 16A Sockets, small motor circuits
6HS20B 20A Mixed load circuits, HVAC control
6HS32B 32A Ring mains, heavy appliance circuits
6HS40B 40A Sub-main circuits, distribution boards
6HS63B 63A High-load circuits, heavy-duty appliances
