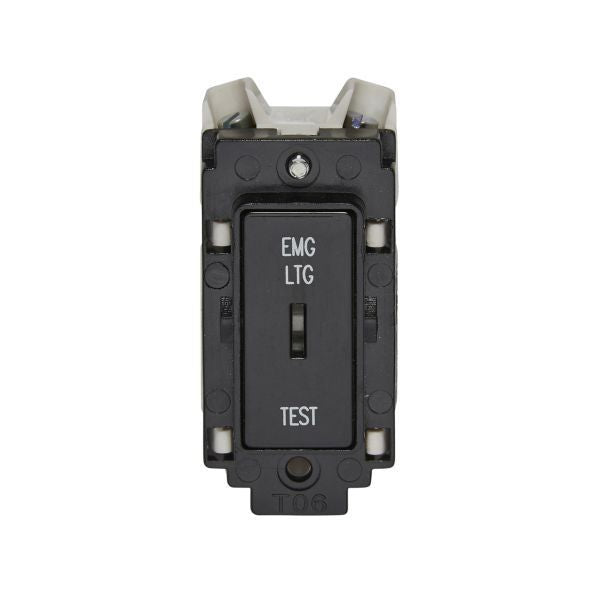

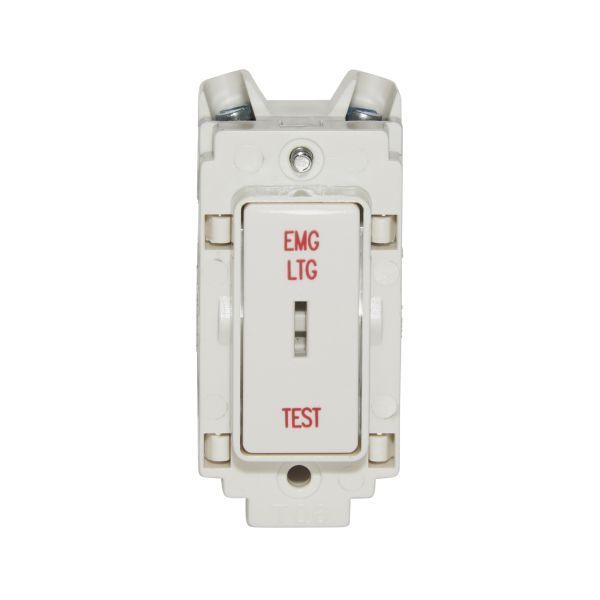

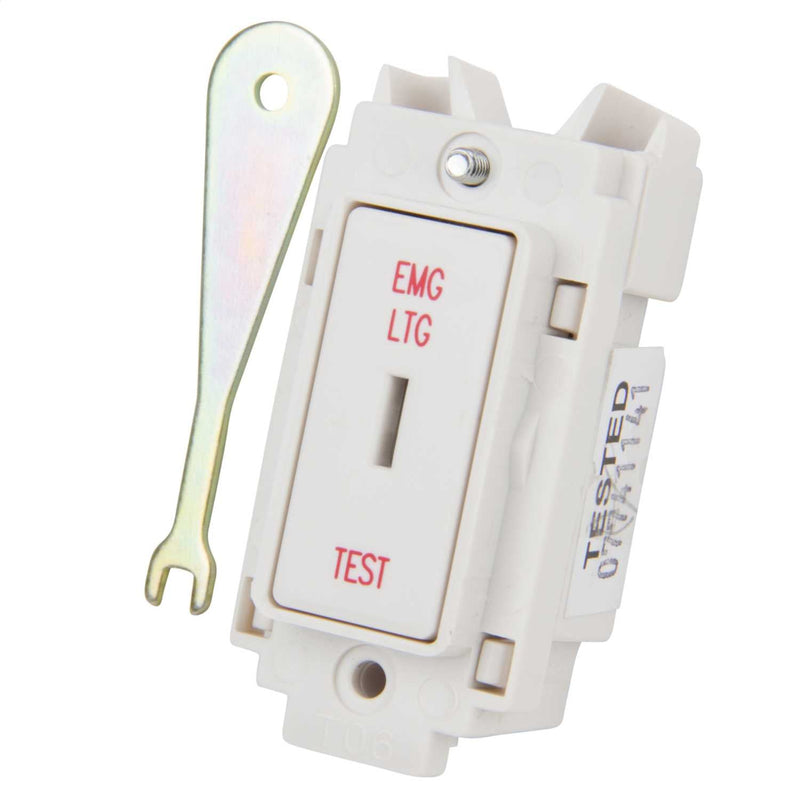

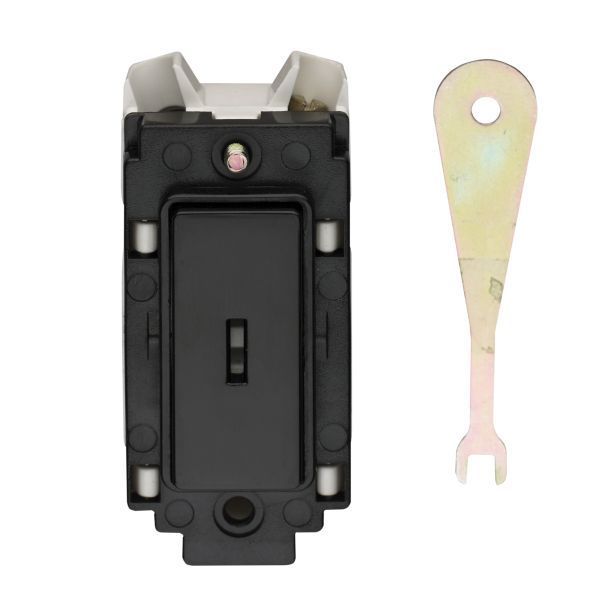

The Crabtree 20AX 2 Way Grid Switch With Key is a high-performance control switch designed for reliable operation and enhanced safety in lighting circuits. Engineered with durable thermoplastic construction and key-operated functionality, it is ideal for controlled access applications like emergency lighting systems while ensuring long-lasting performance and modern aesthetics.
• Key Operated Control: Secure switching mechanism with key operation, ideal for restricted or emergency lighting control.
• 20AX Rated Performance: Fully rated for fluorescent loads, ensuring efficient and stable operation.
• Durable Thermoplastic Build: High-quality, halogen-free material for safety and long-term durability.
• Glossy Finish Design: Clean and modern look available in white, black & red variants.
• Two-Way Switching: Flexible control from multiple locations for convenience.
• Printed Emergency Function: Clearly marked ‘Emergency Light Test’ for easy identification and use.
• Safe & Certified: Complies with BS EN 60669-1, CE & UKCA standards with IP2X protection.
• Material: Thermoplastic, halogen free, glossy finish
• Voltage & Current Rating: 250V, 20A, 50Hz (20AX fluorescent load)
• Wiring System: Two-way switch, screwed terminal connection
• Terminal Capacity: L&N 3 x 2.5, 2 x 4.0, 1 x 6.0 mm²
• Mounting: Module frame, screw mounting
• Operation: Key operated switch, no rocker
• Dimensions: 25mm (W) x 55.5mm (H) x 25mm (D)
• Built-in Depth: 20.5mm
• Minimum Box Depth: 25mm
• IP Rating: IP2X
