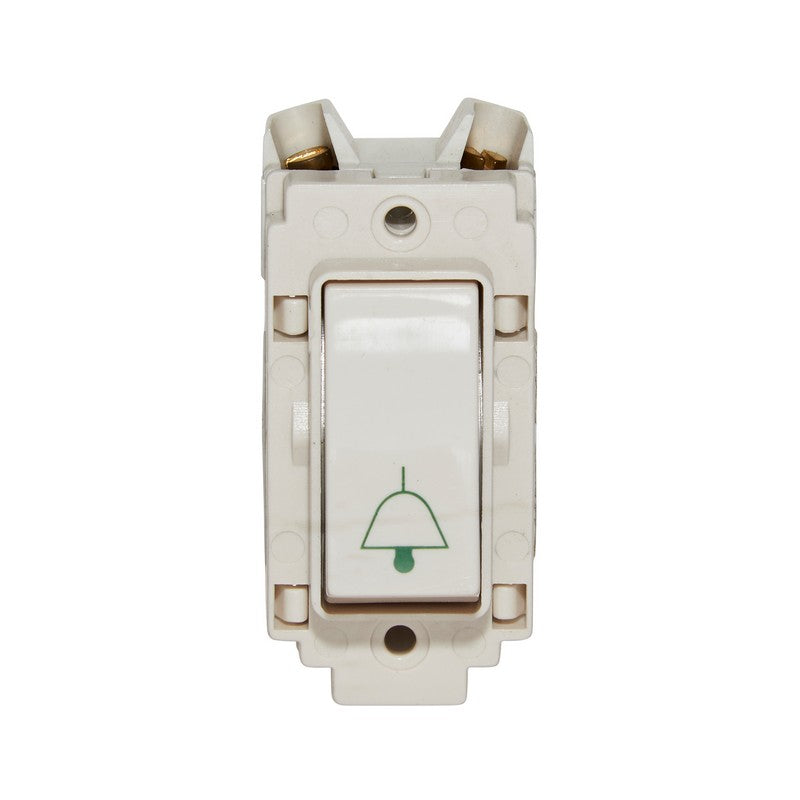

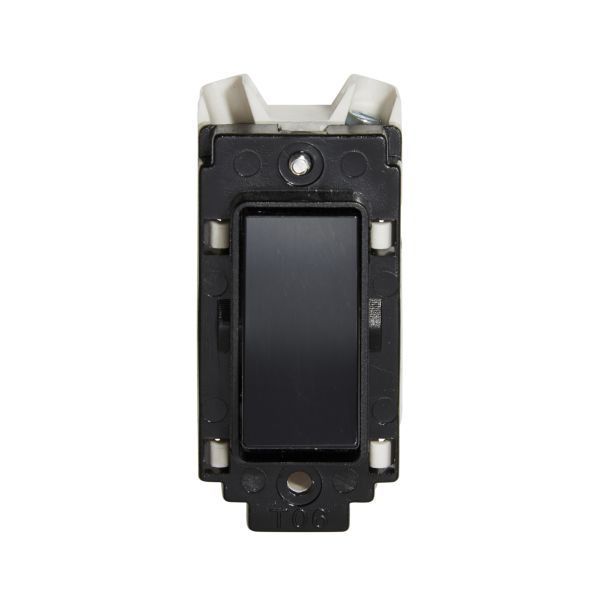

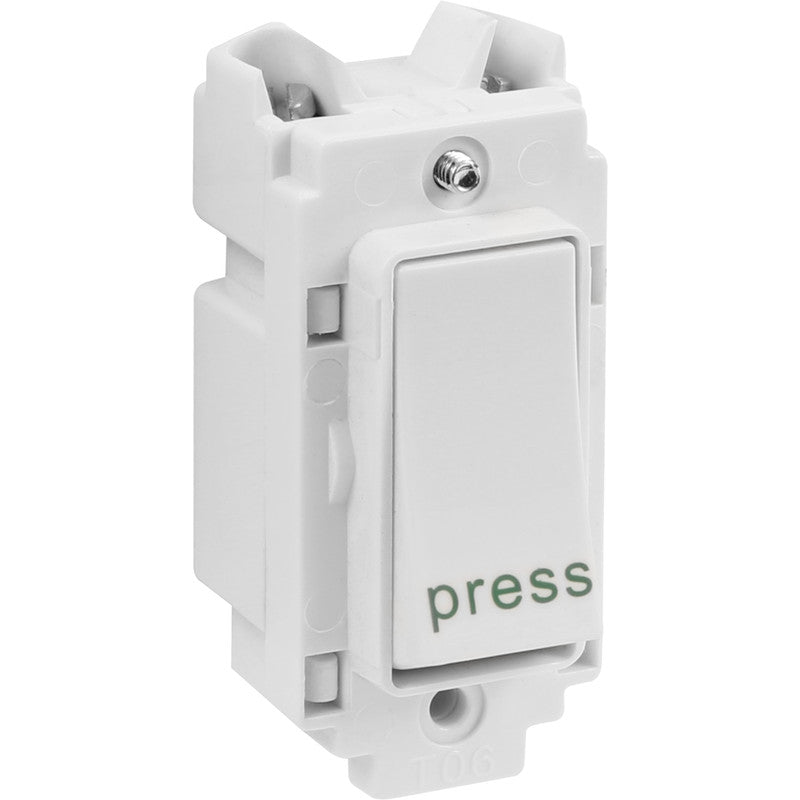

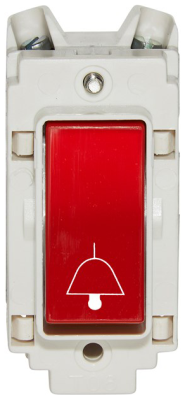

Crabtree 10A Retractive Grid Switch

SKU 4489
£5.83
  • checkmark
    Family-run, Birmingham-based business
  • checkmark
    Quick dispatch across the UK
  • checkmark
    Trade and retail welcome
Model

Guaranteed Safe & Secure Checkout
  • Apple Pay
  • Google Pay
  • PayPal
  • Shop Pay

The Crabtree 10A Retractive Grid Switch is a reliable and responsive switching solution designed for momentary operations like bell or signal control. Built with durable thermoplastic and a clean glossy finish, it offers smooth push-button functionality with dependable performance for modern electrical installations.

Key Features :


Retractive Push Operation: Momentary (bell-type) switch with smooth rocker/button action for instant control.
10A Fully Rated: Supports up to 10A load, suitable for residential and light commercial use.
Compact Grid Module: Single-module design ideal for modular switch systems and flexible configurations.
Durable Thermoplastic Build: Halogen-free, high-quality plastic ensures safety and longevity.
Screw Fixed Mounting: Secure installation with included mounting plate for stability.
Glossy Finish: Clean and minimal design to match modern interiors.
Certified Safety: Complies with BS EN 60669-1, CE & UKCA approved with IP2X protection.

Specifications :


Material: Thermoplastic, halogen free, glossy white & black finish
Voltage & Current Rating: 250V, 10A, 50Hz
Operation: Retractive rocker/button (push button switch), single rocker
Wiring System: Two-way switch with screwed terminal connection
Terminal Capacity: L&N 4 x 1.0, 3 x 1.5, 1 x 2.5 mm²
Mounting: Module frame, screw mounting with mounting plate
Protection Rating: IP2X
Dimensions: 25mm (W) x 55.5mm (H) x 31mm (D)
Built-in Depth: 20.5mm (Minimum box depth 25mm)
Compliance: BS EN 60669-1, CE, UKCA, WEEE
