Single Pole 10kA D Curve MCB 6a - 63a

by Hager
SKU NDN106A
£8.16
  • checkmark
    Family-run, Birmingham-based business
  • checkmark
    Quick dispatch across the UK
  • checkmark
    Trade and retail welcome
Amperage

Guaranteed Safe & Secure Checkout
  • Apple Pay
  • Google Pay
  • PayPal
  • Shop Pay

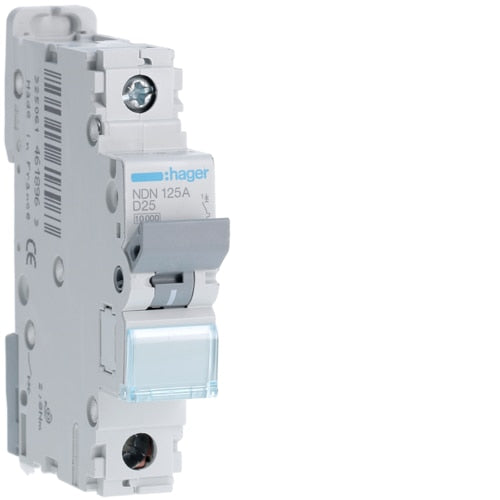

*Please note 1st image is of the 6A version* Hager Single Pole 10kA D Curve MCB ranges from 6a - 63a, Select your option from the dropdown. The hager MCBs ensure the protection of circuits against short circuits and against overload current.
Number of poles
1 P
Type of pole
1 P
Curve
D
Main electrical features
Rated operational voltage Ue
230 / 400 V
Type of supply voltage
AC
Voltage
Rated insulation voltage
500 V
Rated impulse withstand voltage
6000 V
Electric current
Rated service breaking capacity Ics AC according IEC 60898-1
7.5 kA
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1
10 kA
Electric current / temperature
Rating current 30°C
6 A - 63 A
Dimensions
Depth of installed product
70 mm
Height of installed product
83 mm
Width of installed product
17.5 mm
Power
Total power loss under IN
1.33 W
Endurance
Electric endurance in number of cycles
4000
Number of mechanical operations
20000
Installation, mounting
Tightening torque
2,8Nm
Equipment
Can be accessorized
Yes
Standards
Standard text
EN 60898-1 ; IEC 60947-2
European directive WEEE
concerned
Safety
Protection index IP
IP20
Use conditions
Operating temperature
-25…70 °C

YOU MAY ALSO LIKE

Popular products from our range.

Hager ADB420U 20a 30ma 10ka Type B RCBO

Hager ADB420U 20a 30ma 10ka Type B RCBO

£32.95
Single Pole 1 Module C Curve 10kA 30mA Type A RCBO 6a - 45a

Single Pole 1 Module C Curve 10kA 30mA Type A RCBO 6a - 45a

£32.95
Single Pole 10kA C Curve MCB 6a - 63a

Single Pole 10kA C Curve MCB 6a - 63a

£7.14
Single Pole 10kA D Curve MCB 6a - 63a

Single Pole 10kA D Curve MCB 6a - 63a

£8.16
Triple Pole 10kA D Curve MCB 6a - 63a

Triple Pole 10kA D Curve MCB 6a - 63a

£37.14

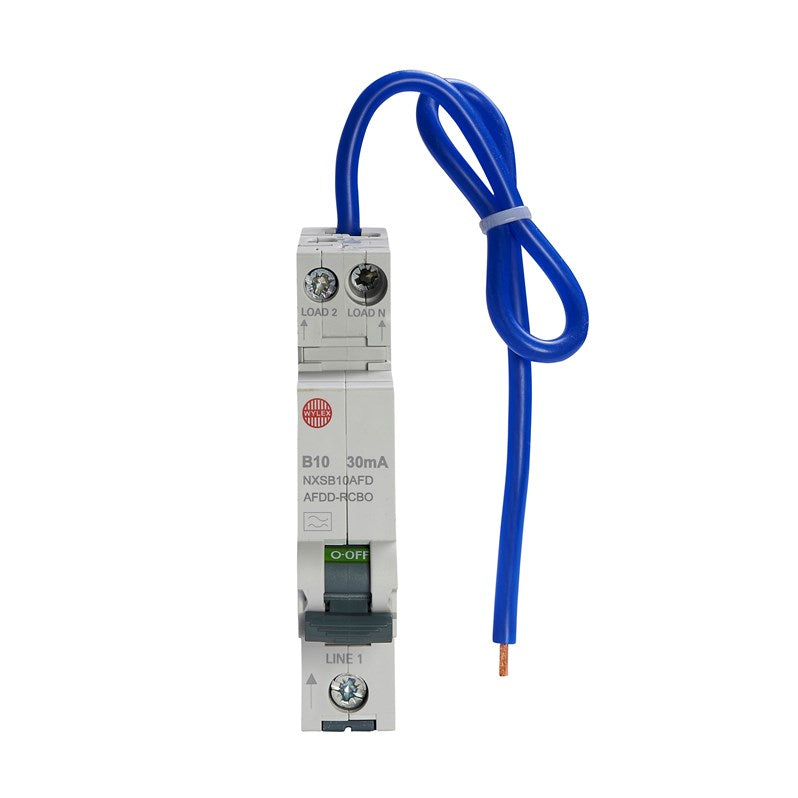

Wylex NXSB10AFD RCBO/AFDD 1MW 1P+SWN
