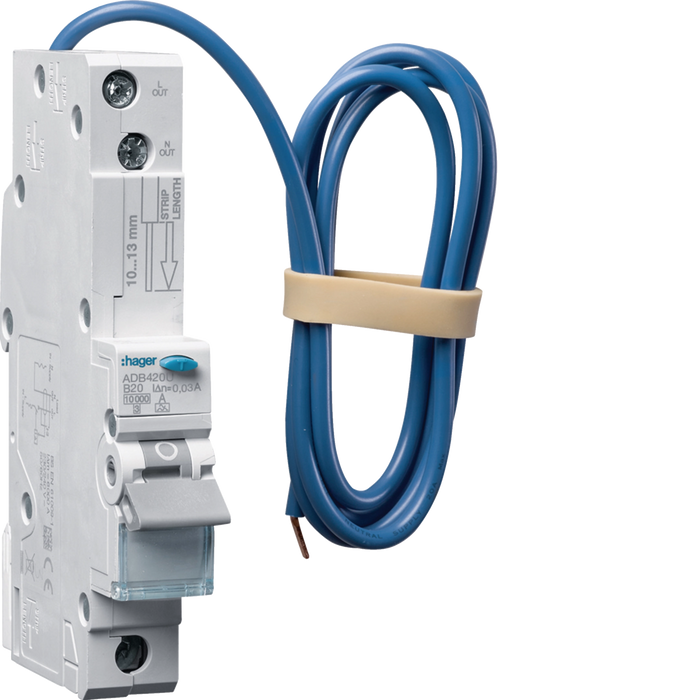

Hager ADB420U 20a 30ma 10ka Type B RCBO

Hager ADB420U 20a 30ma 10ka Type B RCBO

by Hager
SKU ADB420U
£32.95
£32.95 - £32.95
£32.95 - £32.95
£32.95

The Hager RCBO Range, designed for electrical safety in both commercial and domestic settings. This single pole, single module RCBO boasts a 10kA breaking capacity and 30mA residual current sensitivity, providing both overcurrent and fault protection in one compact unit. Available with an ampage range from 6a- 45a, select your option from the dropdown menu.

Architecture
  • Neutral position: right
  • Number of poles: 1 P
  • Type of pole: 1 P
  • Fixing mode: DIN rail type O (symmetrical)
  • Curve: B
Main electrical features
  • Rated operational voltage Ue: 230 / 240 V
  • Frequency: 50/60 Hz
  • Type of supply voltage: AC
Voltage
  • Rated insulation voltage: 250 V
  • Rated impulse withstand voltage: 4000 V
Electric current
  • Rated residual operating current: 30 mA
Electric current/temperature
  • Rating current 30°C: 6 A - 45 A
Dimensions
  • Depth of installed product: 70 mm
  • Height of installed product: 115 mm
  • Width of installed product: 17.8 mm
Power
  • Total power loss under IN: 2 W
Endurance
  • Electric endurance in number of cycles: 2000
  • Number of mechanical operations: 10000
Equipment
  • Quick connect: no
  • Can be accessorized: No
Standards
  • Standard text: BS 61009-1 ; EN 61009-1
  • European directive WEEE: concerned
Safety
  • Protection index IP: IP20
  • Residual current type: A
Use conditions
  • Operating temperature: -25…40 °C
