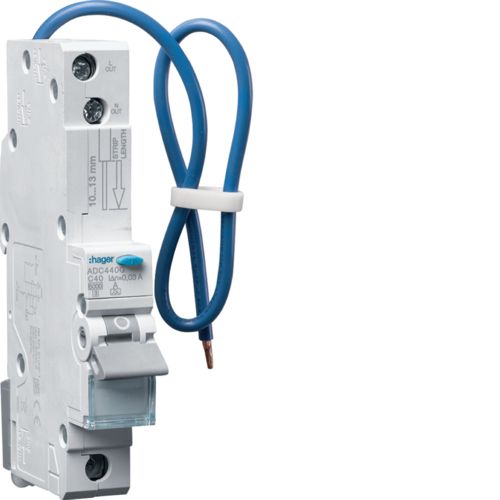

Single Pole 1 Module C Curve 10kA 30mA Type A RCBO 6a - 45a

by Hager
SKU ADC406U
$43.00
Original price $43.00 - Original price $43.00
Original price
$43.00 - $43.00
Current price $43.00

The Hager RCBO Range, designed for electrical safety in both commercial and domestic settings. This single pole, single module RCBO boasts a 10kA breaking capacity and 30mA residual current sensitivity, providing both overcurrent and fault protection in one compact unit. Available with an ampage range from 6a- 45a, select your option from the dropdown menu.

Architecture
  • Neutral position
    right
  • Number of poles
    1 P
  • Type of pole
    1 P
  • Fixing mode
    DIN rail type O (symmetrical)
  • Curve
    C
Main electrical features
  • Rated operational voltage Ue
    230 / 240 V
  • Frequency
    50/60 Hz
  • Type of supply voltage
    AC
Voltage
  • Rated insulation voltage
    250 V
  • Rated impulse withstand voltage
    4000 V
Electric current
  • Rated residual operating current
    30 mA
Electric current / temperature
  • Rating current 30°C
    6 A - 45 A
Dimensions
  • Depth of installed product
    70 mm
  • Height of installed product
    115 mm
  • Width of installed product
    17.8 mm
Power
  • Total power loss under IN
    2 W
Endurance
  • Electric endurance in number of cycles
    2000
  • Number of mechanical operations
    10000
Equipment
  • Quick connect
    no
  • Can be accessorized
    No
Standards
  • Standard text
    BS 61009-1 ; EN 61009-1
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP20
  • Residual current type
    A
Use conditions
  • Operating temperature
    -25…40 °C
>>>>
