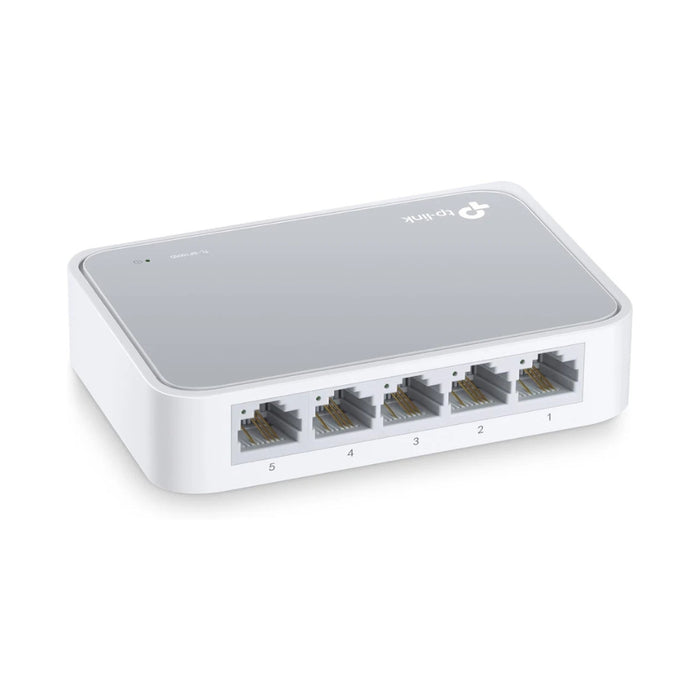

tp-link 5-Port 10/100Mbps Desktop Switch - TL-SF1005D
tp-link 5-Port 10/100Mbps Desktop Switch - TL-SF1005D
5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop design
Plug and play, no configuration required
What This Product Does - The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance - TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Easy to Use - The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications:
Hardware Features:
| Interface |
5 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter(Output: 5.0VDC / 0.6A) |
| Dimensions ( W x D x H ) | 4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm) |
| Max Power Consumption | 1.87W(220V/50Hz) |
| Max Heat Dissipation | 6.38BTU/h |
Software Features:
| Transfer Method | Store and Forward |
| Advanced Functions |
Green Technology 802.3X Flow Control, Back Pressure |
Others:
| Certification | FCC, CE, RoHs |
| Package Contents |
5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
