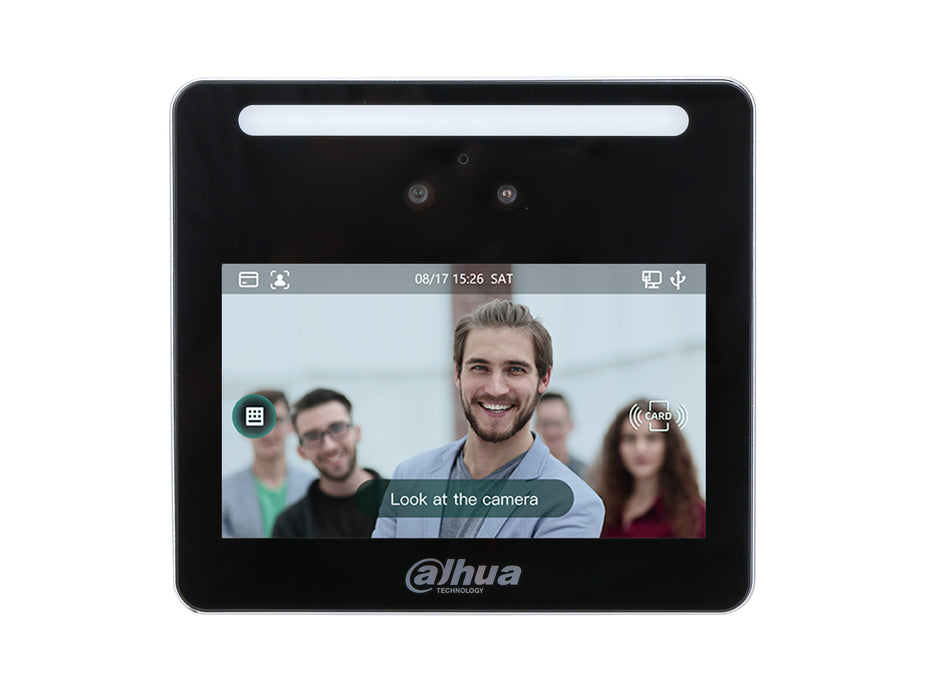

Dahua Face Recognition Access Controller DHI- ASI3213G- MW

Dahua Face Recognition Access Controller DHI- ASI3213G- MW

Dahua Face Recognition Access Controller DHI- ASI3213G- MW

by CCTV
SKU DHI-ASI3213G-MW
£89.99

Description

  •  4.3-inch LCD touch screen; resolution 480×272
  • With a 2 MP wide-angle dual lens, white fill light, IR light
  • Support face, card and password unlock; unlock by period
  • User data can be stored at the access controller; it can hold 1500 face images and work without a network
  • Face-camera distance: 0.3m-1.5m
  • Face verification accuracy 99.5%; face comparison speed 0.3s per person; low false recognition rate supports liveness detection



System Specifications
Main ProcessorEmbedded Processor
Network ProtocolIPv4, RTSP, RTP, TCP, UDP, P2P
OSDP ProtocolSupport
InteroperabilityCGI, SDK
Display
Screen Size4.3 inch TFT screen
Screen TypeCapacitive touch screen
Resolution480 × 272
Camera
Camera Type2MP CMOS
Light CompensationAuto white light fill light, Auto IR fill light
General Functions
Voice PromptSupport
Housing MaterialPC + ABS
Unlock ModesCard / Password / Face unlock
Combination unlock
Card Reader TypeIC Card
Period List128
Holiday Period128
First-card UnlockSupport
Remote VerificationSupport
Peripheral Card Reader1 × RS-485
Multi-card UnlockSupport
Real-time SurveillanceSupport
Web ConfigurationSupport
Face Recognition
Face-camera Distance0.3 m – 1.5 m
Accuracy99.5%
Recognition Speed0.3 s
Capacity
User Amount1500
Face Amount1500
Card Amount1500
Password Amount1500
Storage Records150,000
Ports & Interfaces
RS-4851
USB1 × USB 2.0
Network1 × 10/100 Mbps Ethernet
Alarm Input1
Unlock Button1
Door Status Detection1
Door Lock Control1
Alarm Functions
Anti-passbackSupport
Tamper AlarmSupport
Duress AlarmSupport
Door Sensor TimeoutSupport
Illegal Intrusion AlarmSupport
Illegal Card Threshold AlarmSupport
General
Power SupplyDC 12V 1.5A
Power Consumption≤ 18W
Dimensions116 × 107 × 22 mm
Operating Temperature-10°C to +55°C (14°F to 131°F)
Operating Humidity5%RH – 95%RH (non-condensing)
Working EnvironmentIndoor
InstallationDesktop & Wall Mount
CertificationsCE, FCC
