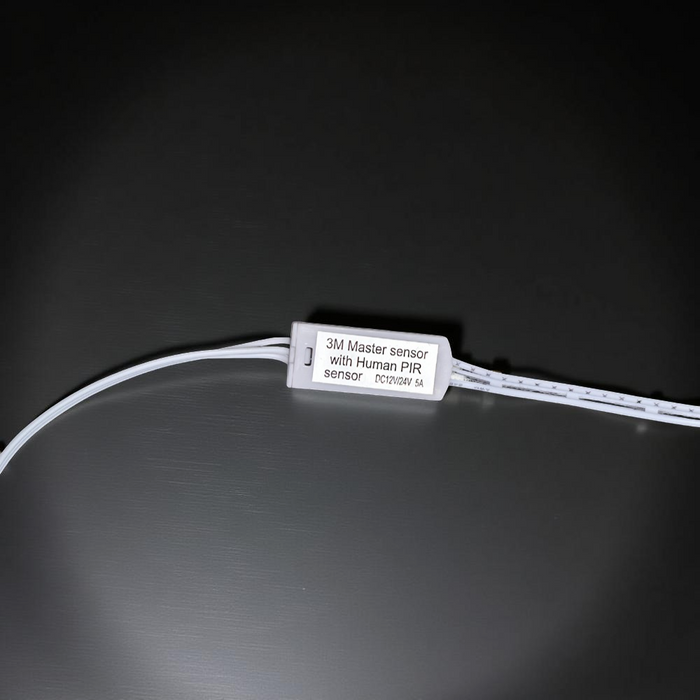

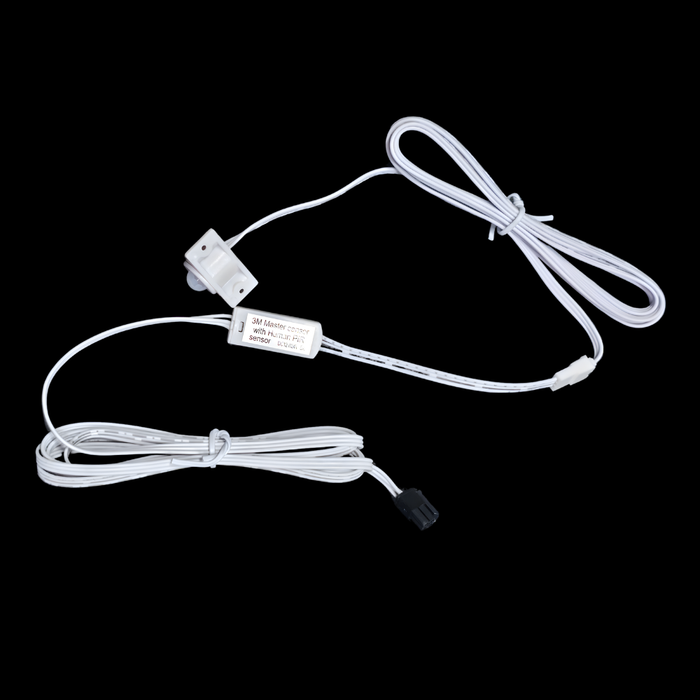

3M Master Sensor With Human PIR Sensor For DuPont Power Supplie

3M Master Sensor With Human PIR Sensor For DuPont Power Supplie

3M Master Sensor With Human PIR Sensor For DuPont Power Supplie

by SND Electrical
SKU KU-MUL-PIR-3000
£9.99

Description

The 3M Master Sensor is an advanced human motion detection module designed to automate and enhance lighting and electronic systems. Using a high-sensitivity Passive Infrared (PIR) sensor, it reliably detects the presence of people within its range and triggers connected devices. Supporting both DC 12V and 24V input and up to 5A output load, this compact yet powerful sensor is ideal for LED lighting, under-cabinet lights, stair lights, corridors, closets, and smart automation projects. Built for easy installation and stable performance, it helps save energy by ensuring lights and devices operate only when needed.



Key Features:

  • Human Motion Detection: Accurately senses movement using PIR technology.
  • Wide Voltage Support: Works with both DC 12V and DC 24V systems.
  • 5A Load Capacity: Controls devices up to 5 amperes safely.
  • Energy Efficiency: Automatically turns lights/devices ON when motion is detected and OFF after no activity.
  • Compact Design: Small footprint for easy integration in lighting fixtures and enclosures.
  • Versatile Applications: Ideal for LED strips, cabinets, stair lighting, hallways, and automation setups.
  • Simple Installation: Designed for quick setup with standard wiring.
  • Reliable Operation: Stable performance with consistent motion detection.

Technical Specification

Specification Details
Product Name 3M Master Sensor with Human PIR Sensor
Sensor Type PIR (Passive Infrared) Motion Sensor
Detection Type Human Motion
Operating Voltage DC 12V / DC 24V
Maximum Load Current 5A
Output Active High/Low (motion-triggered)
Detection Range Up to ~3 meters (typical)
Detection Angle Approximately 120°
Response Time ≈ 0.5–1s
Load Type LED lights, DC devices, automation systems
Operating Temperature -20°C to +60°C
Mounting Surface / Panel Mount
Body Material ABS Plastic
Dimensions Compact (manufacturer-specific)
