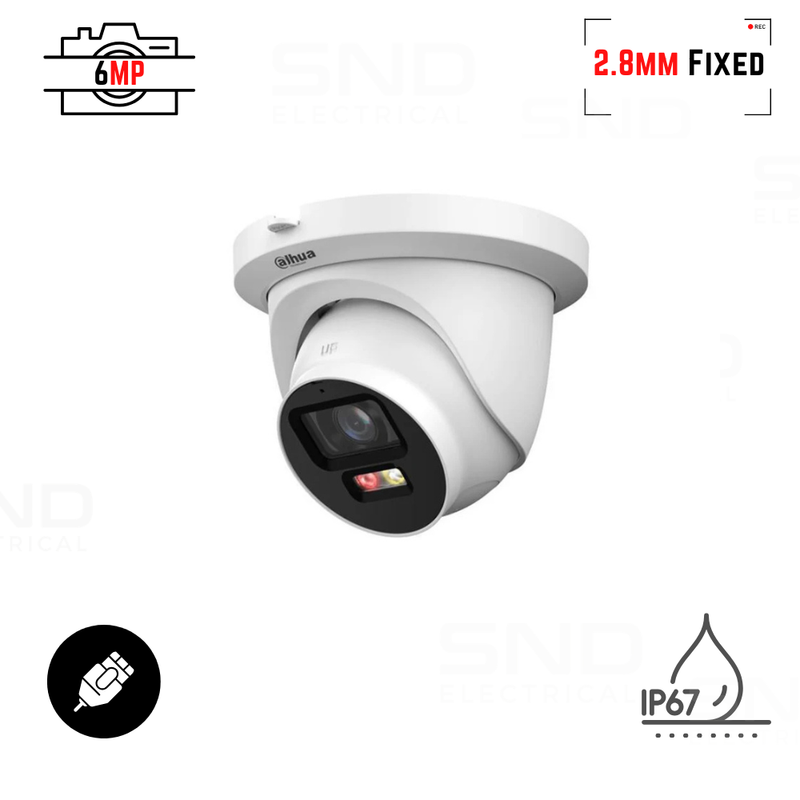

Dahua DH-IPC-HDW2649TMP-S-T-PV - 6MP TiOC Lite Fixed-focal Eyeball WizSense Network Camera

The Dahua DH-IPC-HDW2649TMP-S-T-PV is a high-performance 6MP WizSense TiOC Lite network camera designed for smart, reliable, and full-color surveillance. Built with advanced AI capabilities, it delivers clear ultra-high-definition video with intelligent detection of humans and vehicles, reducing false alarms and improving security accuracy.

Equipped with Smart Dual Light technology, the camera automatically switches between infrared and warm white light to ensure clear imaging in all lighting conditions. It supports up to 30 meters of illumination range, providing reliable night-time monitoring with either invisible IR or deterrent visible light.

With WizSense AI features, including perimeter protection (tripwire and intrusion detection) and SMD Plus, the camera intelligently filters irrelevant motion events and focuses on real threats. It also supports two-way audio communication, allowing real-time interaction through a built-in microphone and speaker.

Key Features

• 6MP Ultra HD Resolution – Delivers crystal-clear video (3288 × 1850) for detailed surveillance
• Full-Colour Night Monitoring (TiOC Lite) – Captures vivid colour images even in low-light conditions
• Smart Dual Light Technology – Automatically switches between IR and warm white light for optimal visibility
• Up to 30m Illumination Range – Reliable night coverage with both infrared and visible light
• WizSense AI Detection – Advanced human and vehicle classification to reduce false alarms
• Perimeter Protection – Supports tripwire and intrusion detection for enhanced security
• SMD Plus (Smart Motion Detection) – Filters out irrelevant motion (e.g., animals, leaves)
• Two-Way Audio – Built-in microphone and speaker for real-time communication
• H.265+ Smart Compression – Saves bandwidth and storage without compromising quality
• Flexible Storage Options – Supports MicroSD (up to 256GB), NAS, and FTP/SFTP
• Wide Field of View Options – Available in 2.8mm and 3.6mm lenses for different coverage needs
• PoE Support – Simplified installation with Power over Ethernet
• IP67 Weatherproof Rating – Suitable for harsh outdoor environments

Specifications

Camera

• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 6MP (3288 × 1850)
• Scanning System: Progressive
• ROM / RAM: 128 MB / 256 MB
• Electronic Shutter: 1/3 s – 1/100,000 s (Auto / Manual)
• S/N Ratio: > 56 dB
• Minimum Illumination:
  • Colour: 0.007–0.008 lux @ F1.6
  • B/W: 0.0007–0.0008 lux @ F1.6
  • 0 lux with illuminator on

Illumination

• IR Distance: Up to 30 m
• Warm Light Distance: Up to 30 m
• Illuminators: 1 IR LED + 1 Warm Light LED
• Control Mode: Auto / Manual

Lens

• Type: Fixed-focal
• Mount: M12
• Focal Length: 2.8 mm / 3.6 mm
• Aperture: F1.6
• Iris: Fixed

Field of View

• 2.8 mm: H ~112°, V ~61°, D ~132°
• 3.6 mm: H ~91°, V ~46°, D ~110°

Focus Distance

• 2.8 mm: ~1.0 m
• 3.6 mm: ~1.7 m

Angle Adjustment

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Smart Functions (WizSense AI)

• IVS Perimeter Protection: Intrusion & Tripwire Detection
• Human & Vehicle Classification
• SMD Plus: Advanced motion detection with false alarm filtering
• Smart Search: Event-based video retrieval via NVR

Audio

• Built-in Microphone & Speaker
• Two-Way Audio Support

Network & Storage

• Ethernet: RJ-45 (10/100 Mbps)
• Supported Protocols: IPv4/IPv6, RTSP, HTTP, FTP, SMTP, etc.
• Storage Options: MicroSD (up to 256 GB), NAS, FTP/SFTP
• ONVIF Compatible

Video

• Compression: H.265 / H.264
• Smart Codec: H.265+ / H.264+
• Max Frame Rate: Up to 20 fps (6MP)
• Dual Stream Support

General

• Power Supply: 12V DC / PoE
• Power Consumption: ~3.4 W (Typical), up to ~7.5 W
• Protection Rating: IP67 (Weatherproof)
• Operating Temperature: -40°C to +60°C
• Construction: Metal housing with reinforced structure
