H8106 Flush/Recessed Ceiling/Wall LED Aluminum Profile (24.7X7X12.4)

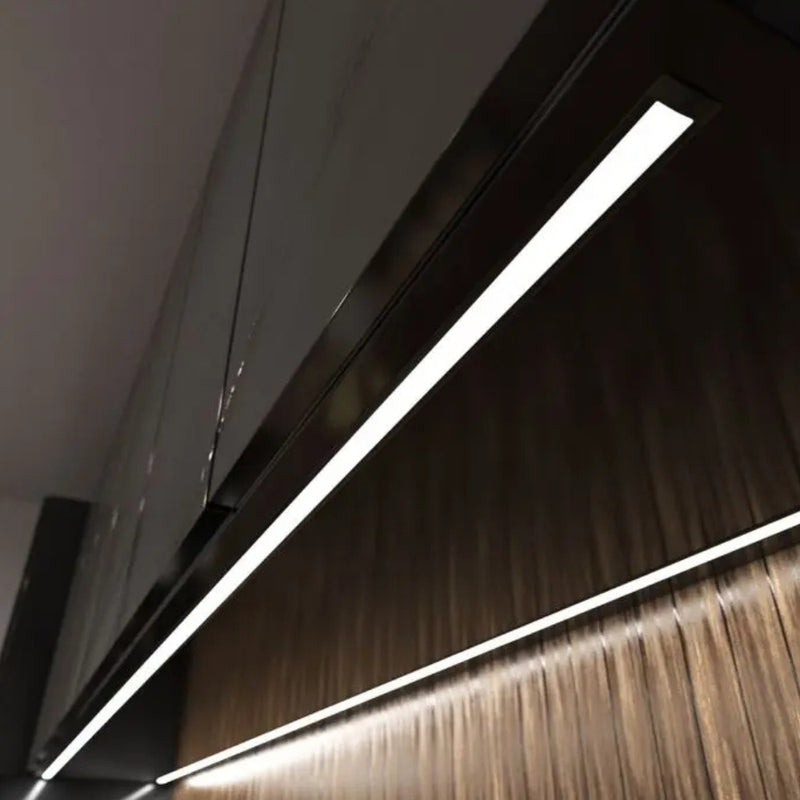

Achieve clean, minimalist lighting accents with the H8106 Flush Recessed LED Aluminium Profile. Featuring an ultra-shallow 7 mm profile depth, this channel is engineered to slot effortlessly into shallow ceiling grooves, drywall slots, wall panels, or bespoke cabinetry. The low-profile structure ensures that your lighting installations look deeply integrated and premium, without breaking through deeper structural barriers behind the mounting surface.

Manufactured from premium-grade aluminium, the H8106 serves as a high-performance passive heat sink. It draws operational heat rapidly away from the LED chips, preventing thermal degradation and dramatically extending the lifespan of your LED strips. Complete with a clip-on milky diffuser, the channel effortlessly softens your light output, transforming harsh, pinpoint LED dots into a smooth, visually comfortable linear glow.

Key Features

• Ultra-Shallow 7mm Depth: Slim design allows for flush, recessed installation into narrow or shallow channels where space behind the surface is heavily limited.

• Optimal Thermal Management: Solid aluminium body pulls damaging heat away from delicate LEDs to secure long-term reliability and brightness.

• Soft Milky Diffusion: Includes a premium clip-in diffuser lens that effectively blends individual LED hotspots into an uninterrupted, even line of light.

• Spacious 12.4mm Internal Channel: Tailored to house standard-width, high-density flexible or rigid LED tape configurations with room to spare.

• Resilient Climate Performance: Rated for steady performance in indoor settings with a verified operational temperature threshold stretching from -20°C up to +45°C.

Technical Specifications

• Product Name: H8106 Flush/Recessed Ceiling/Wall LED Aluminium Profile

• Model Number: H8106 (EAN: 3800157636780)

• Material: Premium Grade Aluminium Body

• Profile Colour Finish: Silver

• Installation Layout: Recessed / Flush Mounted

• IP Rating: IP20 (Indoor Rated)

• Operation Temperature Range: -20°C to +45°C

• Light Source Compatibility: Standard LED Strip Lights

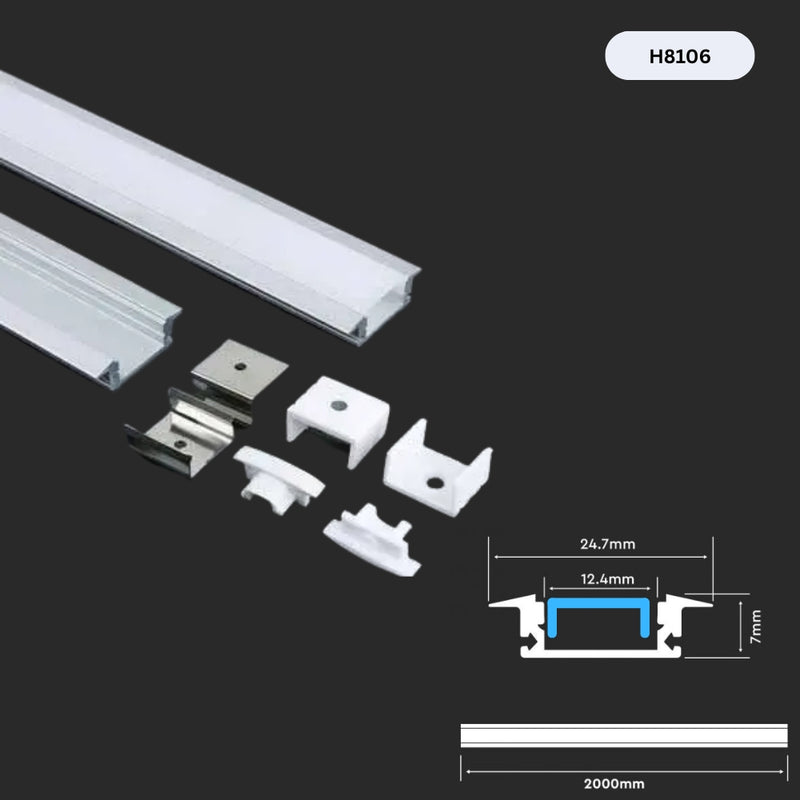

• Full Profile Dimensions: 2000 mm x 24.7 mm x 7.0 mm

• Internal Channel Width: 12.4 mm

• Single Unit Gross Weight: 0.264 Kgs

• Commodity Code: 94059900
