Hager VML914CUSPDRK 14 Way HI 100A Sw 2*100A 30mA RCCB SPD RKO

by Hager
SKU VML914CUSPDRK
$189.00
Original price $189.00 - Original price $189.00
Original price
$189.00 - $189.00
Current price $189.00

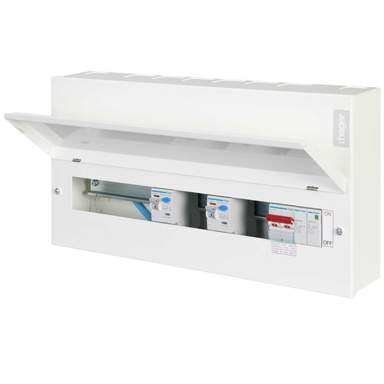

Hager 14 Way Dual RCD Configurable High Integrity Metal Clad Consumer Unit with SPD

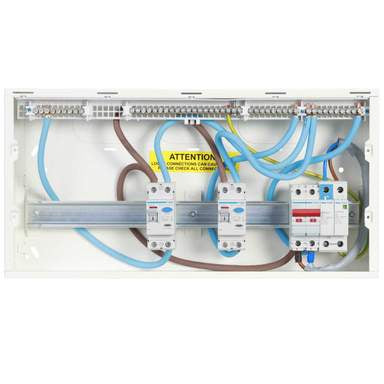

  • Supplied with a full metal DIN rail, 100A switch disconnector incomer, 2 x 100A 30mA RCDs and a full complement of earth and neutral terminals along with marking labels, busbar and instructions
  • All Design 10 consumer units contain top, bottom and rear knockouts
  • Type 2 SPD fitted
  • Conforms to BS EN 61439-3 Including Annex ZB (16kA rating)
  • Board Configuration Configurable
  • Current Rating : 100A
  • Dimensions : (H)246 mm x (W)478 mm x (D)83 mm
  • Door Type : Top Hinged
  • Incoming Device : 100A Isolator
  • Incoming Terminal Capacity : 50mm²
  • Knockouts : Round
  • Material : Steel
  • Mounting : Surface
  • Number of Modules : 22
  • Number of Outgoing Ways : 14
  • Product Range Design : 10
  • Rcd Rating : 100A
  • Rcd Type : A
  • Standards BS EN : 61439-3
  • Surge Protection Fitted : Yes
  • Tripping Sensitivity : 30mA
  • Voltage Rating : 230V
  • Weight : 5.9kg

>>>>
