Hager VML955RK 10 Way 5+5 100A Sw 2*100A 30mA RCCB Type A Round KO

Hager VML955RK 10 Way 5+5 100A Sw 2*100A 30mA RCCB Type A Round KO

by Hager
SKU VML955RK
£79.49
£79.49 - £79.49
£79.49 - £79.49
£79.49

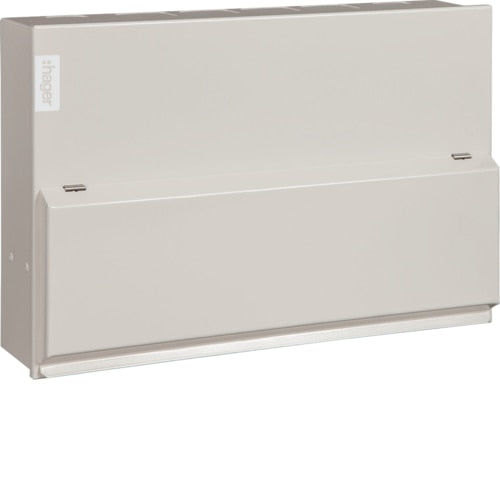

Hager 5 + 5 Dual 100A RCD Split Load Metal Clad Consumer Unit with Round Knockouts

  • 5 + 5 way split load consumer unit
  • Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator
  • Selection of round knockouts
  • Design 10 consumer units come with top, bottom, rear knockouts and a meter tail cable entry plate
  • Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
  • Design 10 board has ample cable space available even when RCBOs are fitted. The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
  • Conforms to BS EN 61439-3 Including Annex ZB
  • Board Configuration 5 + 5
  • Cable Entry Selection of Round Knockouts
  • Colour White
  • Current Rating 100A
  • Dimensions (H)246 mm x (W)370 mm x (D)100 mm
  • Door Type Top Hinged
  • Guarantee 1 Years
  • Incoming Device 100A Isolator
  • Incoming Terminal Capacity 50 mm²
  • Knockouts Round
  • Material Steel
  • Mounting Surface
  • Number of Modules 16
  • Number of Outgoing Ways 10
  • Product Range Design 10
  • Rcd Rating 100A
  • Rcd Type A
  • Standards BS EN 61439-3
  • Surge Protection Fitted No
  • Surge Protection Ready No
  • Tripping Sensitivity 30mA
  • Voltage Rating 230V
  • Weight 4.7kg
