Triple Pole 10kA B Curve MCB 6a - 63a

by Hager
SKU NBN306A
£32.50
Original price £32.50 - Original price £39.54
Original price
£32.50 - £39.54
Current price £32.50

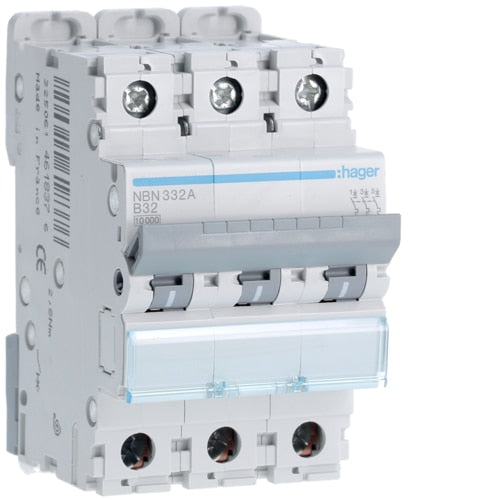

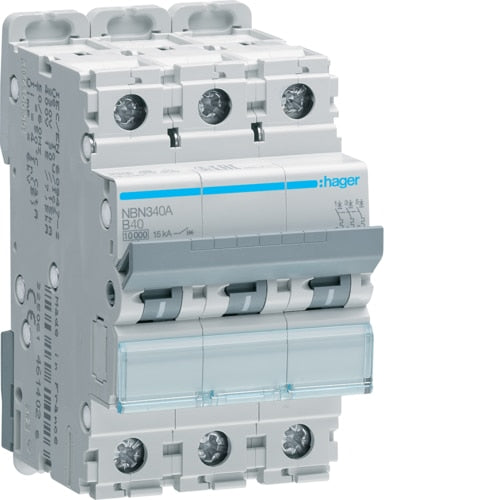

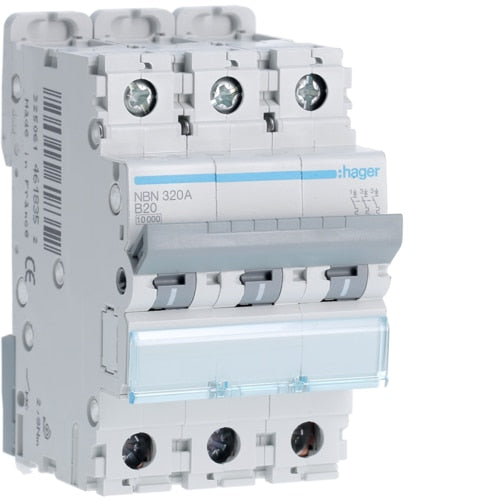

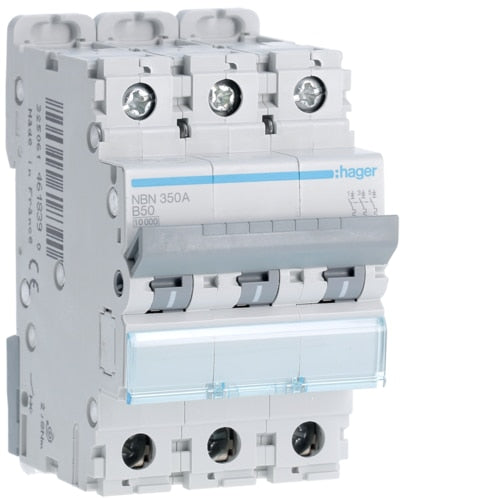

*Please note 1st image is of the 6A version* Hager Triple Pole 10kA B Curve MCB ranges from 6a - 63a, Select your option from the dropdown. The hager MCBs ensure the protection of circuits against short circuits and against overload current.

Architecture
  • Neutral position
    without neutral
  • Number of poles
    3 P
  • Type of pole
    3 P
  • Curve
    B
Main electrical features
  • Rated operational voltage Ue
    400 V
  • Type of supply voltage
    AC
Voltage
  • Rated insulation voltage
    500 V
  • Rated impulse withstand voltage
    6000 V
Electric current
  • Rated service breaking capacity Ics AC according IEC 60898-1
    7.5 kA
  • Rated service breaking capacity Ics under 400V AC according IEC 60947-2
    7.5 kA
  • Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1
    10 kA
Electric current / temperature
  • Rating current 30°C
    6 A
Dimensions
  • Depth of installed product
    70 mm
  • Height of installed product
    83 mm
  • Width of installed product
    52.5 mm
Power
  • Total power loss under IN
    4.06 W
Endurance
  • Electric endurance in number of cycles
    4000
  • Number of mechanical operations
    20000
Installation, mounting
  • Tightening torque
    2,8Nm
Equipment
  • Can be accessorized
    Yes
Standards
  • Standard text
    EN 60898-1 ; IEC 60947-2
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP20
Use conditions
  • Operating temperature
    -25…70 °C
