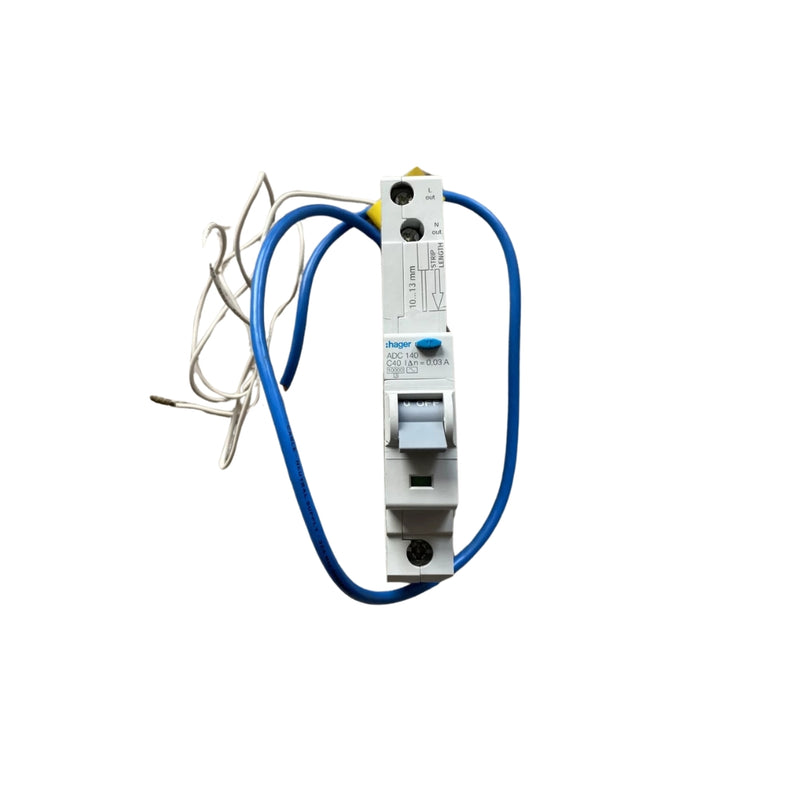

Hager 40A RCBO, 1 Pole, C Curve, 10kA ADC140

Hager 40A RCBO, 1 Pole, C Curve, 10kA ADC140

Hager 40A RCBO, 1 Pole, C Curve, 10kA ADC140

by Hager
SKU ADC140
£49.49

Description

The Hager ADC140 is a Single Pole, 40A, 230V, 30mA Type C RCBO. It offers protection against earth leakage as well as overloads and short circuits. It has an insulated DIN clip so it can be mounted in the board. It also has a positive indicator which shows whether it is ON or OFF.

Dimensions: 116x18x70mm

Circuit Breakers|Description|Product Circuit Breaker
Circuit Breakers|Description|Type (Cable Baskets) RCBO
Circuit Breakers|Description|Qualifier <None>
Circuit Breakers|Features|Pole Configuration SP
Circuit Breakers|Features|Mounting DIN Rail
Circuit Breakers|Features|Trip Type Type C
Circuit Breakers|Features|Short Circuit Rating 10 kA
Circuit Breakers|Features|Sensitivity 30 mA
Circuit Breakers|Dimensions|Cable Capacity 16 (Rigid) 10 (Flexible) Sq mm
Circuit Breakers|Dimensions|Width 17.5 mm
Circuit Breakers|Technical Data|Current Rating 40 A
Circuit Breakers|Technical Data|Voltage 127 | 230 V
Circuit Breakers|General|Standards BS EN 61009 IEC 1009
Dimension 40A 30mA 10kA
Circuit Breakers|Description|Type RCBO
Manufacturer Hager Ltd - Energy Distribution
