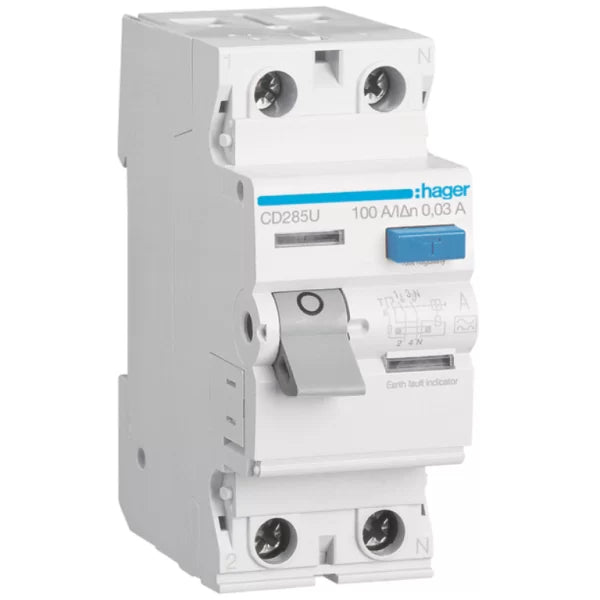

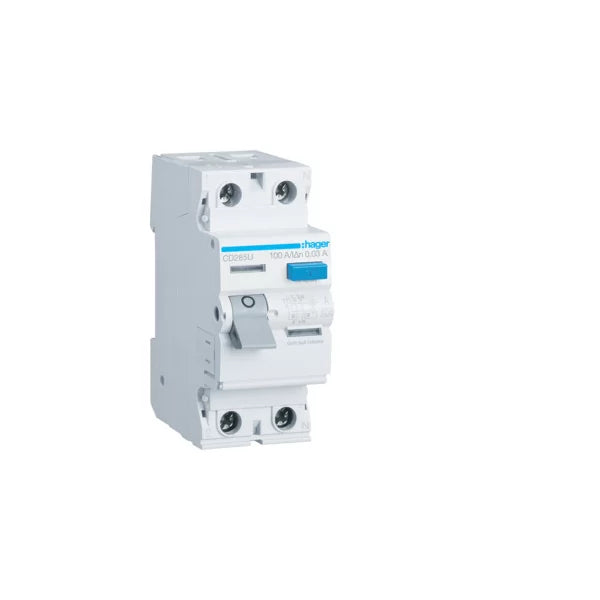

Hager CD285U 2 Module Double Pole Type A (Class A) RCD 100A 30mA

Hager CD285U 2 Module Double Pole Type A (Class A) RCD 100A 30mA

Hager CD285U 2 Module Double Pole Type A (Class A) RCD 100A 30mA

by Hager
SKU CD285U
£39.99

Description

2 Module Double Pole Type A (Class A) RCD 100A 30mA – Reliable Earth Fault Protection

***New Without Box***

The 2 Module Double Pole Type A RCD (Residual Current Device) is designed to provide effective protection against earth faults and leakage currents, ensuring electrical safety in residential, commercial, and industrial installations. With a 100A rating and 30mA sensitivity, this RCD quickly disconnects power in the event of a fault, reducing the risk of electric shock and equipment damage.

  • 100A Rated Capacity – Provides reliable earth fault protection for low to medium load applications.
  • Double Pole Design – Simultaneously disconnects both live and neutral conductors, ensuring enhanced safety.
  • Type A (Class A) Sensitivity – Detects AC and pulsating DC residual currents, offering superior protection for modern electronic loads.
  • 30mA Trip Sensitivity – Complies with regulations for personal protection, ensuring fast disconnection in case of faults.
  • 2 Module Width – Compact design for efficient integration into consumer units and distribution boards.
  • User-Friendly Installation – Features clearly marked terminals and a secure mounting system.
  • 18th Edition Compliant – Fully meets UK Wiring Regulations, ensuring safe and regulation-compliant installation.

Technical Specification

Ean Code 3250611615033
Trip Type Type A
Cable Capacity 50 mm2
Sensitivity 30 mA
Product RCD
Type RCCB
Ingress Protection IP20
Voltage 230 V
Pole Configuration Double Pole (2P)
Mounting DIN Rail
Width 35 mm
Current Rating 100A
Standards BSEN61008
Rcd Sensitivity 30 mA
Number Of Poles Double Pole (2P)
Number Of Modules 2
