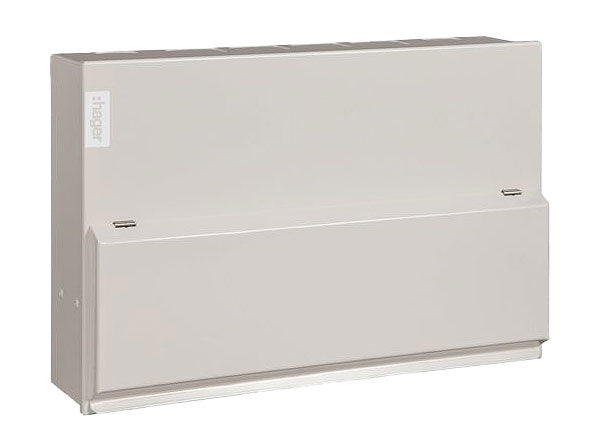

Hager VML910CURKPP Design 10 high integrity pre-populated consumer unit, 10-way fuse box includes 100A DP main switch, 2x 100A Type A RCDs, 8x MCB's (3x 6amp, 3x 16A, 2x 32A) and 2x blanks. 18th edition compliant and suitable for domestic households.
Installation is fast and simple with knockout cable entries available on the top, bottom and rear of the unit. A top mounted din rail provides generous space for easy wiring and installation.
- Number of ways: 10 usable ways
- Complete with: 100A DP main switch, 2x 100A Type A RCDs, 8x MCB's (3x 6amp, 3x 16A, 2x 32A) and 2x blanks
- Earth and neutral terminals
- Metal DIN rail assembly
- 18th edition compliant
- Busbar shroud
- Round knockouts (top, bottom and rear)
- Height: 246mm
- Width: 406mm
- Depth: 100mm
- Standards: BS EN 61439-3
- Warranty: 2 years
