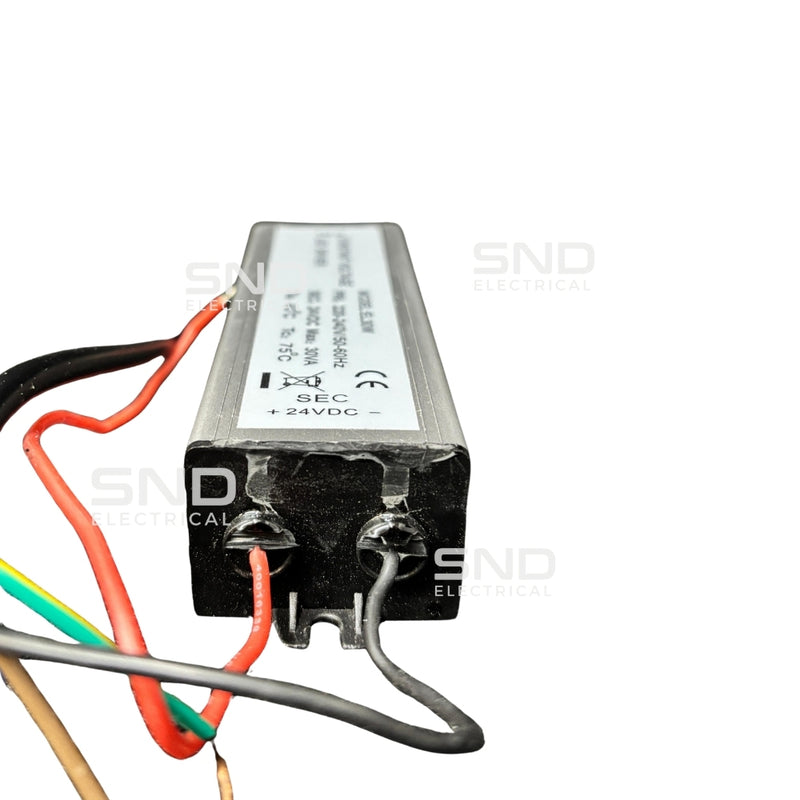

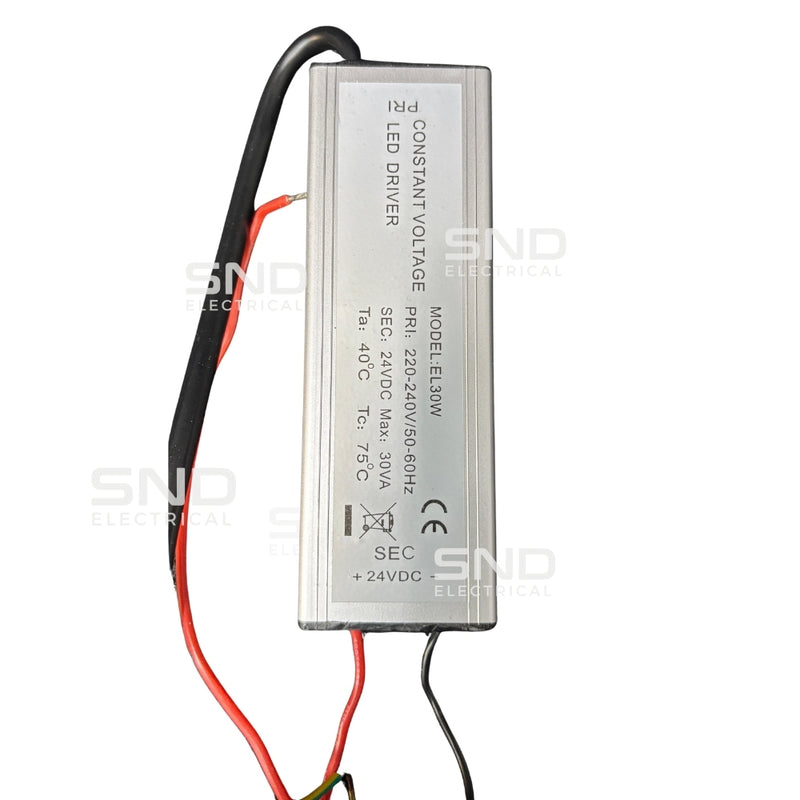

LED Driver Constant Voltage Power Supply Transformer IP65 DC 24V 30W EL30W

LED Driver Constant Voltage Power Supply Transformer IP65 DC 24V 30W EL30W

LED Driver Constant Voltage Power Supply Transformer IP65 DC 24V 30W EL30W

by SND Electrical
SKU EL30W
£15.85

IP65 Outdoor Constant Voltage LED Drivers

A range of single output constant voltage LED drivers, designed to operate and improve the reliability of LED lighting applications outdoors. With an IP65 rating, these LED drivers are resistant to ingress from water to the level of low pressure jets and totally protected against dust; making them suitable for a wide range of indoor and outdoor lighting solutions. Applications for these constant voltage LED drivers include: Residential LED lighting, display case lighting, LED down-lighting, LED backlighting, mood lighting and light sculptures.

Dimensions (Approx)

  • Length: 120 mm

  • Width: 40 mm

  • Height: 30 mm

Technical information:

Item Type LED Driver Transformer
Shell Material Aluminum alloy/PVC
Input Voltage AC 220~240V
Input Frequency Range 50/60Hz
Output Voltage DC 24V
Output Current 1.25A
Output Power 30W
Output Type 1 way
Dimensions (LxWxD) 120mm x 40mm x 30mm
IP Rating IP65
Power Supply Type Enclosed
Applications Indoor, Outdoor



The feature of Waterproof DC24V IP65 30W LED Driver Power Supply Transformer:

  • LED driver is designed to be enclosed in an aluminum alloy casing with rubber-sealed cables, achieving an IP65 waterproof protection rating.
  • Crafted from pure aluminum metal, the casing protects against collision shocks and lightning strikes.
  • The LED driver lighting transformer with an AC 220~240V input and DC 24V output 30 watts 1.25A at 50/60 Hz frequency.
  • The power supply provides safe electrical connections, converting home AC power to DC for a flicker-free lighting solution.
  • Suitable for LED strip lights LED light bulbs outdoor advertising light boards lighting projects wall washer lamps and underground lamps.

DC24V IP65 Universal Regulated Switching Power Supply LED Transformer Connection:

  • The LED driver will double the life of the LED Strip Lights and Light Bulbs. These LED drivers/transformers are suitable for all LED bulbs and also most LED strip lights and CCTV cameras and any other DC24V devices.

Applications:

  • This DC24V IP65 LED Transformer / Driver is used to power low voltage (24V) LED bulbs, strip lighting, CCTV camera, 3D printers and many other devices that require DC24V constant voltage power supply.
  • LED bulbs require a constant voltage to work properly. Sometimes a normal 24V transformer will work correctly with LED bulbs, but in some cases, the lifespan of the bulb will be reduced.

Protection:

  • Safe for operating, with the fuse for protection, Automatic short circuit, overload, over voltage, protection, over temperature and inrush current protection

Package Included

  • 1 x 24V 30W IP65 1.25A LED Power Supply Transformer

Please Noted:

  • This Power Supply Unit haven't included installation instruction, wiring cable, on/off switch, or screws.

Product Features:

  • Model: EL30W

  • Type: Constant Voltage LED Power Supply

  • Power Output: 30 Watts

  • Input Voltage: AC 100–240V, 50/60Hz

  • Output Voltage: DC 12V or DC 24V (model dependent – confirm before purchase)

  • Rated Current:

    • 12V version: 2.5A

    • 24V version: 1.25A

  • Power Factor: >0.95

  • Efficiency: >80%

  • IP Rating: IP20 (for indoor use only)
