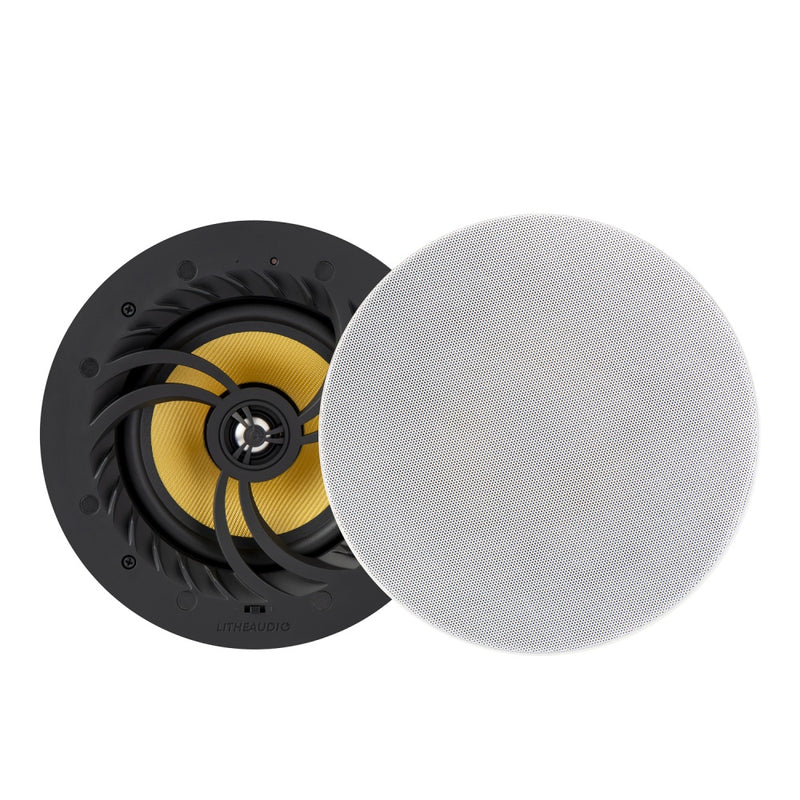

Lithe Audio Pro Series Ceiling Speaker (Pair)

The Lithe Audio Pro Series Wi-Fi Ceiling Speaker Pair is an all-in-one in-ceiling audio system combining amplification, Wi-Fi connectivity and high-quality speakers in a discreet ceiling-mounted solution. The pair consists of a Pro Series active Wi-Fi speaker and a passive speaker connected using speaker cable. Lithe Audio lists the pair as SKU 06510.

The system delivers 60W RMS power (2 × 30W) through a built-in Class D digital amplifier and supports both 2.4GHz and 5GHz Wi-Fi, as well as a wired Ethernet connection. It supports Apple AirPlay 2, Google Chromecast, Spotify Connect, Bluetooth and Alexa, providing a wide range of streaming and smart-home options.

High-resolution 192kHz/24-bit audio, a 6.5-inch woofer and 0.75-inch titanium tweeter provide detailed audio reproduction. The Pro Series can also be integrated into multi-room systems, with Lithe Audio supporting up to 30 Wi-Fi speakers for multi-room or party mode.

Key Features

• Pro Series Wi-Fi ceiling speaker pair
• 60W RMS total amplifier output
• Built-in Class D digital amplifier
• Active + passive speaker configuration
• Dual-band 2.4GHz / 5GHz Wi-Fi
• Ethernet connectivity
• Apple AirPlay 2 certified
• Google Chromecast certified
• Spotify Connect certified
• Bluetooth connectivity
• Works with Alexa
• 192kHz / 24-bit high-resolution audio
• Optical audio input
• DLNA/uPnP support
• NAS digital music storage access
• Control4 SDDP support
• Multi-room and party mode
• Supports up to 30 Wi-Fi speakers
• 6.5-inch woven glass fibre/polypropylene woofer
• 0.75-inch titanium tweeter
• Built-in amplification and connectivity
• Expandable hardware platform
• WiSA certified for compatible home cinema applications
• Can be powered via lighting circuit, plug or compatible PoE setup
• Designed for discreet in-ceiling installation

Specifications

• Product: Pro Series Wi-Fi Ceiling Speaker Pair
• SKU: 06510
• Configuration: Active + Passive
• RMS Power: 60W RMS (2 × 30W)
• Amplifier Type: Class D Digital
• Impedance: 8 Ohms nominal
• Frequency Response: 55Hz–20kHz ±3dB
• THD+N: <0.009%
• Sensitivity: 90dB (1W/1m)
• Audio Resolution: 192kHz / 24-bit
• Woofer: 6.5-inch woven glass fibre / polypropylene cone
• Tweeter: 0.75-inch titanium cone
• Wi-Fi: 2.4GHz / 5GHz
• Wi-Fi Standard: 802.11a/b/g/n/ac
• Apple AirPlay 2: Yes
• Google Chromecast: Yes
• Spotify Connect: Yes
• Bluetooth: Yes
• Alexa: Compatible
• Optical Input: Yes
• Ethernet: Input / Output
• DLNA/uPnP: Yes
• NAS Support: Yes
• Control4: SDDP
• Power Input: 100–240V AC, 50/60Hz, 2A
• Transformer Output: DC24V / 2.5A
• Grille Diameter: 230mm
• Ceiling Depth Required: 110mm
• Ceiling Cut-Out: 210mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Standby Power: 1.3W / 0.02A
• Connected Power: 1.5W / 0.03A
• Playing Music: 2.8W–10.5W / 0.03A–0.09A
• IP Rating: IP44 on bathroom models only

What's in the Box

• Pro Series Bluetooth & Wi-Fi Ceiling Speaker
• Passive speaker
• Power cord
• Speaker cable
• Instruction manua
