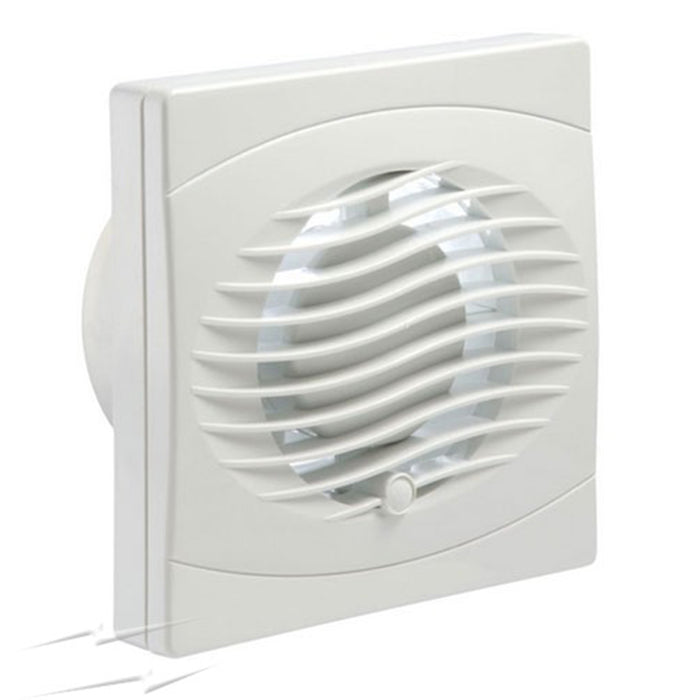

Designed for wall mounting only, for use in bathrooms and toilets. BVF100P has a built-in pull cord to enable fan to be turned on/off by hand. Quiet and efficient, the 100mm (4") series has an impressive extract rate of 85m3/hr, 23 liters per second. The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning. Power is provided by a single-phase induction motor with pre-oiled bearings for a long, maintenance- free life. 220-240V - AC. 50Hz . Single phase consuming 14 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.
Additional Information

Extraction Rate: 85 m3/hr
Voltage: 220V-240V

>>>>
