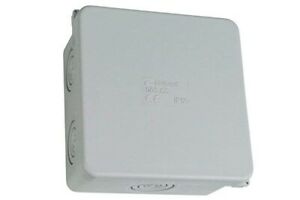

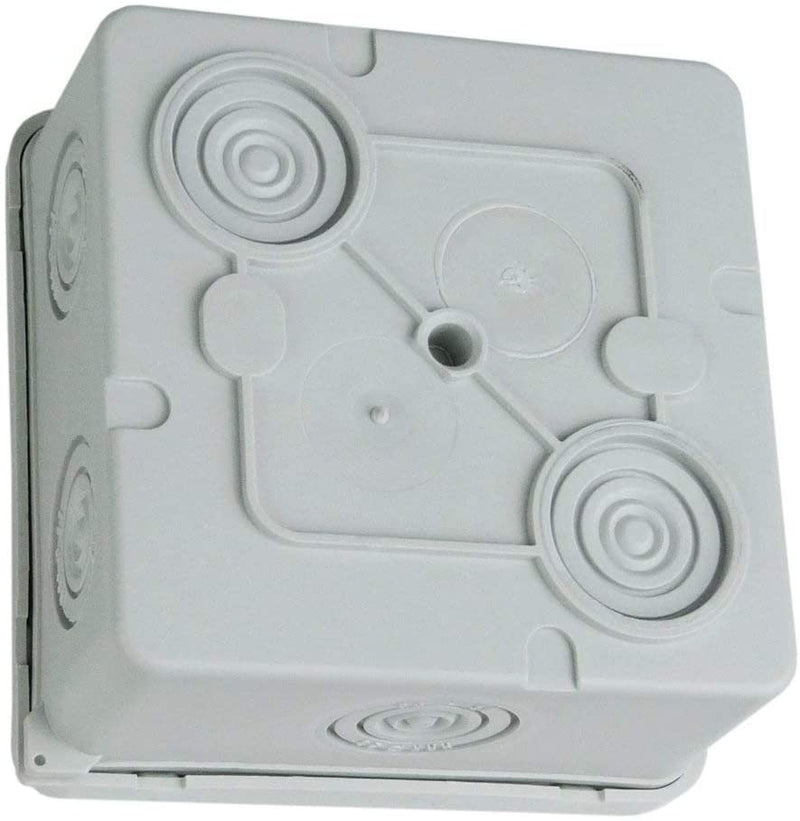

Marlanvil IP65 003.CS Junction Box

Input membranes with different diameters between PG9 and PG21.

Resistant to chemicals and deposits.

Impact resistance.

External tabs included for wall mounting.

Removable elastic sealing membranes for cable entry socket.

Halogen-free

About the Junction Box;

• Installation: surface-mounted; opening type in the housing: elastic sealing membranes; elastic sealing membranes; quantity: 6
• Maximum elastic sealing membranes sealing range: diameter 23 mm; elastic material sealing membranes: EPDM rubber
• Colour: grey RAL 7035; material: PVC; protection class: IP65
• Inner dimensions: A: 80 mm W: 80 mm C: 40 mm Height of base: 41 mm Lid height: 8 mm External dimensions: 85 x 85 x 40 mm
• Cable entry in base quantity: 2; cable entry in base sealing area: diameter 23 mm
