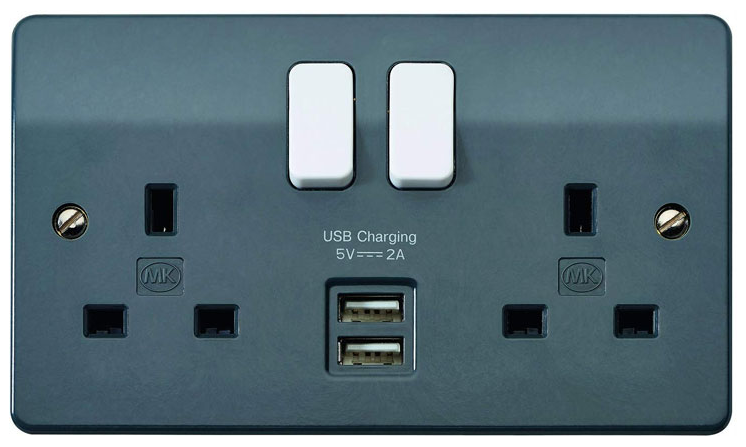

A range of socket outlets designed to provide optimal and efficient USB charging via two 5V outlets with a combined total of 2A charging.
Dual USB Charging Outlets offer end users easy access to power for charging a variety of devices such as smart phones, tablets and cameras whilst offering ease of installation and having all the advantageous design features of the Logic Plus™ range.
Integrated USB Features
• USB 2.0 and 3.0 compatible• Dynamic Device Recognition ensures that USB outlets provide optimum charging compatibility across a wide range of devices• Can charge a device at up to a full 2A. If only one device is connected to a USB Outlet the total output current of 2A is available from either outlet, if two devices are connected the total rated current of 2A is divided between the two outlets• Differing manufacturers devices can be charged simultaneously via the two USB Outlets• If the total charging current exceeds the rated level of 2A then the device will enter a current limiting safety mode, to maintain a steady charge • Electronically protected against an overload or short circuit on either USB outlet
Ease of Installation Benefits
• Printed terminal markings on grey rear mouldings for clearer identification
• Backed out and captive terminal screws
• Top access, angled terminals make wiring easier and quicker
Quality, Safety and Reliability as Standard
• Totally safe 3 pin operated safety shutter on 13A Socket Outlets
• Double pole switching
• 3mm minimum switch contact gap
• Additional electrical safety from neutral ‘make first’, ‘break last’ feature
• SELV isolation between mains and USB outlets for safety
• Switch contacts with silver contacts on both surfaces for good continuity
• Dual earthed for high integrity earthing applications
Standards and Approvals
Logic Plus™ 13A Socket outlets and 2A USB Charging outlets comply with
BS 5733 and IEC 61558-2-16.
EMC Compatability:
IEC 61000-6-1
IEC 61000-6-3
MOUNTING BOXES
25MM
862ZIC
35MM
886ZIC
(for extra wiring space)
BS 5733:2010
