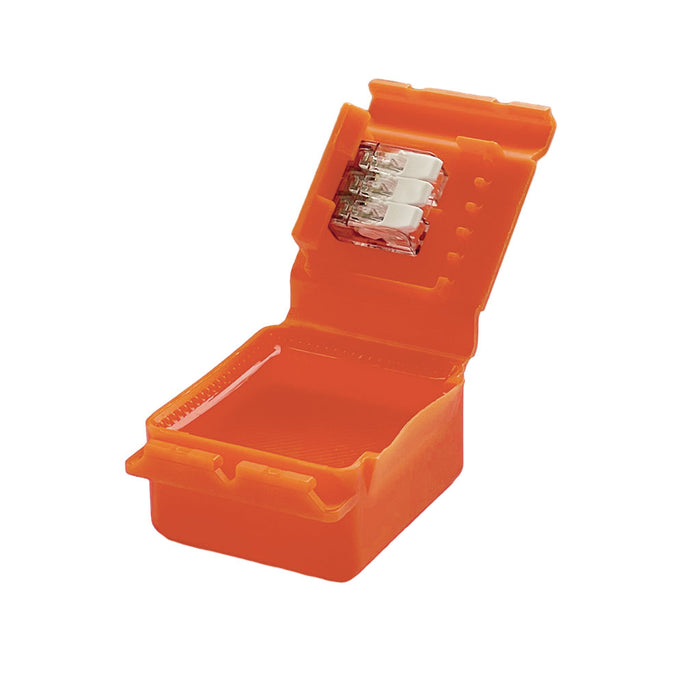

RayTech SUPERBLOCK3 Super Block Gel Box - 3x4mm

RayTech SUPERBLOCK3 Super Block Gel Box - 3x4mm

RayTech SUPERBLOCK3 Super Block Gel Box - 3x4mm

by SND Electrical
SKU SUPERBLOCK3
£8.99

Description

The new Gel Box with integrated lever connectors: ready, complete, submersible, and compact. For straight or branch connections of 3 or 5 rigid or flexible wires up to 4 mm. Pre-filled with conforming viscoelastic gel, not classified as hazardous. Reusable and without shelf-life.

  • External dimensions: 57 mm (W) × 47 mm (D) × 26 mm (H)

  • Internal dimensions: 36 mm × 34 mm × 21 mm

Technical Features

Electrical performance:
• CEI EN 50393 as applicable (testing under water head of the accessory installed in a box).
• Class 2 in accordance with CEI 64-8.
• CEI EN 60998-1 – CEI EN 60998-2
Gel: UL 94-HB
Working temperature: 90°
Installation temperature: -40°C / +50°C
Fully submersible
Can be used underground
Halogen-free Gel
UV resistant

Specifications

Dimensions: 57mm (W) × 47mm (D) × 26mm (H)
Protection Rating: IP68
Material: Gel UL 94-HB
Working Temperature: 90°C
Installation Temperature: -40°C to +50°C
Submersible: Fully submersible
Usage: Can be used underground
Gel Type: Halogen-free
UV Resistance: UV resistant
Installation: Tool-less
Power-Up: Can be powered immediately
Accessibility: Always re-enterable
