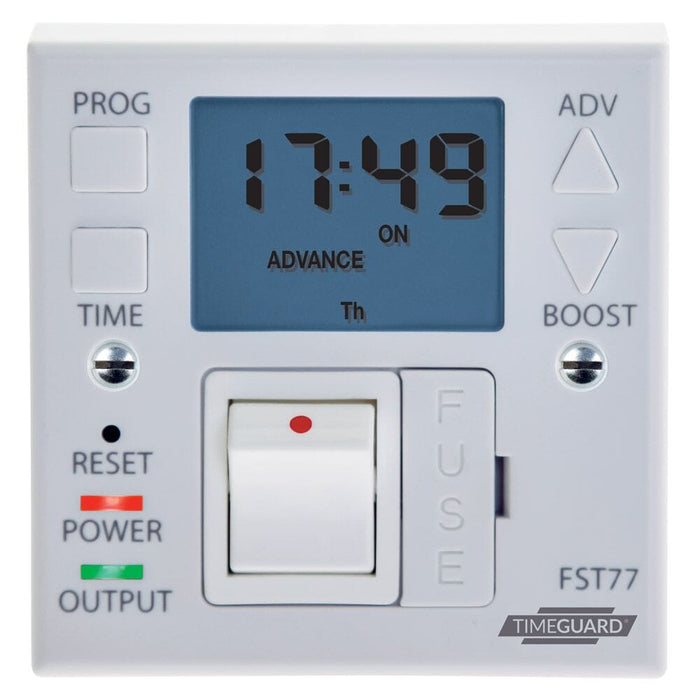

Timeguard’s new look Fused Spur Timeswitches with easy viewing display, optional 1 or 2 hour boost facility and automatic Summer/Winter time changeover. Clearly delivering the tried and trusted features you expect from the SupplyMaster range.

  • Up to 4 ON and OFF programmes available (5 day plus 2 or 7 day programmes) giving up to 28 ON and OFF programmes per week.
  • Suitable for use with up to 3kW immersion heaters.
  • Switches the following lighting loads: 750W incandescent or halogen lighting, 500W fluorescent lighting, 100W compact fluorescent lighting (cfl’s) and 200W LED lighting. Not suitable for discharge lighting.
  • Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
  • Permanent OFF and timed outputs available.
  • Easy view 24 hour digital clock/timer display.
  • Optional 1 or 2 hour boost facility.
  • Automatic summer/winter time changeover.
  • Self-cancelling override.
  • Shortest switching time 1 minute.
  • Programme advance and review options. BS1362 fuse replaceable from front.
  • Double pole switch for ease of control.
  • Integral memory back up battery retains programmes in event of power failure.
  • Ideal for replacing single gang connection unit or fixed appliance outlets.
  • Fits a single gang wall box min. 25mm deep.
Timer Mode 7 Day
Setting Type Digital
Operating Voltage 230V AC
Switch Rating 230V AC 13A Resistive (3kW)
Operating Temperature 0ºC to 40ºC
Battery Back Up 4 Weeks rechargeable
EC Directives Conforms to Latest Directives
Dimensions (mm) Width 85, Height 85, Depth 43

Note: Product not suitable for discharge lighting.

>>>>
