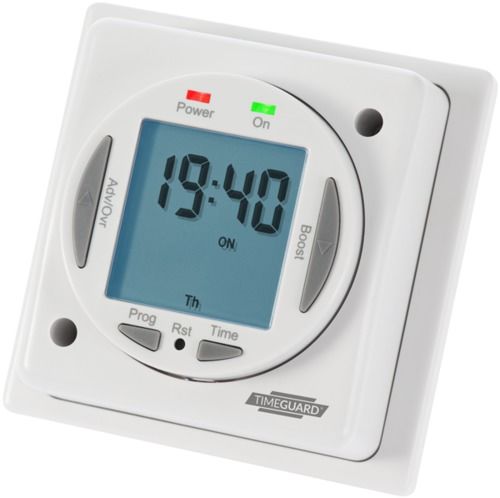

Introducing the New range of Compact Timeswitches from Timeguard!

  • 16(4)A load rating.
  • 4 ON/4 OFF easy-set programme periods per day, 28 ON/28 OFF programmes per week.
  • Shortest switching time 1 minute.
  • Extra large ‘Easy View’ screen with blue LED backlighting.
  • Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
  • Large easy push programme buttons.
  • Self-cancelling override button to next programme change.
  • Optional 1 and 2 hour boost button.
  • Automatic Summer/Winter changeover.
  • 720 hours rechargeable memory back-up.
  • Fits a standard flush or surface mount box min. 32mm deep.
Timer Mode 24 Hour/7 Day
Setting Type Digital
Operating Voltage 230V AC
Switch Rating 230V AC 16A Resistive (3.68kW), Inductive 4A
Stand-alone LED Rating 100W
Operating Temperature 0°C to 40ºC
Battery 720 Hours Rechargeable
Cable Connection 1.5 – 2.5mm2 Flexible Cable
EC Directives Conforms to Latest Directives
Dimensions (mm) Height 92, Width 92, Depth 59

>>>>
