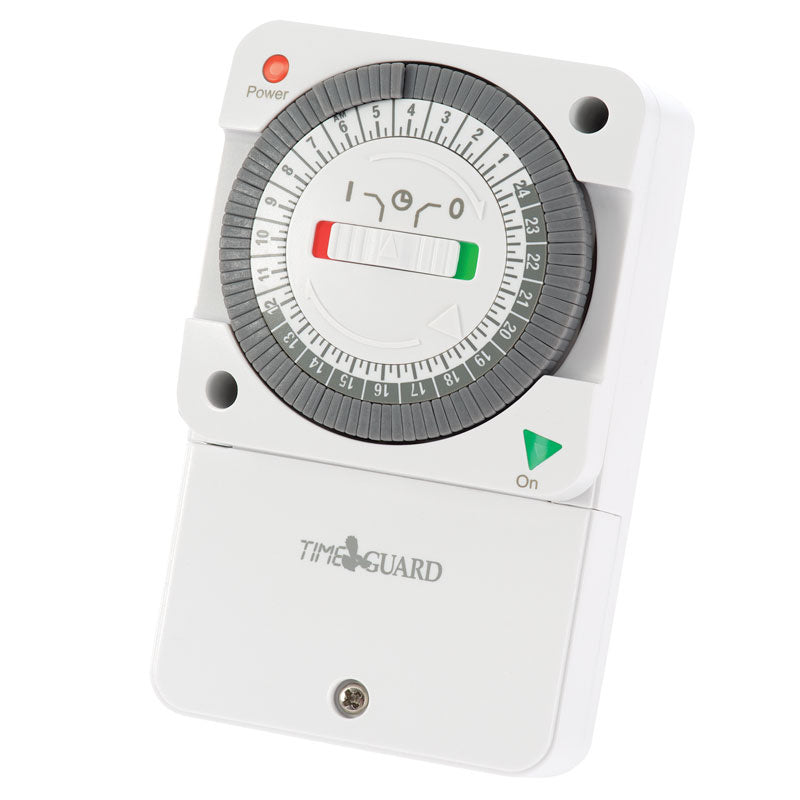

Our new slimline General Purpose Timeswitches offer total control.

  • 16(8)A load rating.
  • 96 quick-set segments for up to 48 ON/48 OFF programmes.
  • Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting/100W compact fluorescent lighting (cfl’s). Not suitable for discharge lighting.
  • Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
  • Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.
  • Switches ON and OFF at preset times.
  • Easy to use captive segment dial.
  • Permanent ON/OFF control.
  • Voltage free contacts.
Timer Mode 24 Hour
Setting Type Segment
Operating Voltage 230V AC
Switch Rating 230V AC 16A Resistive (3.68kW), Inductive 8A
Stand-alone LED Rating 100W
Operating Temperature 0°C to 40ºC
Cable Connection 1.5 – 2.5mm2 Flexible Cable
EC Directives Conforms to Latest Directives
Dimensions (mm) Height 120, Width 74, Depth 47

>>>>
