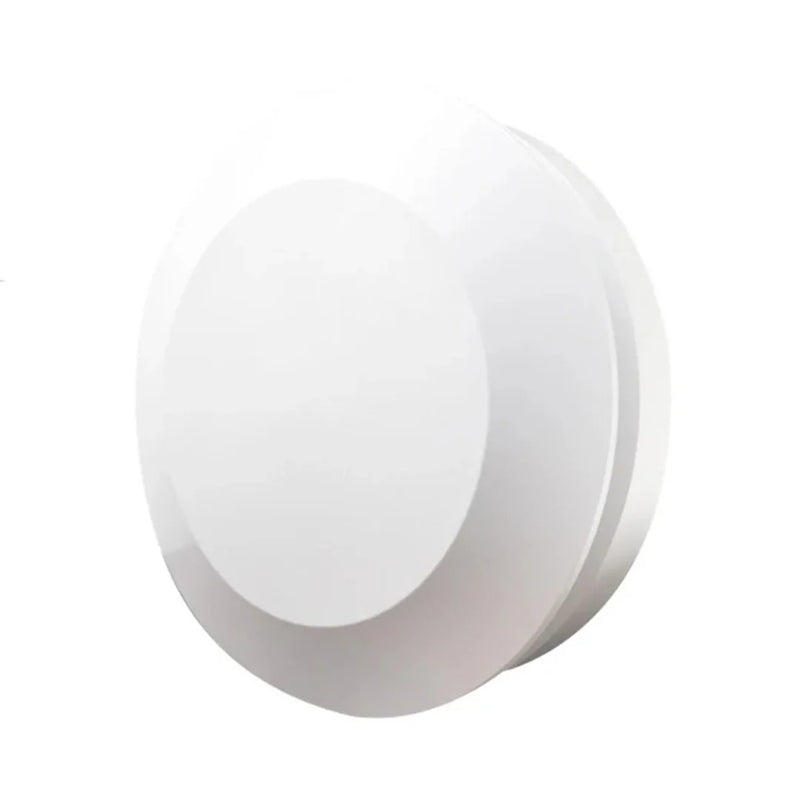

Vent-Axia Lo-Carbon PureAir Cleanse 100 HT (416841)

The Lo-Carbon PureAir Cleanse 100 HT is a decentralised mechanical extract ventilation (dMEV) fan designed for continuous, near-silent operation in residential properties. Built to comply with Approved Document F 2021 Building Regulations, it delivers whole-house ventilation rates without compromising on noise levels. An integrated air quality sensor detects volatile organic compounds (VOCs) and triggers a proportionate boost to clear pollutants automatically. With an IPX5 rating and flexible mounting options, it is suitable for all bathroom zones including Zone 1, and is approved for use in PAS 2035 energy efficiency retrofit projects.

Key Features

• Continuously Running dMEV Fan: Provides constant background ventilation in line with Approved Document F 2021 Building Regulations
• Air Quality Sensor: Detects total volatile organic compounds (VOCs) and triggers a proportionate boost to extract pollutants and odours faster

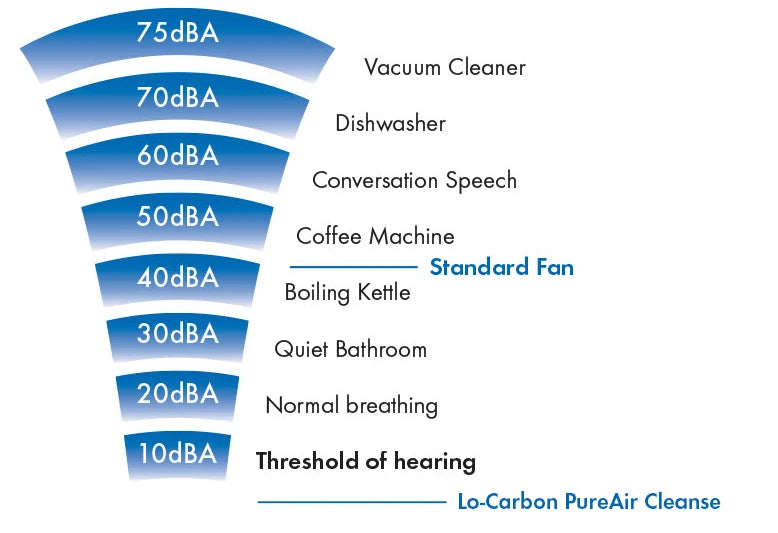

• Near Silent Operation: Independently tested sound levels as low as 7.4 dB(A) using a silent mixed flow impeller
• IPX5 Rated: Suitable for wall and ceiling mounting in Zones 1, 2 and 3
• Low Ceiling Void: Only 56mm depth required with 100mm spigot
• Fully Adjustable Variable Control Platform: Airflow fully configurable, allowing whole-house ventilation rates with fewer fans
• Comfort Control Option: Patented delayed boost start of up to 20 minutes; boost also suppressed if light turns on and off within three minutes
• Humidity Sensor: Proportional speed increase up to 85% RH before boost activates, reducing nuisance tripping
• Back Pressure Detection: Optional boost activation when system pressure increases due to external wind conditions
• Meets UBA Air Quality Standard: Certified to the German Environment Agency standard for indoor air quality
• PAS 2035 Compatible: Suitable for energy efficiency retrofit projects
• Social Housing Approved: Designed and tested to meet social housing installation requirements


Technical Specification

• Ventilation Type: Decentralised Mechanical Extract Ventilation (dMEV)
• Model Range: Lo-Carbon PureAir Cleanse 100 HT
• Spigot Size: 100mm
• Ceiling Void Depth: 56mm minimum
• Sound Level: As low as 7.4 dB(A) independently tested
• IP Rating: IPX5
• Installation Zones: Zone 1, 2 and 3 (wall and ceiling)
• Impeller Type: Silent mixed flow
• Humidity Boost Threshold: Proportional increase up to 85% RH before boost activates
• Comfort Control Delay: Up to 20 minutes delayed boost start
• Airflow Adjustment: Fully variable control platform
• Minimum Ventilation Rate: Higher of 0.3 L/s per m² of internal floor area or rate determined by number of bedrooms
• Compliance: Approved Document F 2021 Building Regulations
• Air Quality Standard: UBA certified
• Retrofit Suitability: PAS 2035 compatible
• Sector: Social Housing
