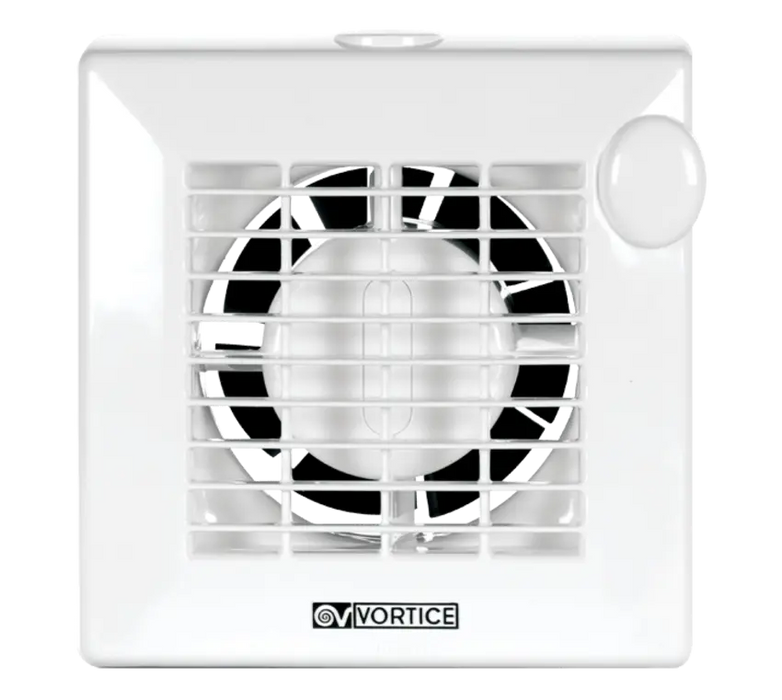

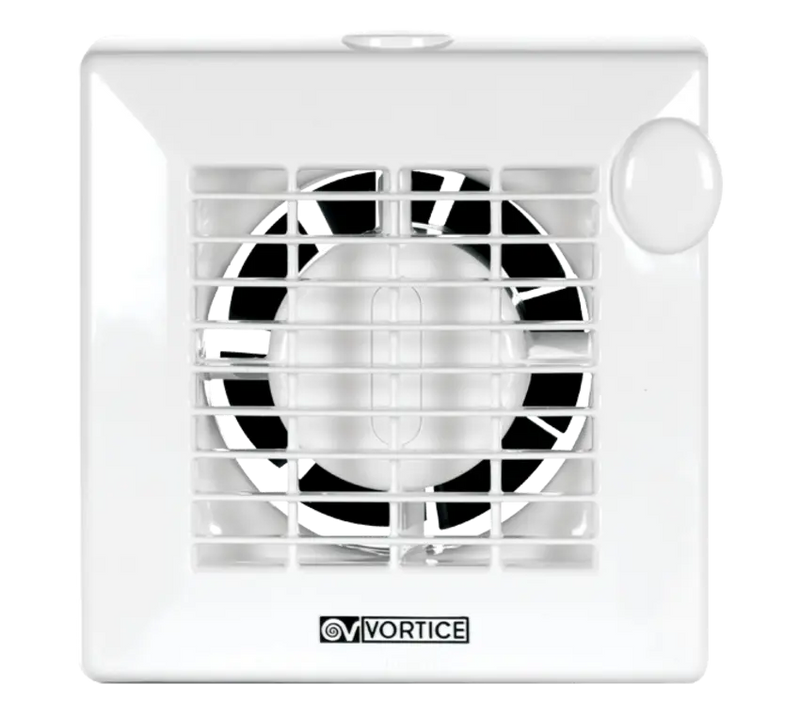

Vortice M100/4" Pullcord 11641 Extractor Fan for Bathrooms Pullcord

Vortice M100/4" Pullcord 11641 Extractor Fan for Bathrooms Pullcord

Vortice M100/4" Pullcord 11641 Extractor Fan for Bathrooms Pullcord

by Vortice
SKU M100/4" - 11641
£17.85

Axial Bathroom Fan with Pullcord shutters.

Description:

  • For intermittent extract of bathrooms, shower rooms, en suites, w.c’s
  • Suitable for wall or window installation
  • IPX4 splash proof protection on all models
  • Automatic shutter models can be window fitted by use of the Punto Window Kit
  • The standard models can be speed regulated
  • Not suitable for ducting up to roof tile vents
  • Not suitable for flat ducting
  • High airflow rate, low operating noise level and low power consumption due to the wing profile blade and motor support

Technical Data Sheet

  • Frequency (Hz) - 50
  • Insulation class - II°
  • IP - X4
  • Max absorbed current (A) - 0,1
  • Max absorbed power (W) - 18
  • Max ambient temperature for continuous operation (°C) - 50
  • Ø Discharge hole (mm) - 99
  • Voltage (V) - 220-240
  • Weight (Kg) - 0,6
  • Max airflow (l/s) - 25
  • Max airflow (m³/h) - 90
  • Max pressure (mmH2O) - 3
  • Max pressure (Pa) - 29
  • RPM - 2300
  • Sound pressure Lp [dB (A)] at 3 m - 159
