Remarks:
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
- 8 M20 threaded membrane entries
- 4 captive cover screws
- including mounting clip
- including terminal block 5-poles, 4mm²
Fixing:
With mounting clip or 4 internal openings outside of the sealing area
Material | Polypropylene |
Material sealing gasket | TPE |
Temp. range min | -30 °C |
Temp. range max | 100 °C |
Temperatures during install. | -5 °C - 60 °C |
Protection class | IP66 / IP67 |
Glow wire test | 750 °C |
Voltage | 400 V |
Rated current / A (Terminal) | 32 A |
Rated cross section | 4 mm² |
Terminals/poles | 5-pole, 4,0 mm² |
Fixing | 4 internal openings |
Ø cable diameter min | 3 mm |
Ø cable diameter max | 12 mm |
External dimensions LxWxH | 85 x 85 x 51mm |
Type of cable gland | M 20 x 1,5 |
Using for cable gland | |
Product Color | RAL 7035 |
WISKA-Order no. | 10060401 |

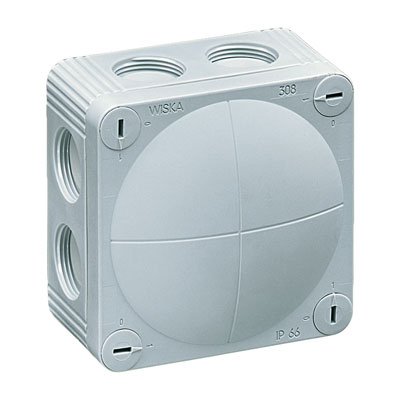

Type | COMBI 308/5 LG |
Packing unit | 5 |
ETIM-Classification | EC002600 |
