Remarks:
IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland
Equipment:
- 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
- 4 knockouts in the bottom 2x M25/M32; 2x M20/M25
- 4 captive cover screws
- including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
- including terminal block 5-poles, 10mm²
Mounting:
4 internal openings outside of the sealing area
| Material |
Polypropylene |
| Material sealing gasket |
TPE |
| Temp. range min |
-30 °C |
| Temp. range max |
100 °C |
| Temperatures during install. |
-5 °C - 60 °C |
| Protection class |
IP66 / IP67 |
| Glow wire test |
750 °C |
| Voltage |
690 V |
| Rated current / A (Terminal) |
57 A |
| Rated cross section |
10 mm² |
| Terminals/poles |
5-pole, 10,0 mm² |
| Fixing |
4 internal openings |
| Ø cable diameter min |
6 mm |
| Ø cable diameter max |
21 mm |
| External dimensions LxWxH |
140 x 140 x 82mm |
| Using for cable gland |
 |
| Product Color |
RAL 7035 |
| WISKA-Order no. |
10060703 |
| Type |

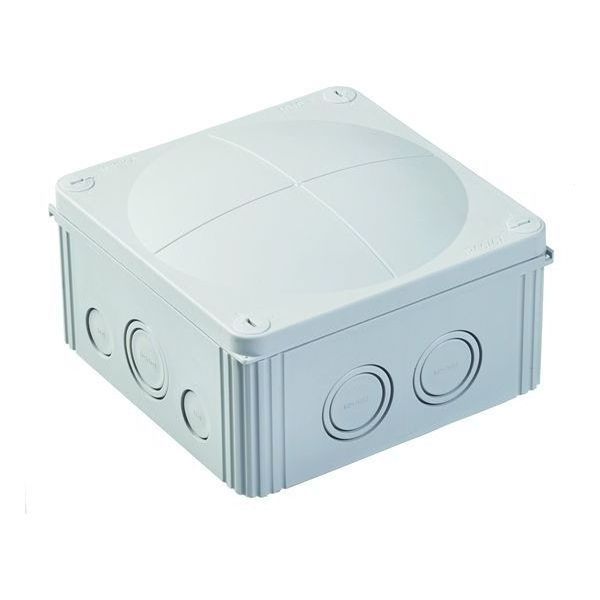

COMBI 1010/5 LG |
| Packing unit |
2 |
| ETIM-Classification |
EC002600 |
