Remarks:

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland

Equipment:
- 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
- 4 knockouts in the bottom 2x M25/M32; 2x M20/M25
- 4 captive cover screws
- including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
- including terminal block 5-poles, 10mm²

Mounting:
4 internal openings outside of the sealing area

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated current / A (Terminal) 57 A
Rated cross section 10 mm²
Terminals/poles 5-pole, 10,0 mm²
Fixing 4 internal openings
Ø cable diameter min 6 mm
Ø cable diameter max 21 mm
External dimensions LxWxH 140 x 140 x 82mm
Using for cable gland Using for cable gland
Product Color RAL 9005
WISKA-Order no. 10062215

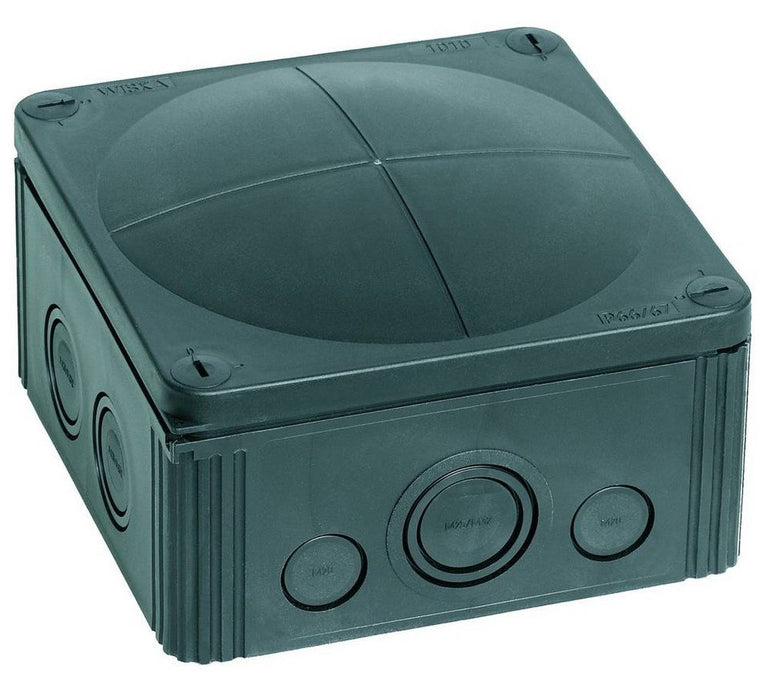

Type COMBI 1010/5 BK
Packing unit 2
ETIM-Classification EC002600

>>>>
