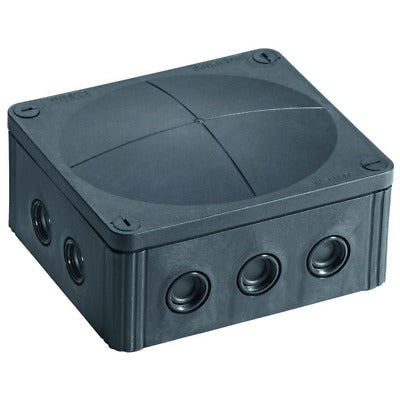

Wiska 10101463 COMBI 1210/5 BK Junction Box

by Wiska
£18.80
Original price £18.80 - Original price £18.80
Original price
£18.80 - £18.80
Current price £18.80
Brand: Wiska
SKU 10101463

Remarks:

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 10 M20 threaded membrane entries and M25 knockouts
- 4 membrane cable entries through rear
- 4 captive cover screws
- inclusive terminal block 5-poles, 10mm²

Mounting:
- 4 internal openings outside of the sealing area

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated current / A (Terminal) 57 A
Rated cross section 10 mm²
Terminals/poles 5-pole, 10,0 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 160 x 140 x 81mm
Using for cable gland Using for cable gland
Product Color RAL 9005
WISKA-Order no. 10101463
Type COMBI 1210/5 BK
Packing unit 2
ETIM-Classification EC002600
