Remarks:

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
- 2 membrane cable entries through rear
- 4 captive cover screws
- including mounting clip
- with terminal block 5-poles, 4mm²

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated current / A (Terminal) 32 A
Rated cross section 4 mm²
Terminals/poles 5-pole, 4,0 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 95 x 95 x 60mm
Type of cable gland M 20 x 1,5, M 25 x 1,5
Using for cable gland Using for cable gland
Product Color RAL 7035
WISKA-Order no. 10105596

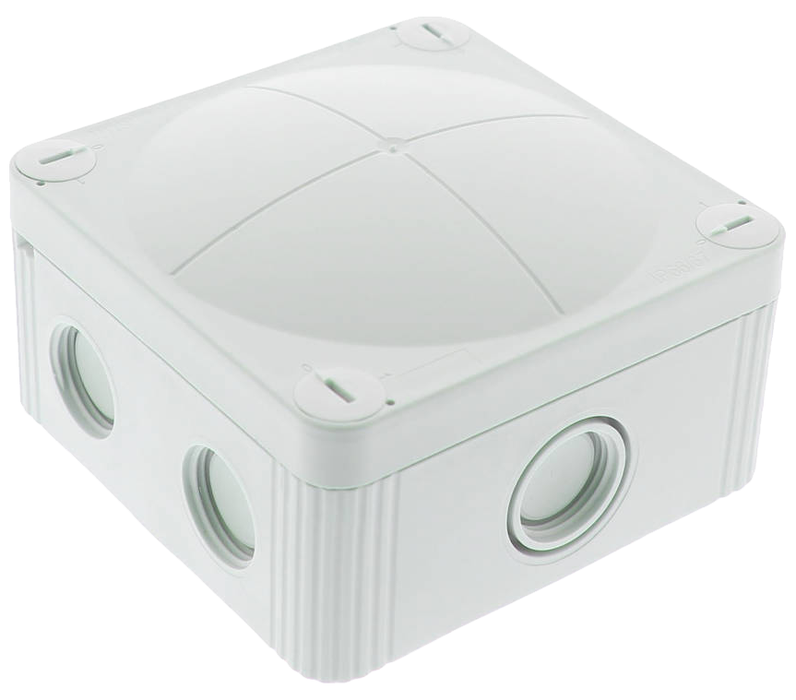

Type COMBI 407/5 LG
Packing unit 5
ETIM-Classification EC002600

>>>>
